Home >> BMW >> 2008 >> 135i Convertible (E88) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F33 >> Fuse F33 (As of 09/07 With Petrol Engine)

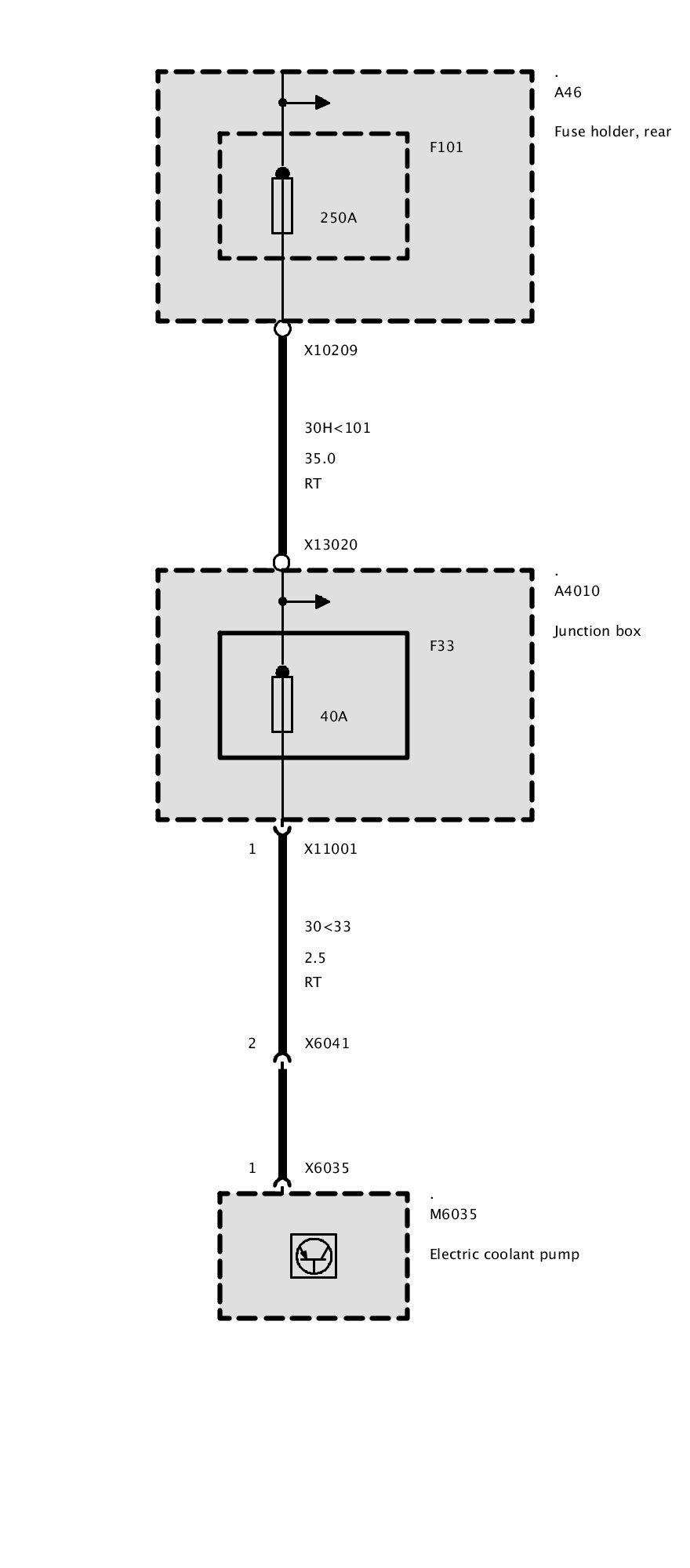

Fuse F33 (As of 09/07 With Petrol Engine)



Fuse F33 (As of 09/07)
