Fuse F31 ((As of 09/05 Up to 03/07) With (RAD Radio or RAD2-BO User Interface))

Fuse F31 ((As of 09/05 Up to 03/07) With (Rad Radio or RAD2-Bo User Interface))

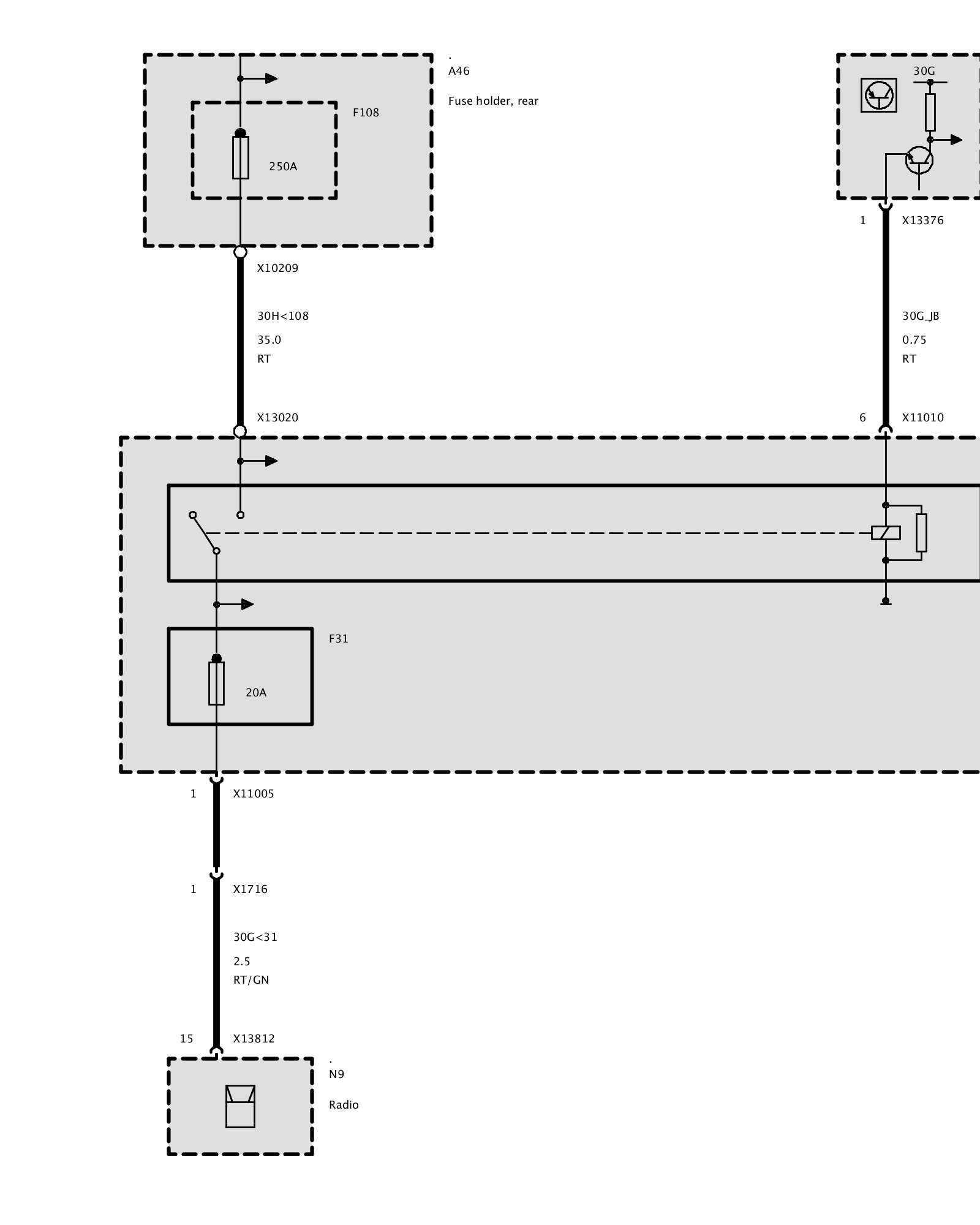

Part 1:

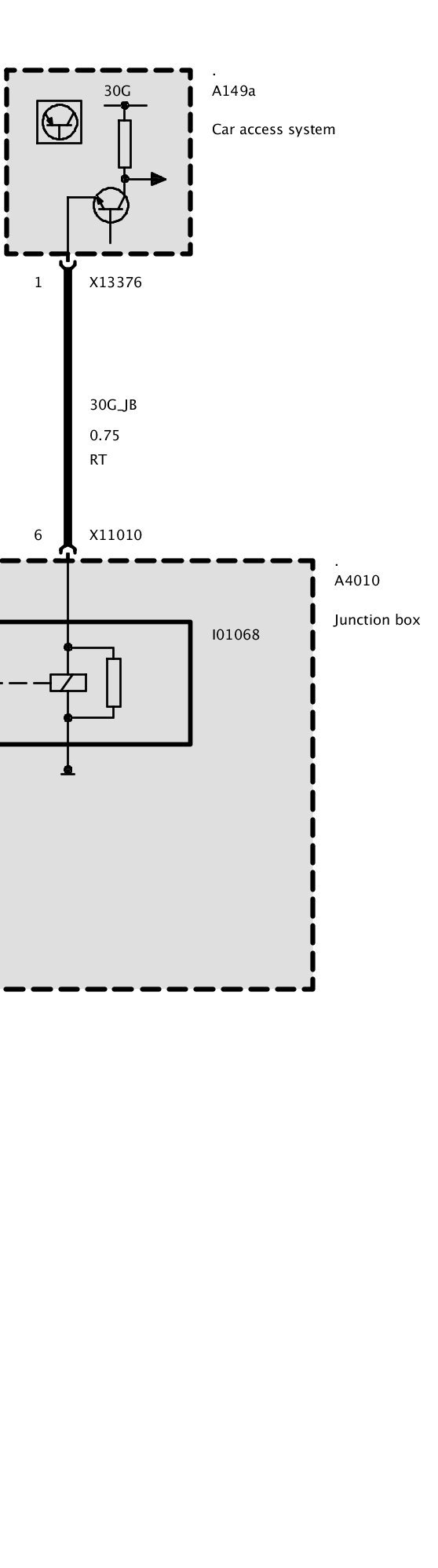

Part 2:
