Home >> BMW >> 2008 >> 135i Convertible (E88) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F31 >> Fuse F31 ((As of 09/05 Up to 03/07) With (M-ASK-BO User Interface or CCC-BO User Interface))

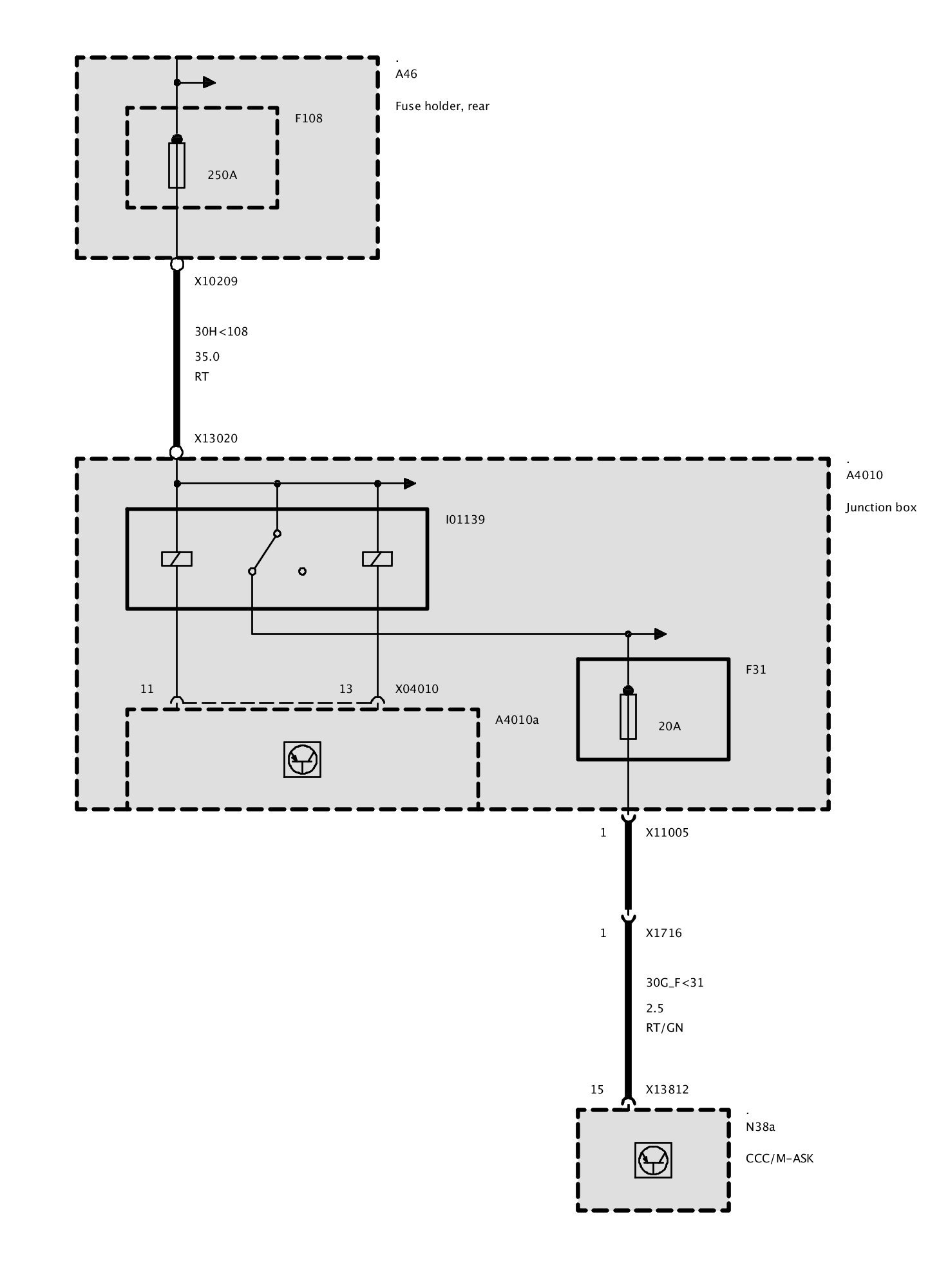

Fuse F31 ((As of 09/05 Up to 03/07) With (M-ASK-BO User Interface or CCC-BO User Interface))



Fuse F31 ((As of 09/05 Up to 03/07) With (M-Ask-Bo User Interface or CCC-Bo User Interface))
