Home >> BMW >> 2008 >> 135i Convertible (E88) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse Block >> A4010a Junction Box, Electronics

A4010a Junction Box, Electronics



A4010A Junction Box, Electronics

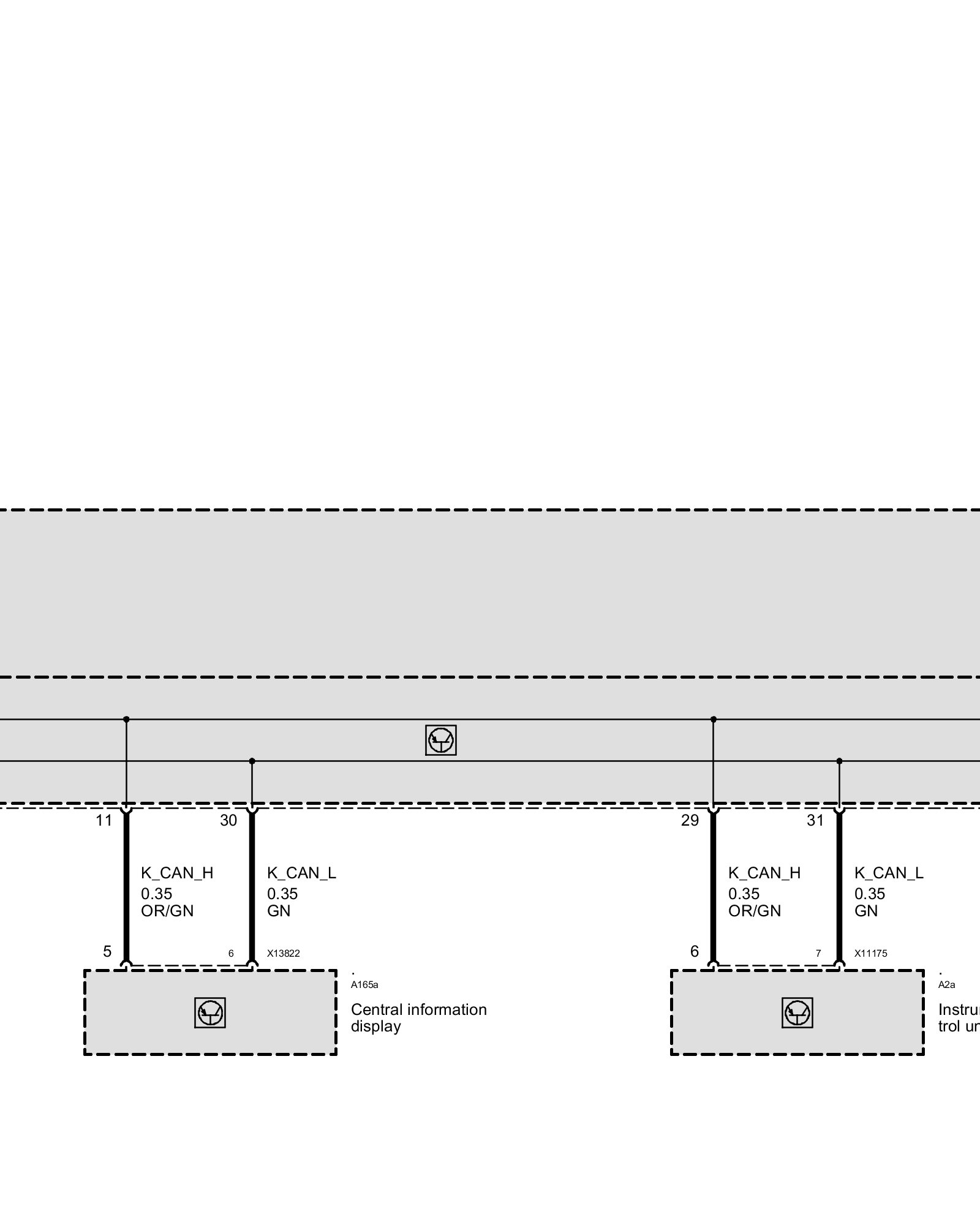

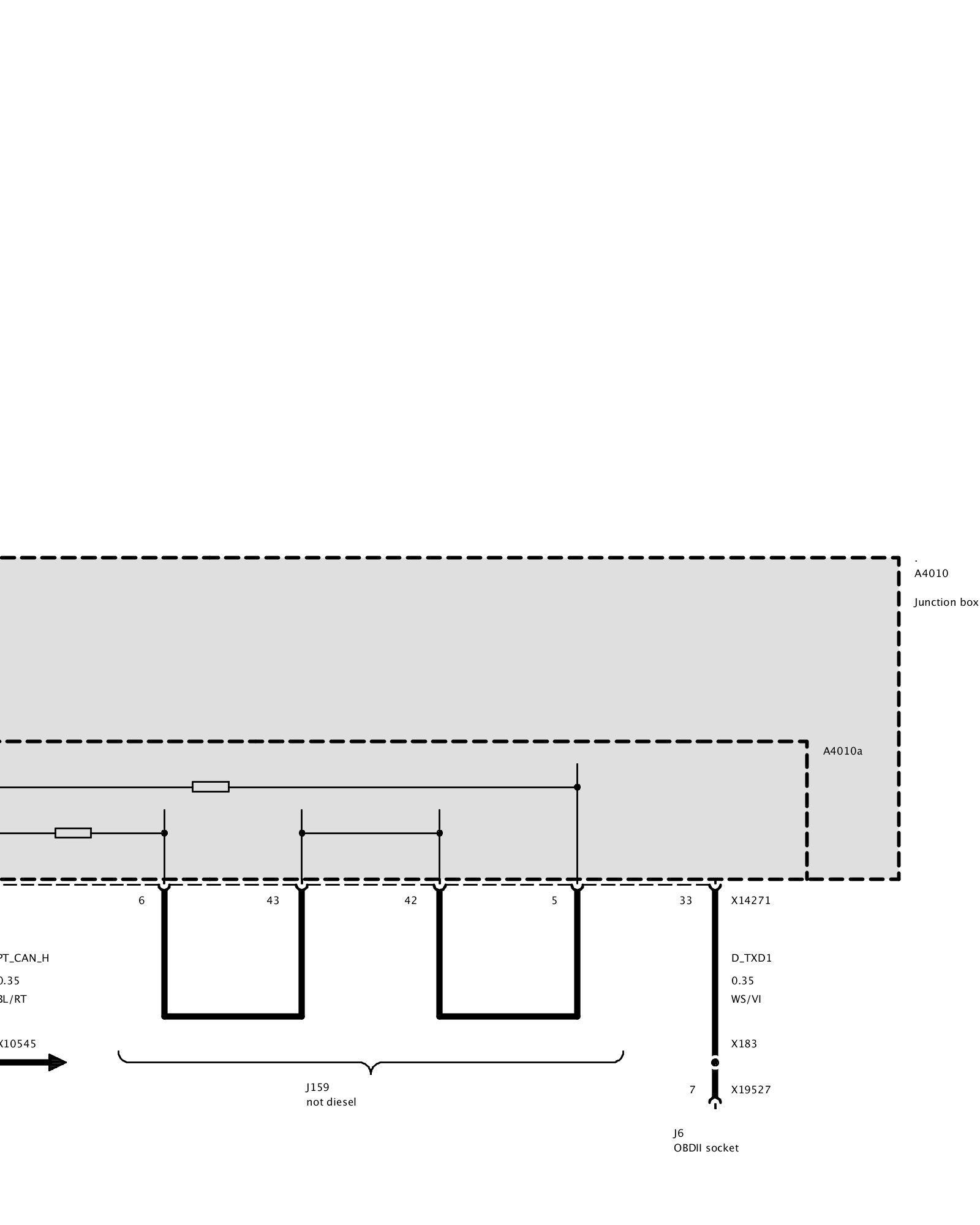

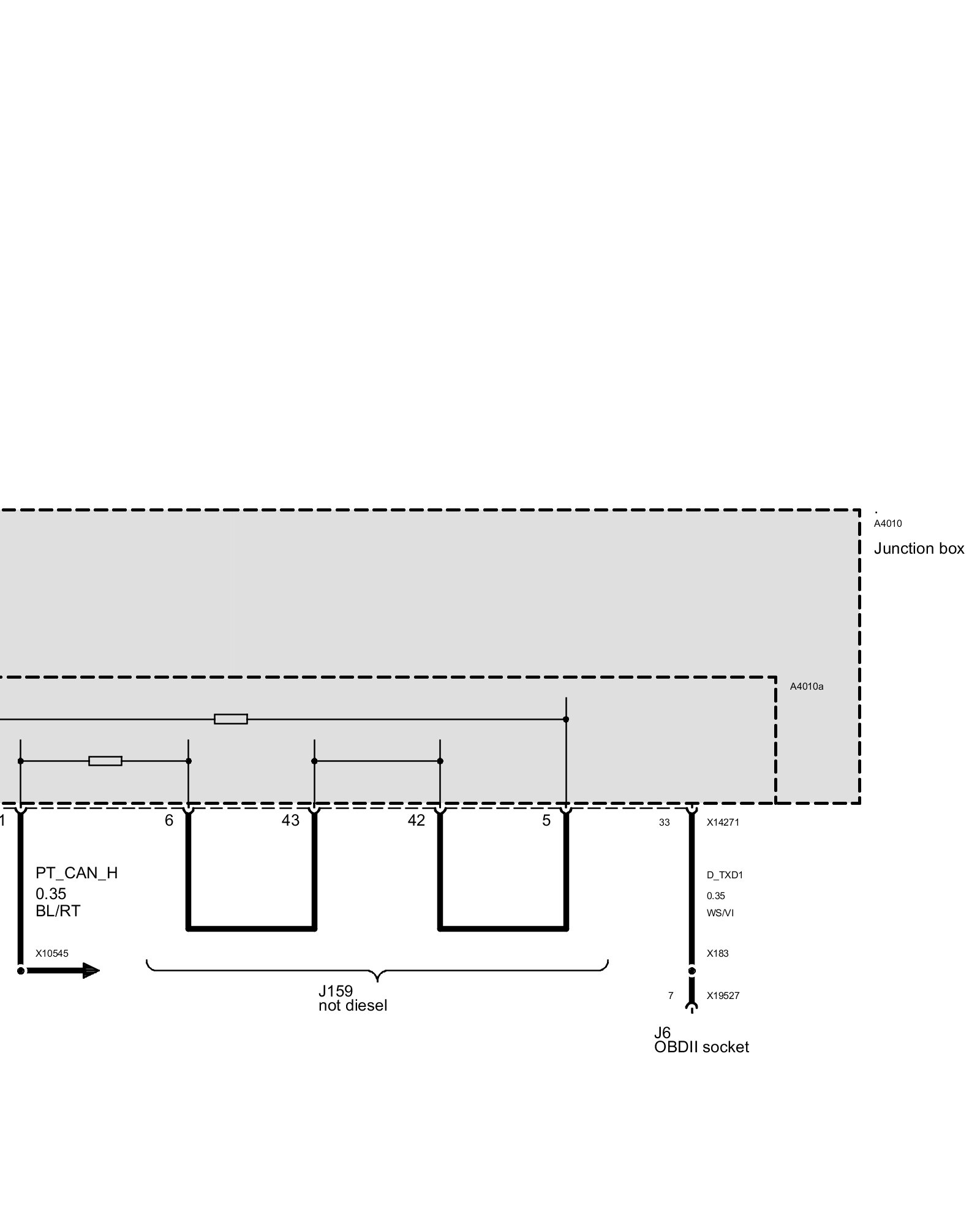

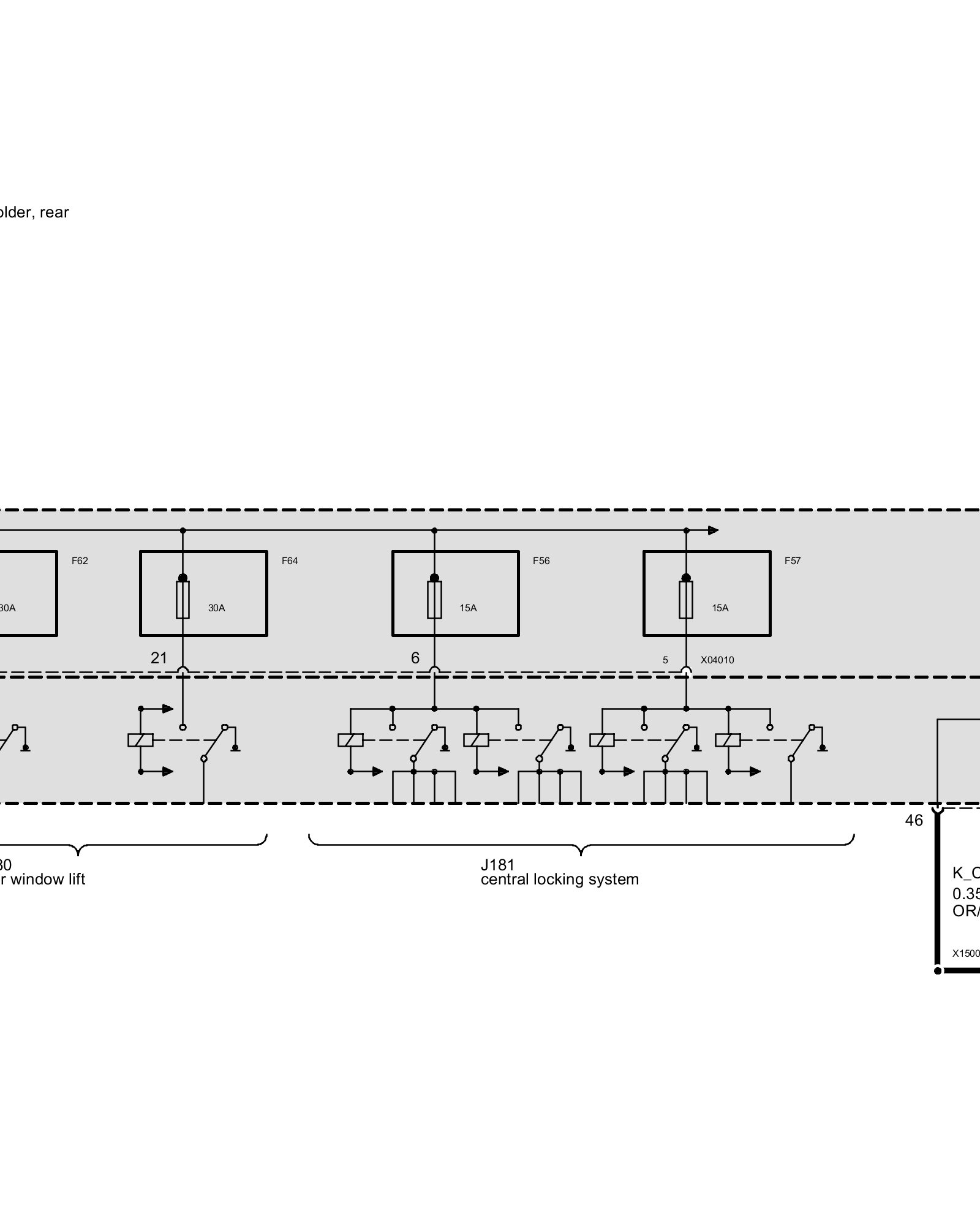

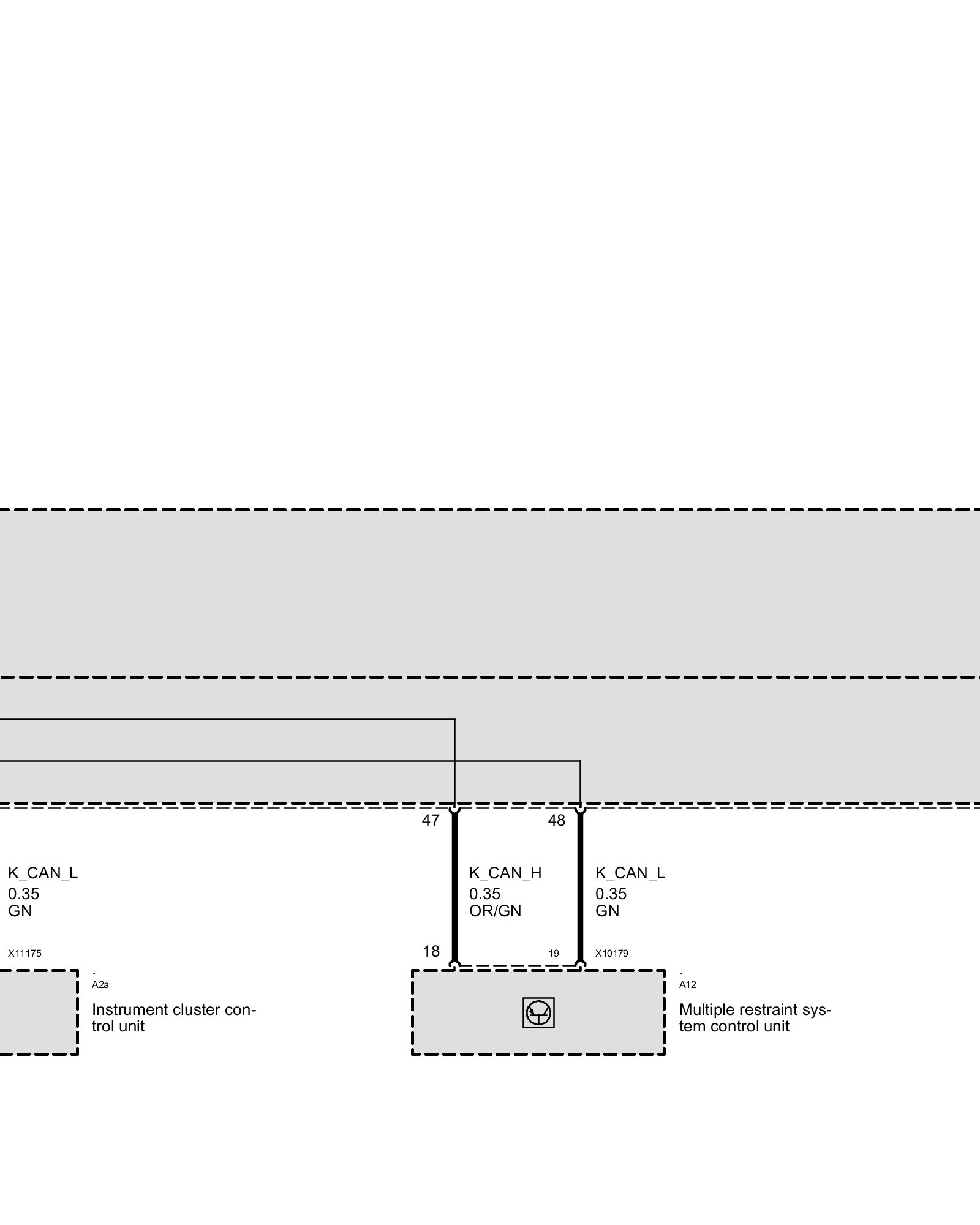

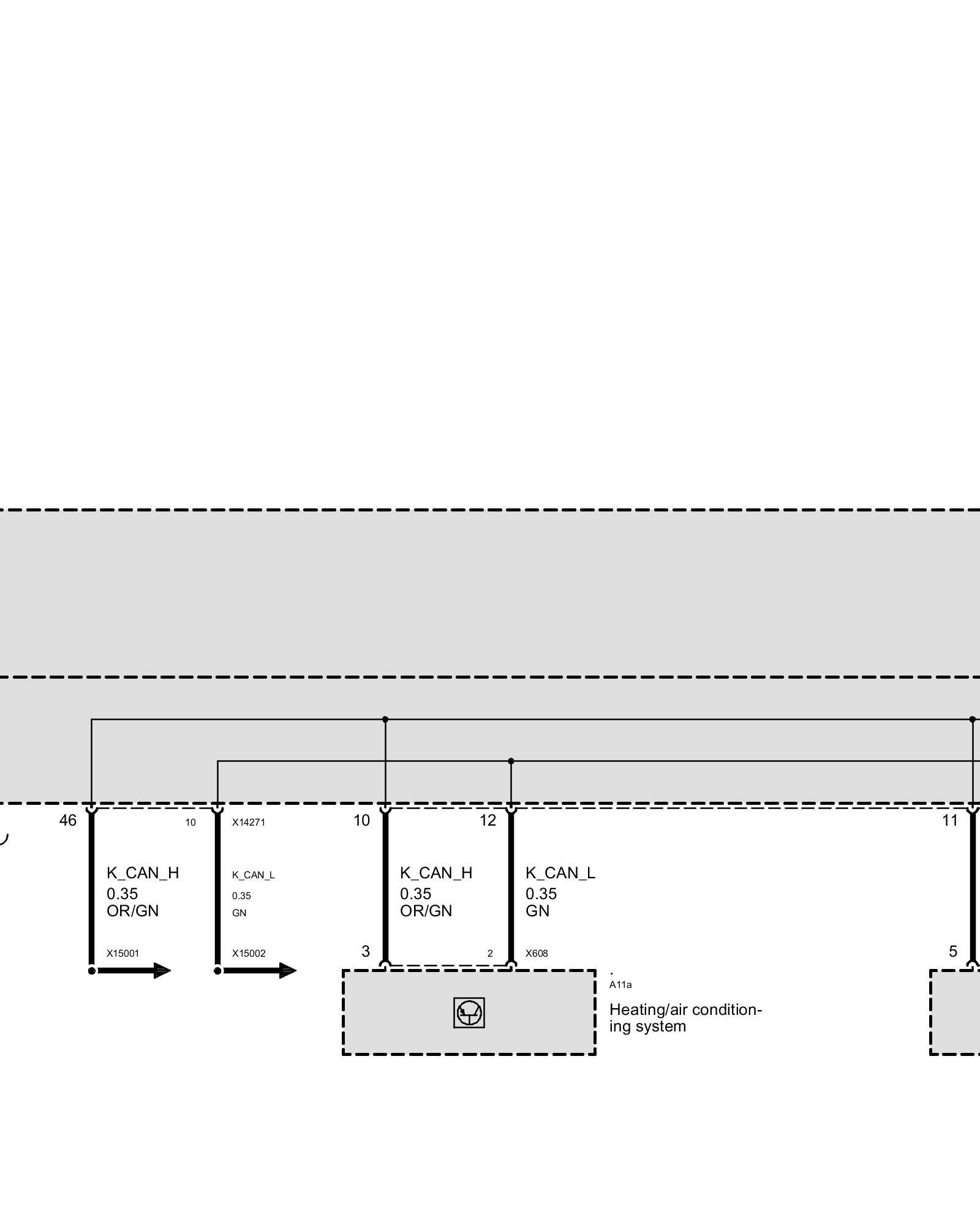

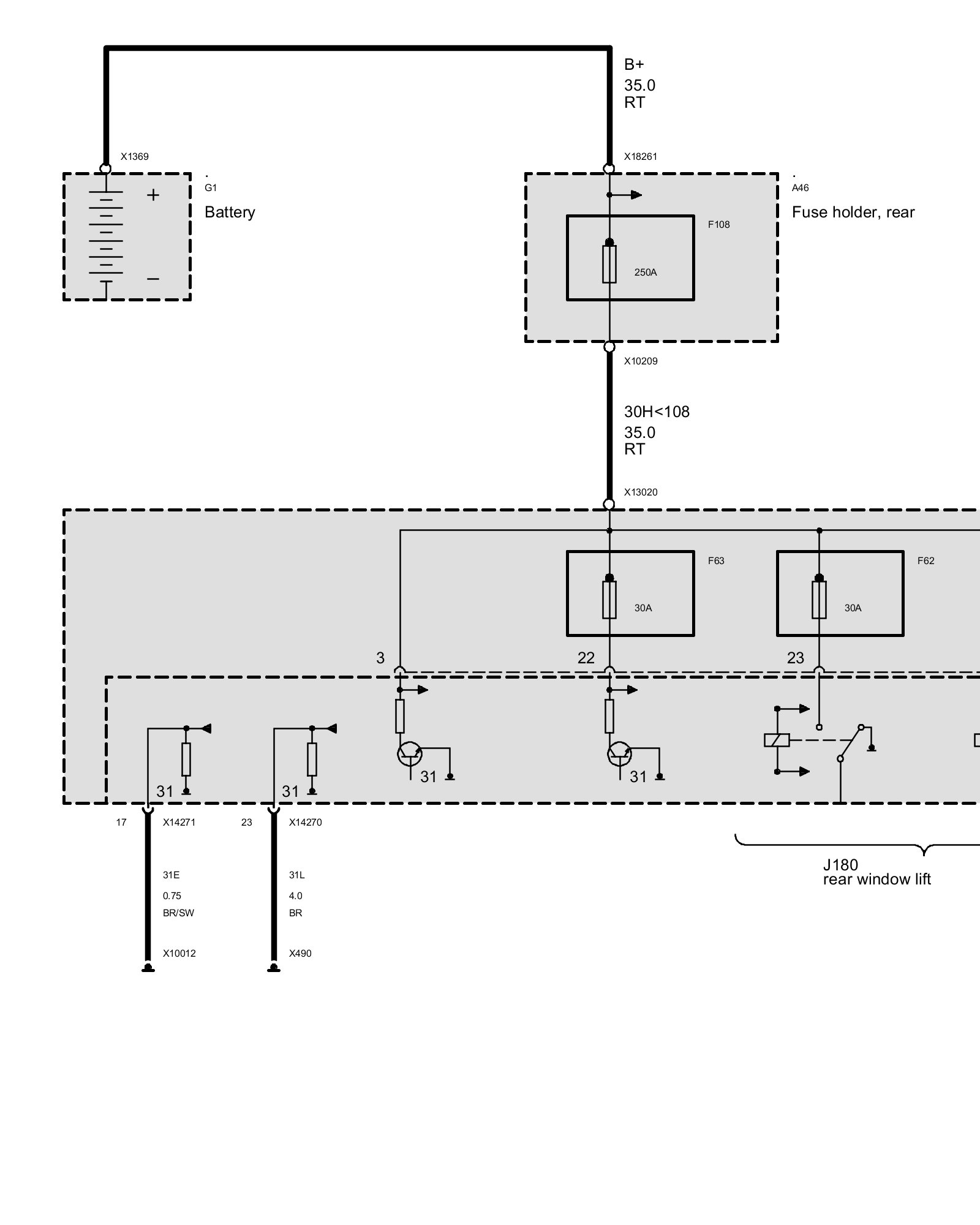

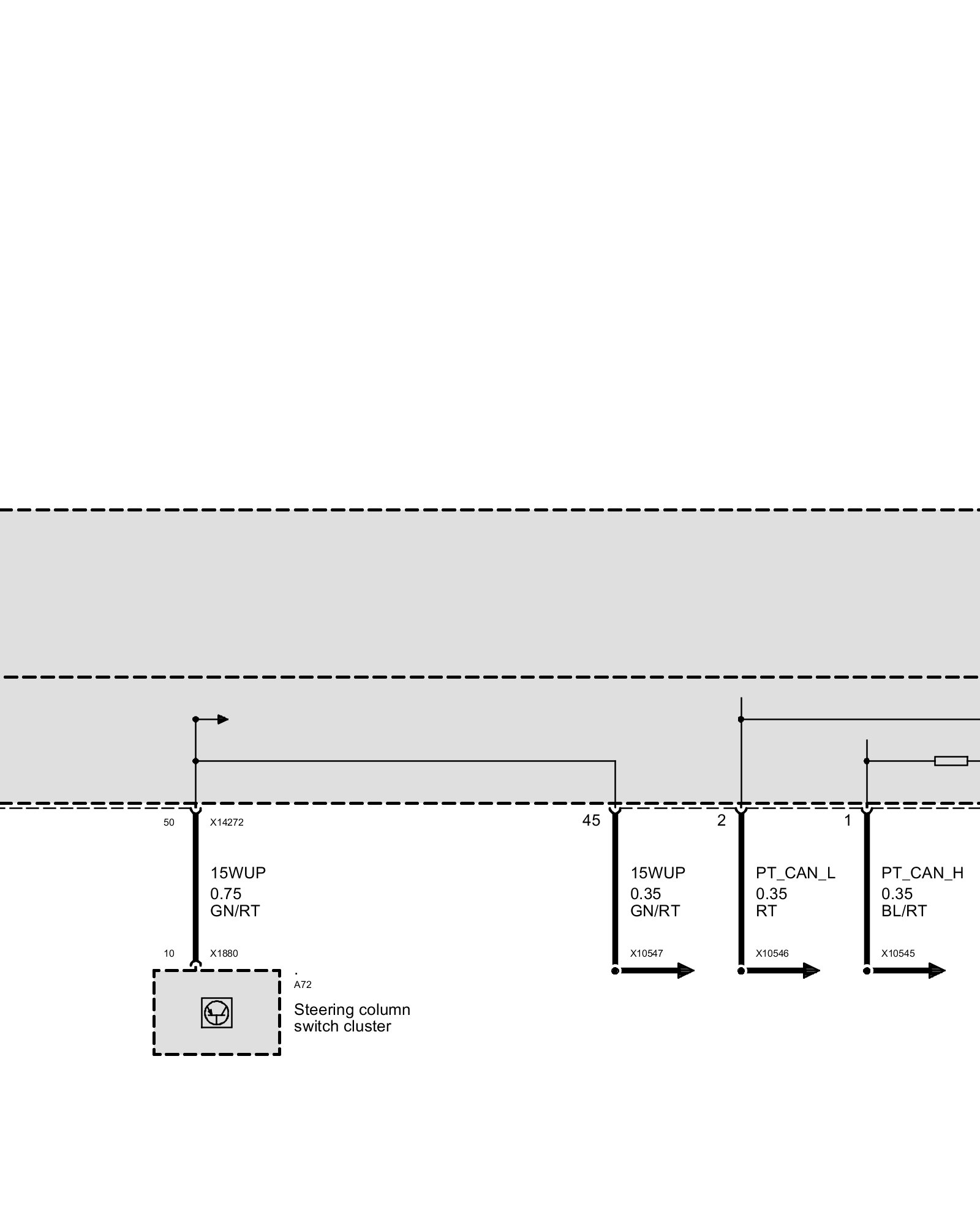

Power Supply JBE Junction Box, Electronics























Part 8:
