BMW
>>
2008
>>
135i Convertible (E88) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse Block
>>
A4010 Junction Box
>>
A4010 Junction Box ((As of 09/05 Up to 03/07) With (CCC-BO User Interface or M-ASK-BO User Interface ))
A4010 Junction Box ((As of 09/05 Up to 03/07) With (CCC-BO User Interface or M-ASK-BO User Interface ))
A4010 Junction Box ((As of 09/05 Up to 03/07) With (CCC-Bo User Interface or M-Ask-Bo User Interface ))

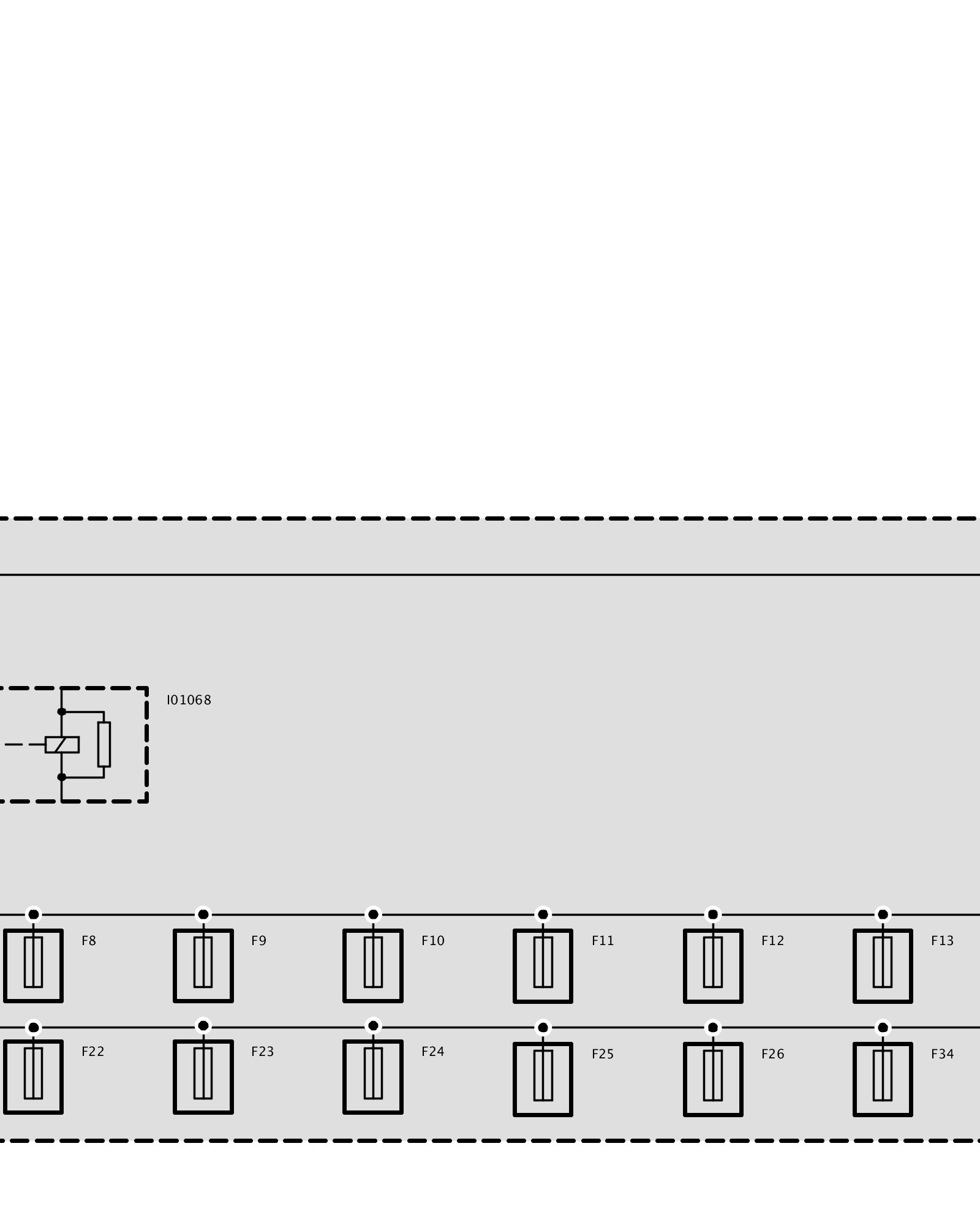

Part 1:

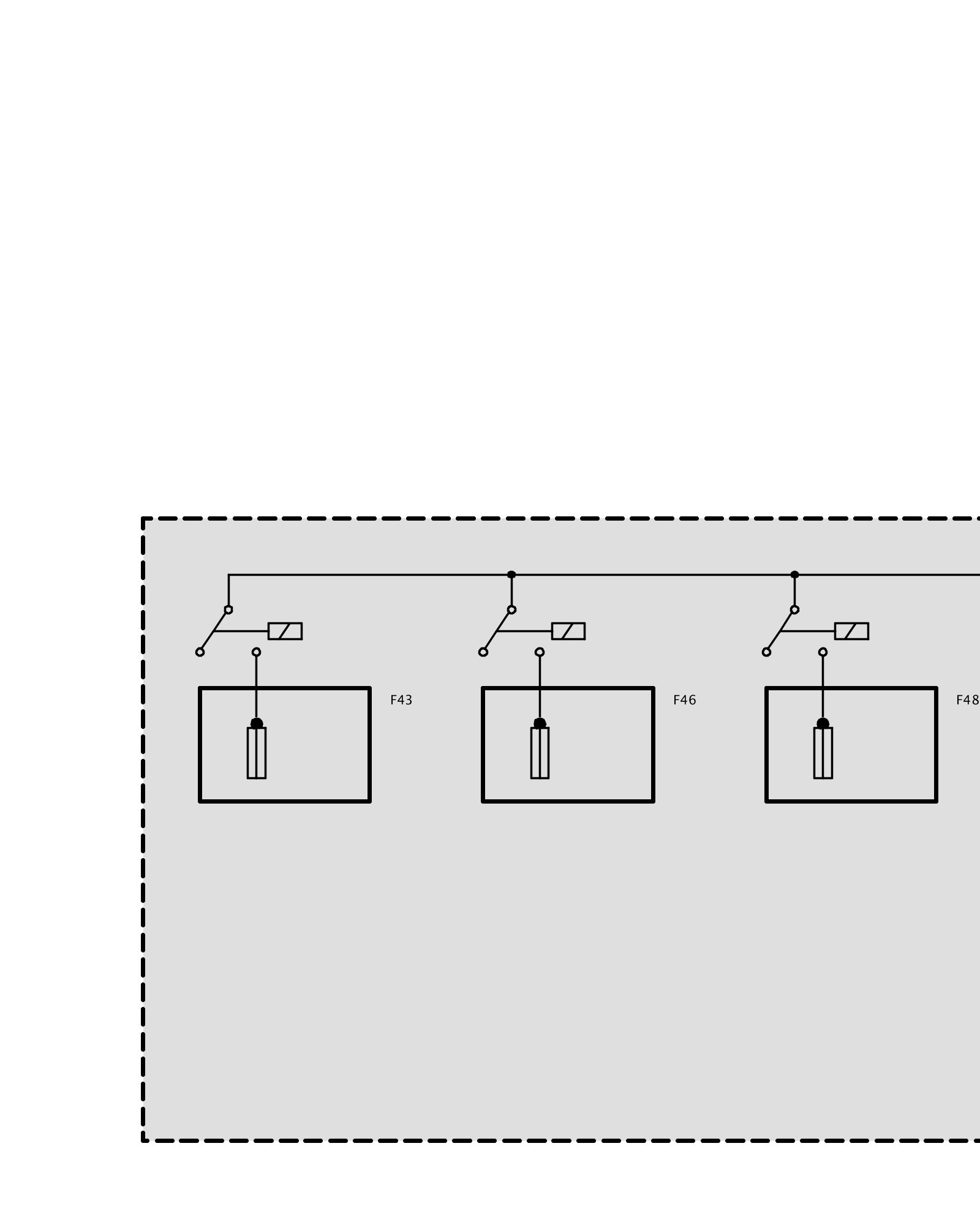

Part 2:

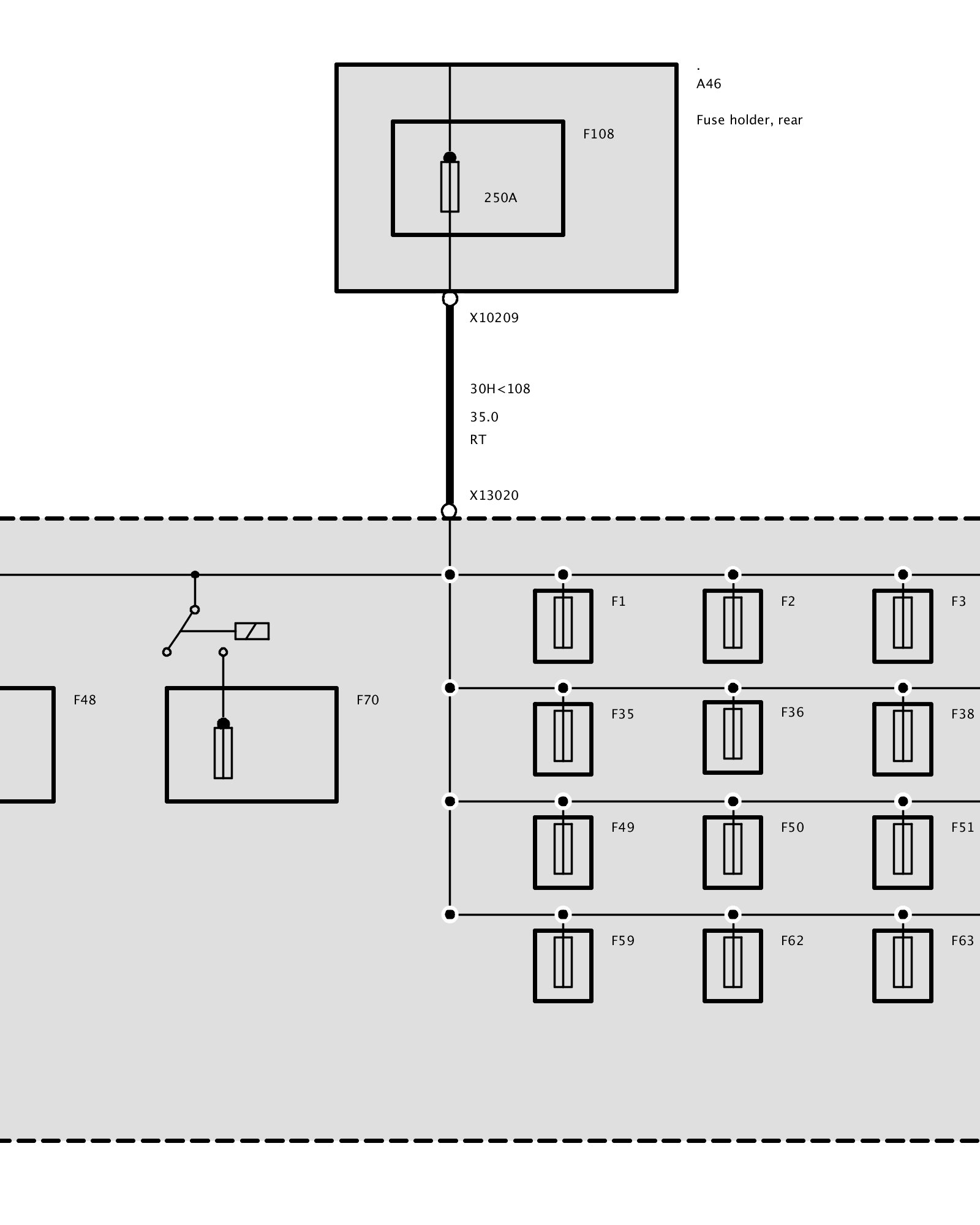

Part 3:

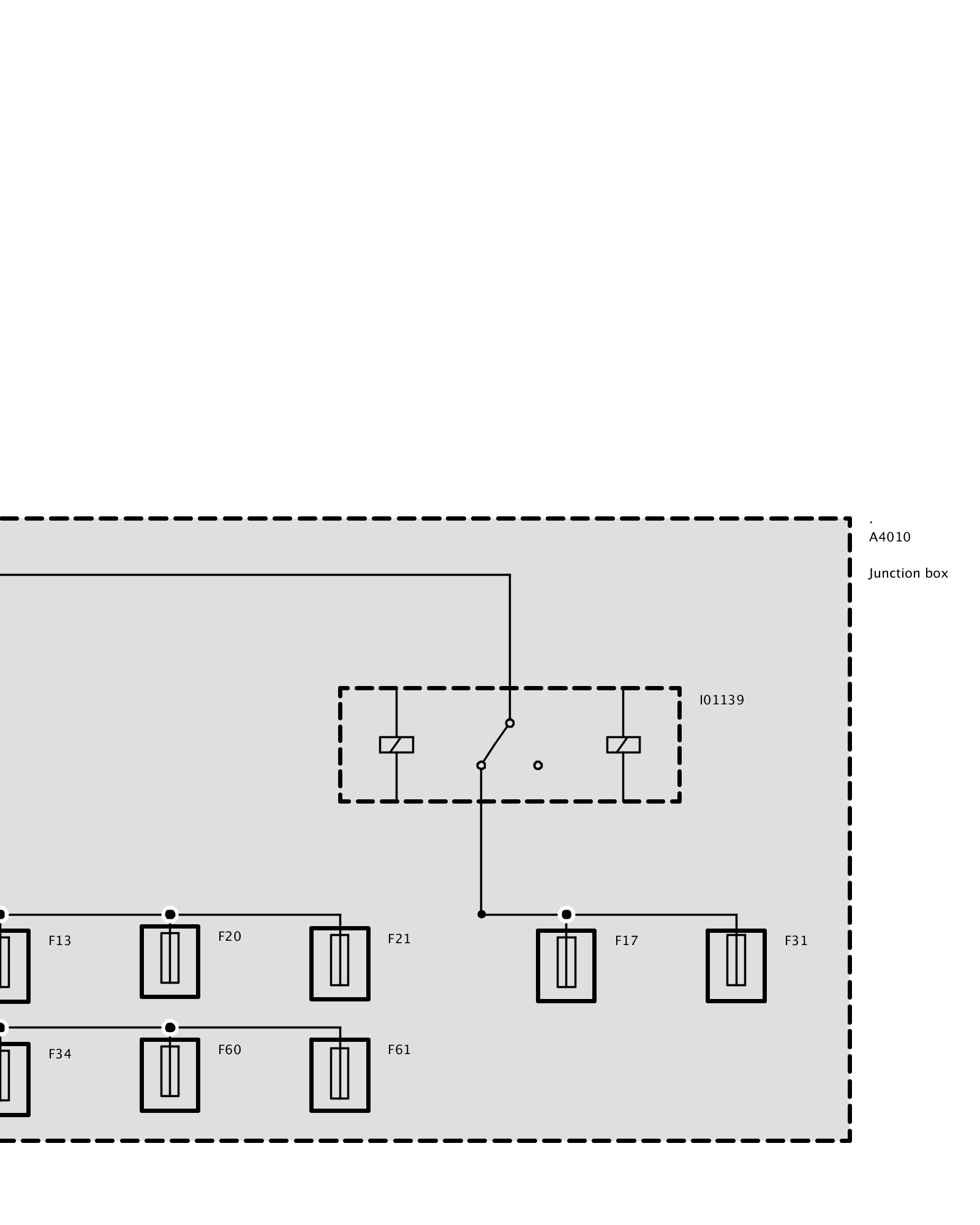

Part 4:

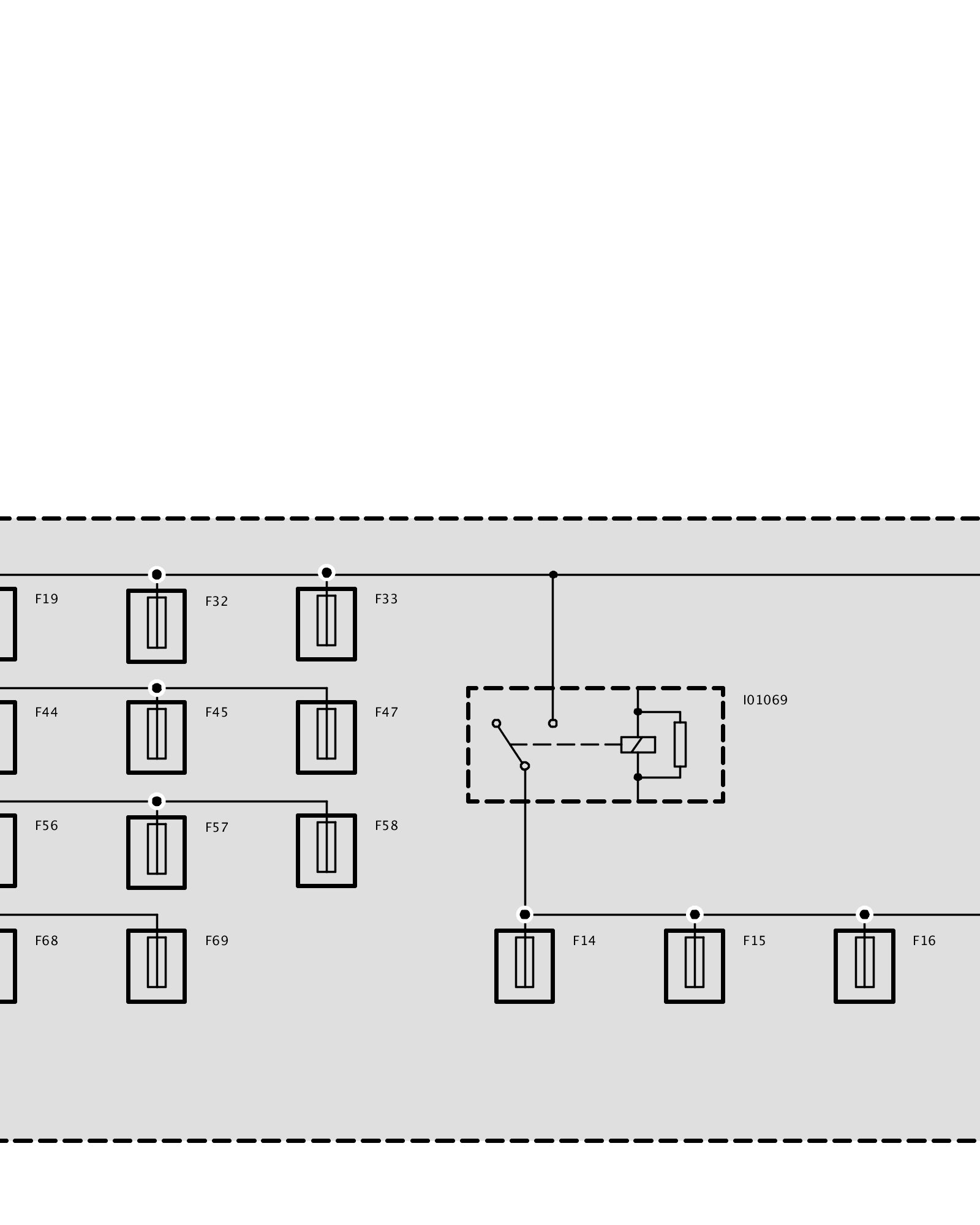

Part 5:

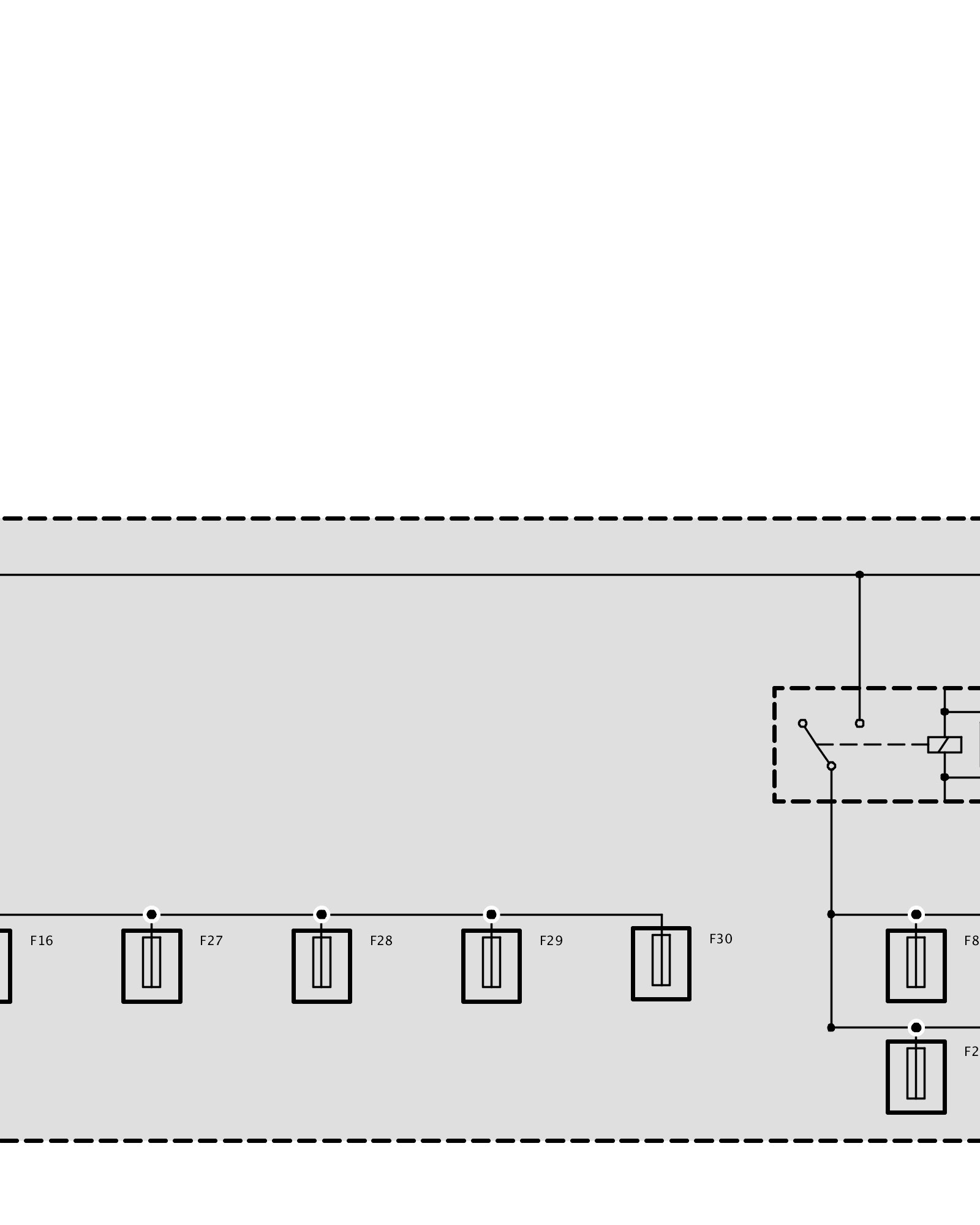

Part 6:
Part 7:
