A11A Heating/ Air-conditioning System (IHKA Integrated Automatic Heating/Air-conditioning With Petrol Engine Up to 03/07)



A11A Heating/ Air-conditioning System

A11A Heating/ Air-conditioning System (IHKA Integrated Automatic Heating/Air-conditioning With Petrol Engine Up to 03/07)

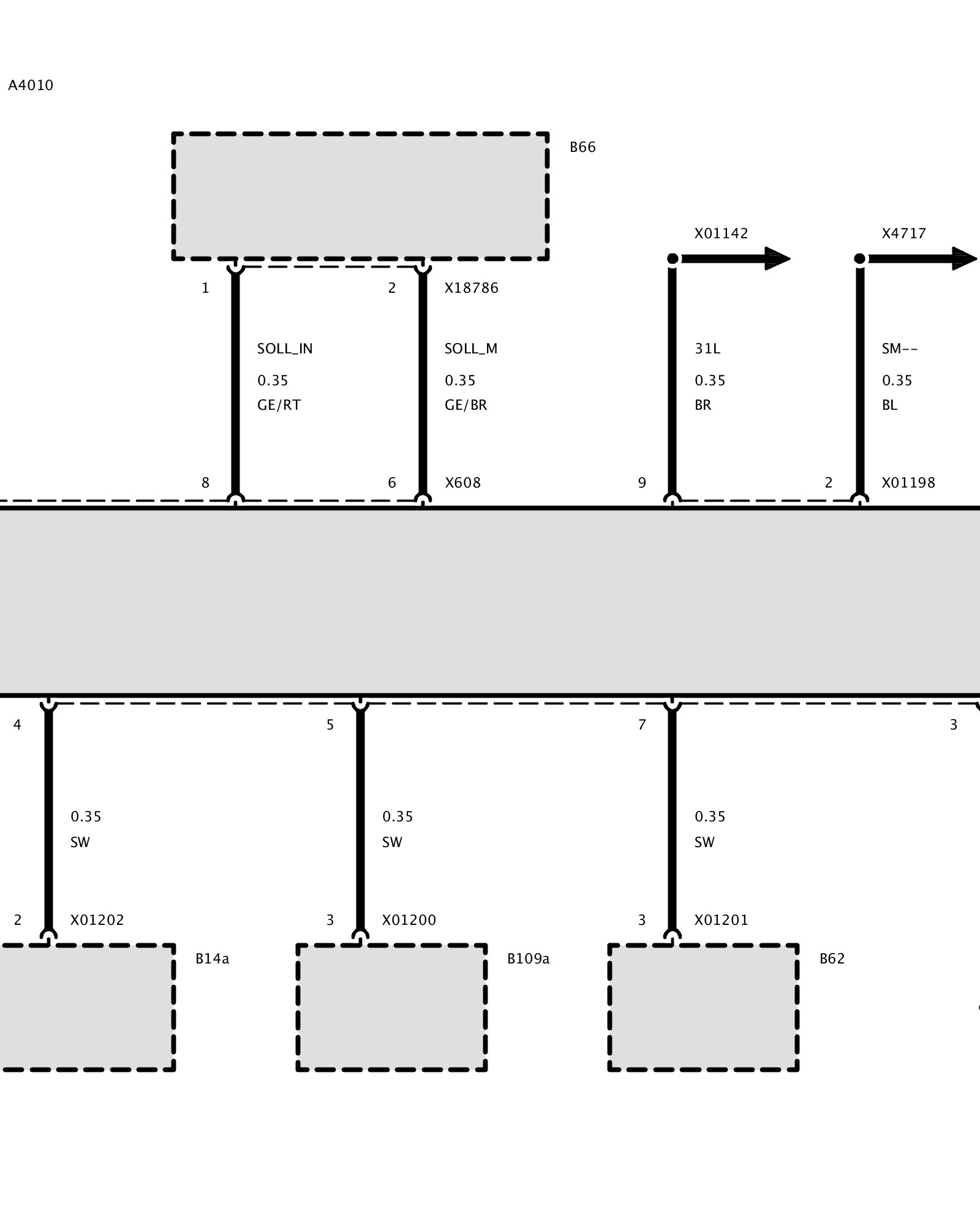

Part 1:

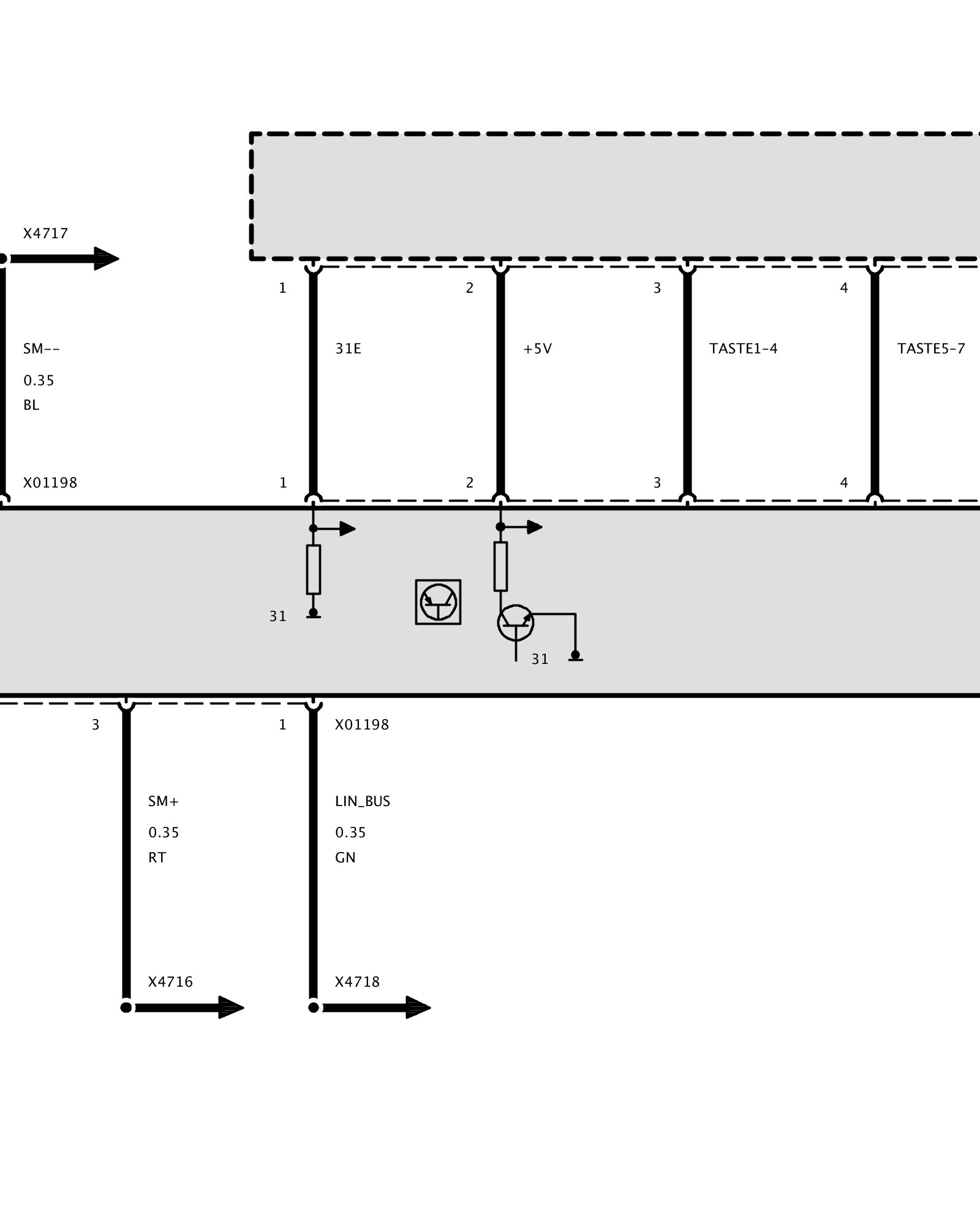

Part 2:

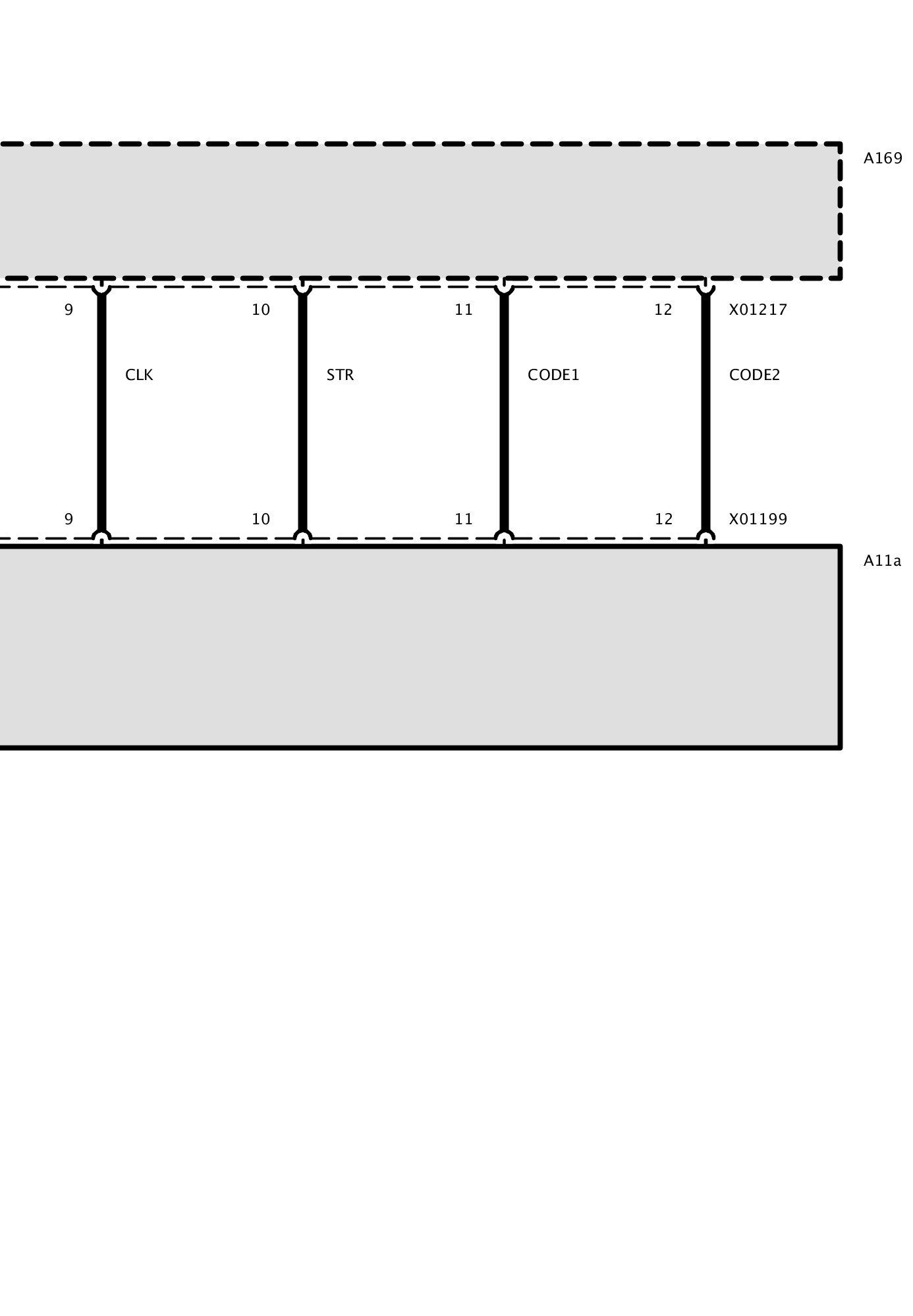

Part 3:

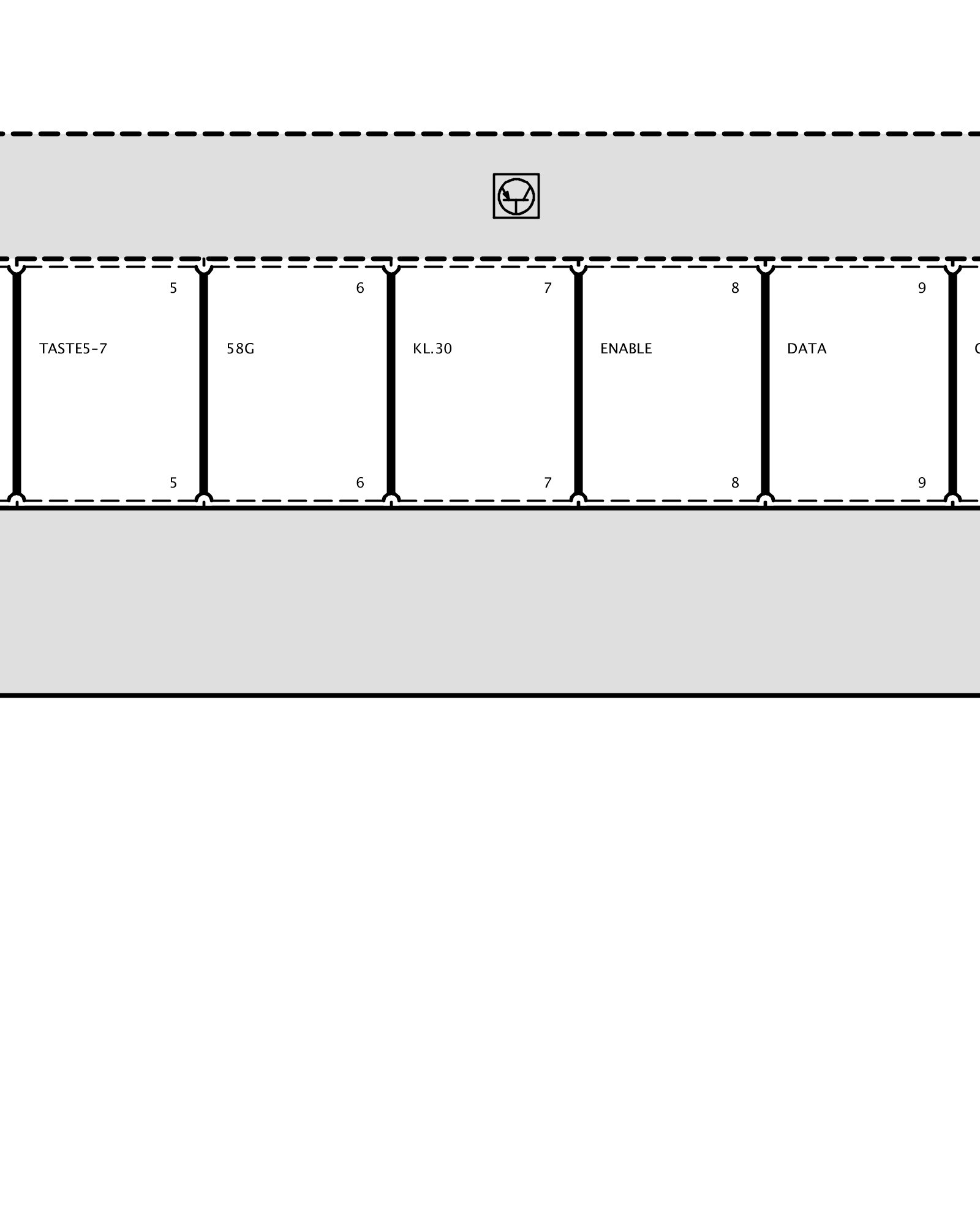

Part 4:

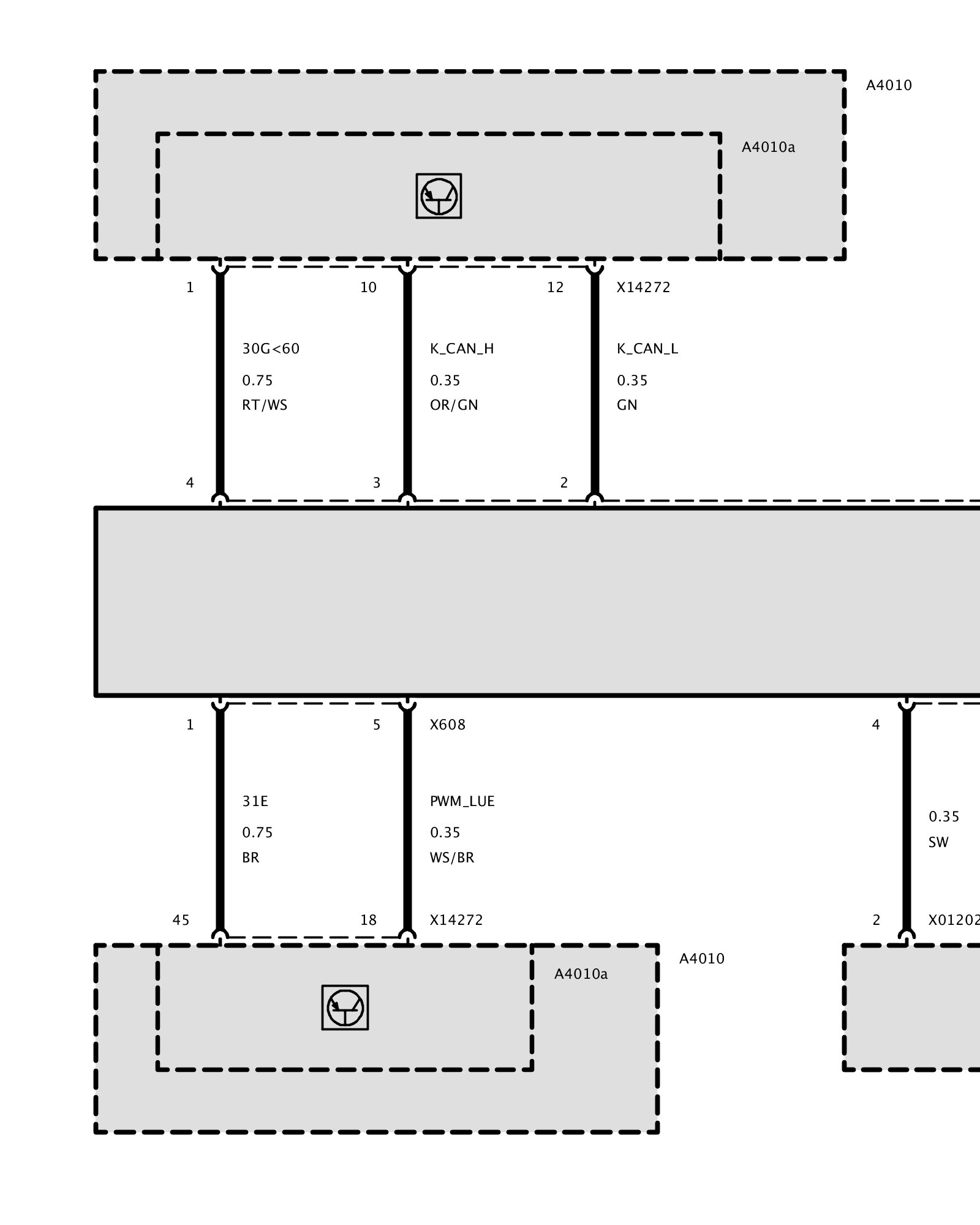

Part 5:
