A11A Heating/ Air-conditioning System (1 Series_E81/E82/E87/E88 With IHKA As of 03/07 up to 09/07)



A11A Heating/ Air-conditioning System

A11A Heating/ Air-conditioning System (1 Series_E81/E82/E87/E88 With IHKA As of 03/07 up to 09/07)

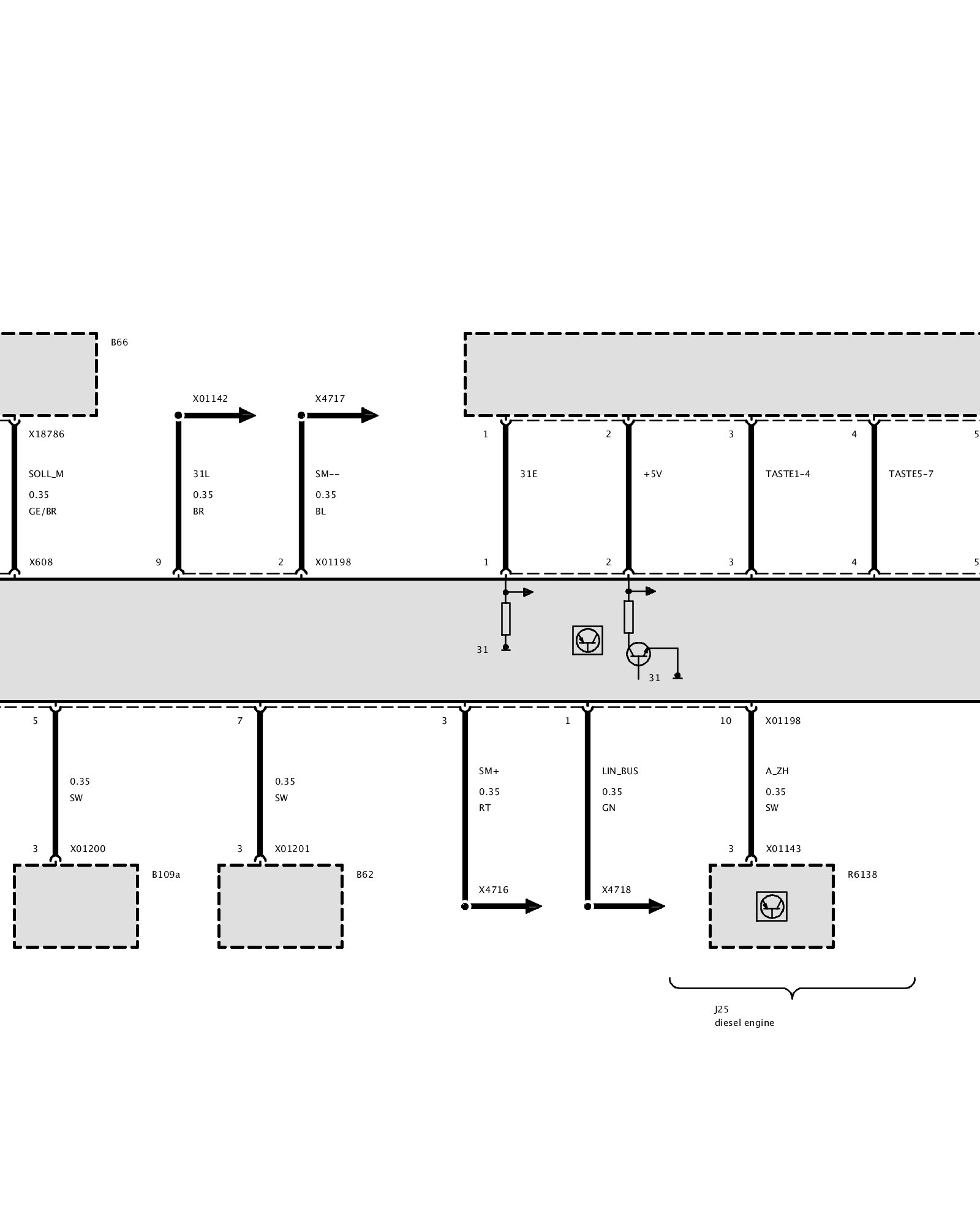

Part 1:

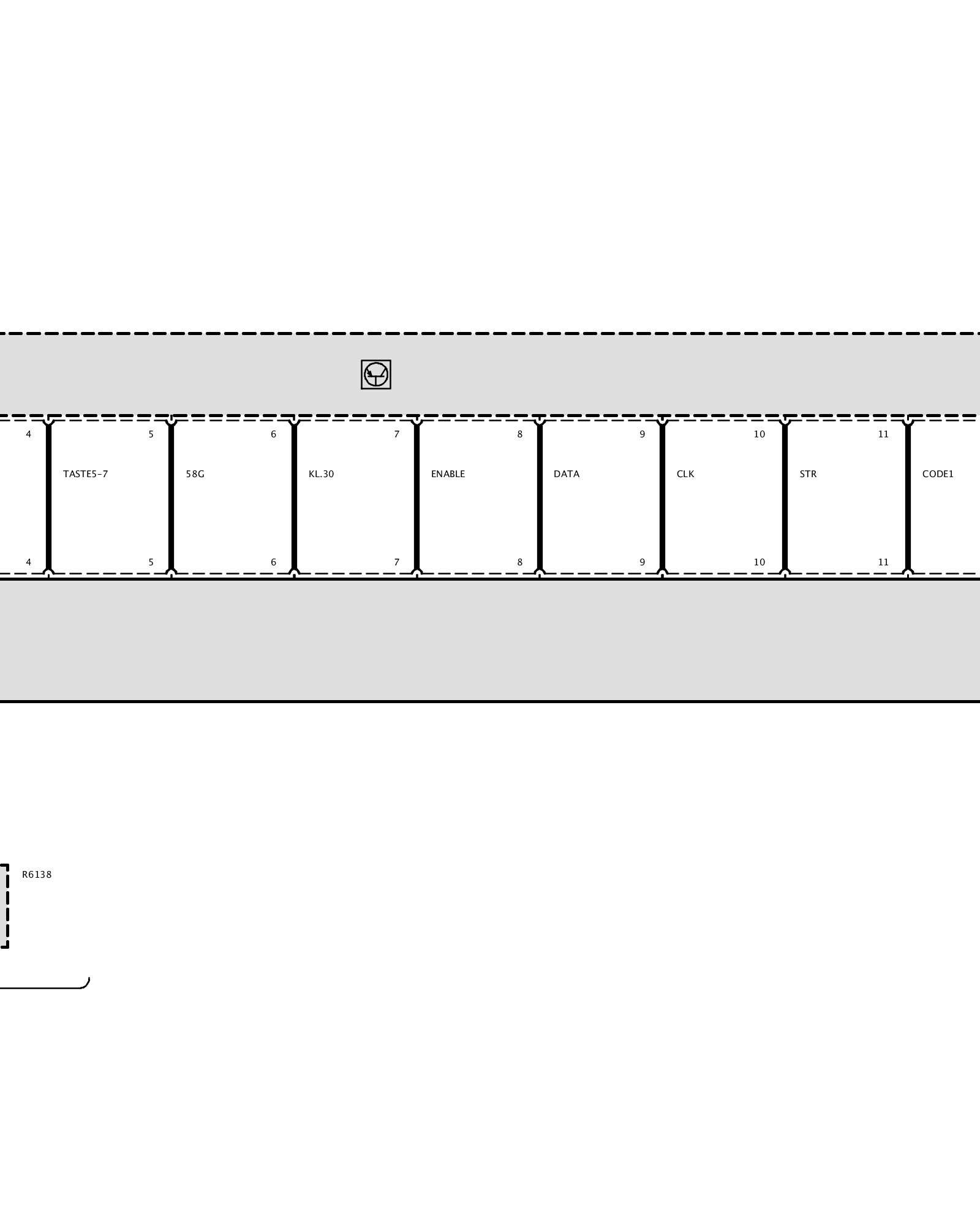

Part 2:

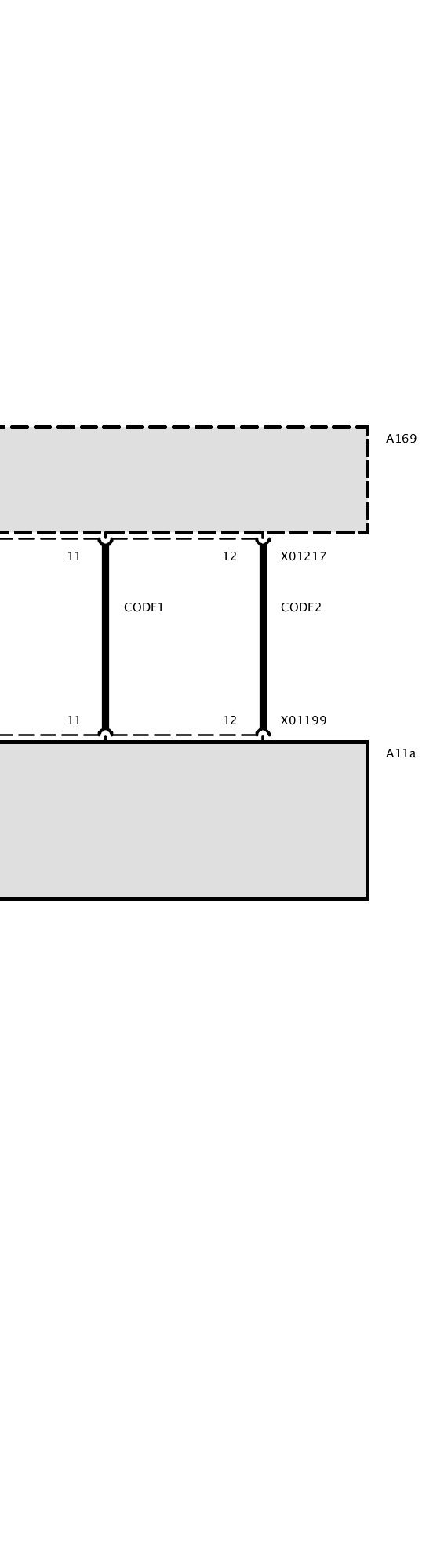

Part 3:

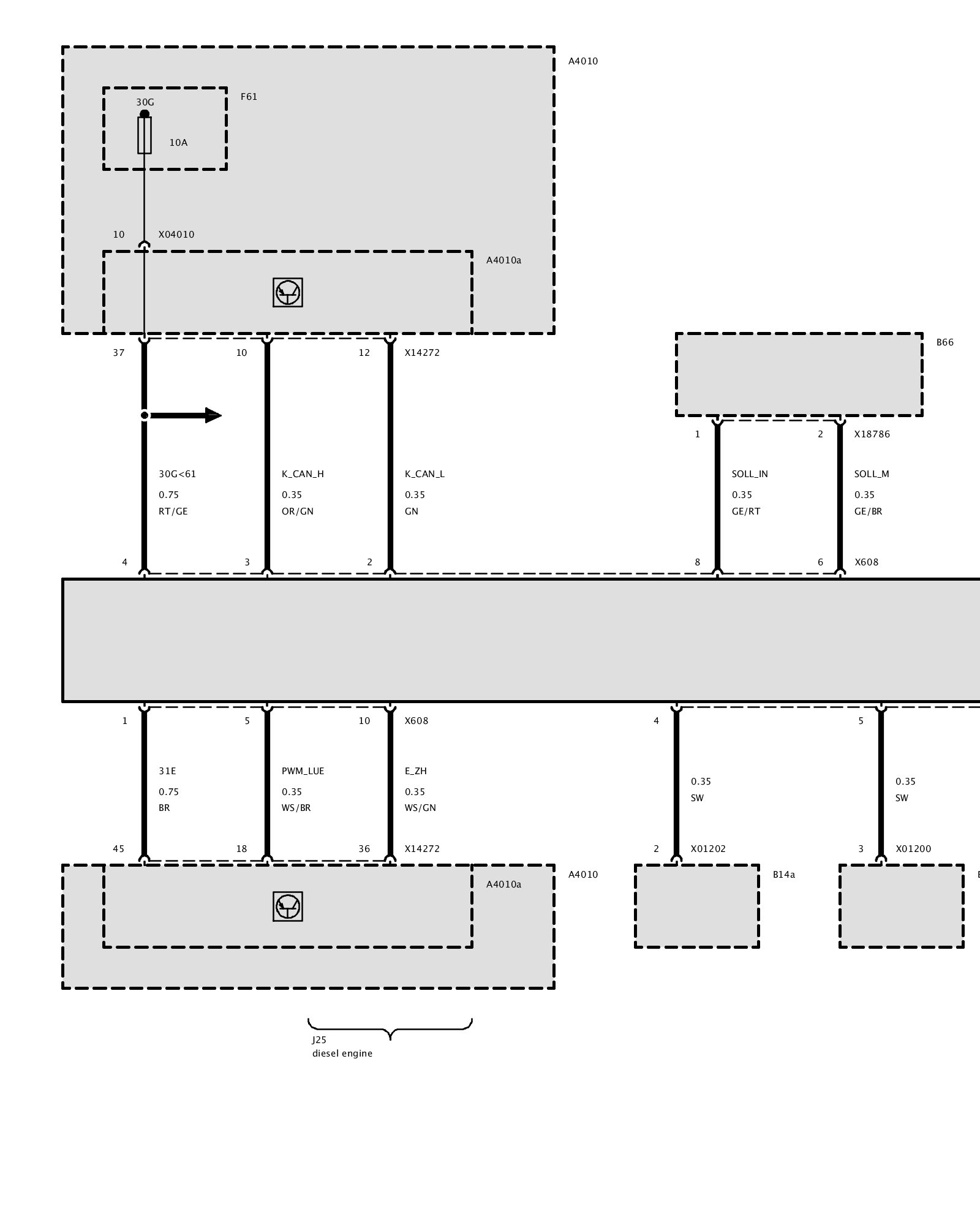

Part 4:
