Home >> BMW >> 2008 >> 135i Convertible (E88) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Traction Control Module >> A65A Dynamic Stability Control (DSC) ((As of 03/06 Up to 03/07) With DSC )(Conti) Dynamic Stability Control)

A65A Dynamic Stability Control (DSC) ((As of 03/06 Up to 03/07) With DSC )(Conti) Dynamic Stability Control)

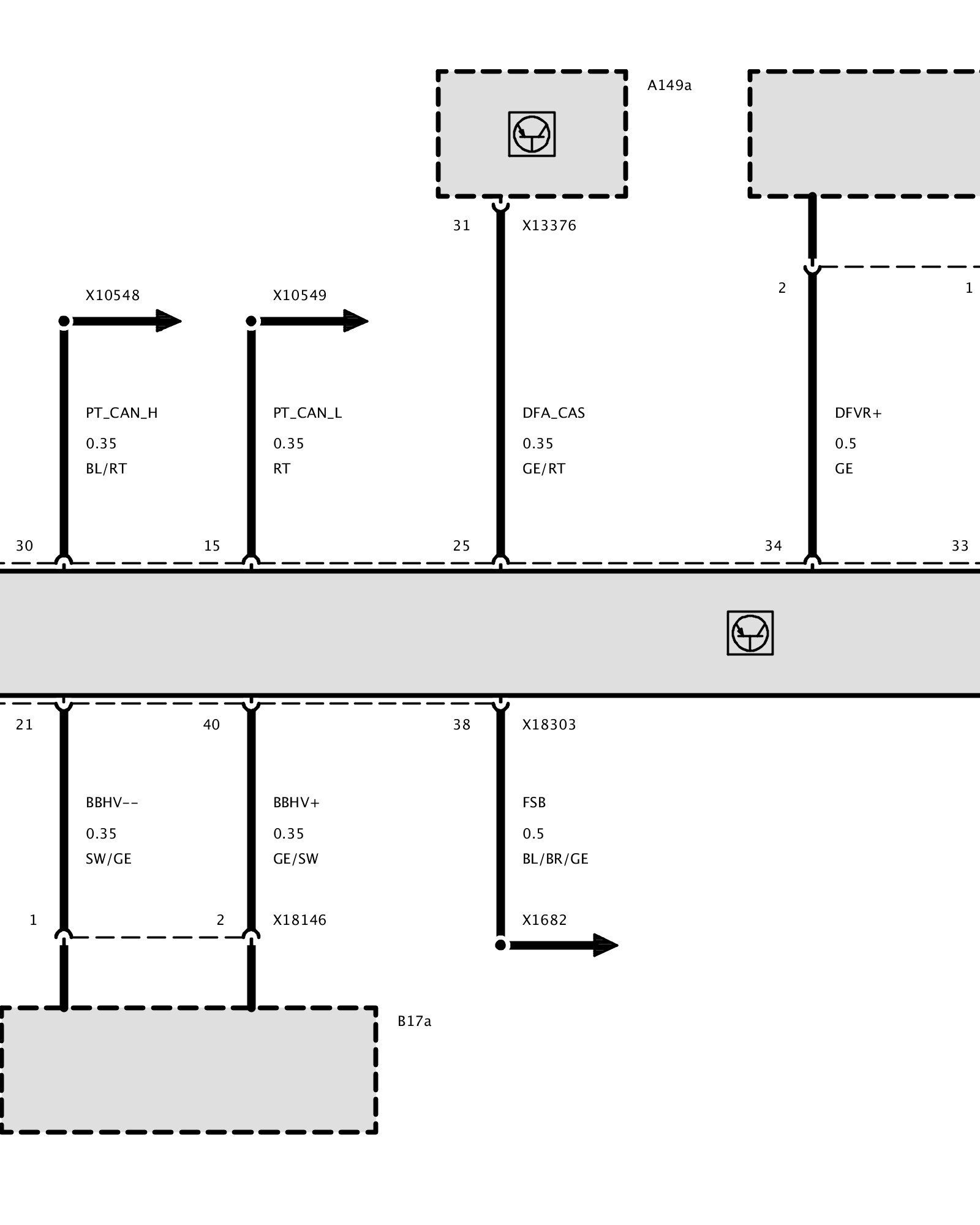

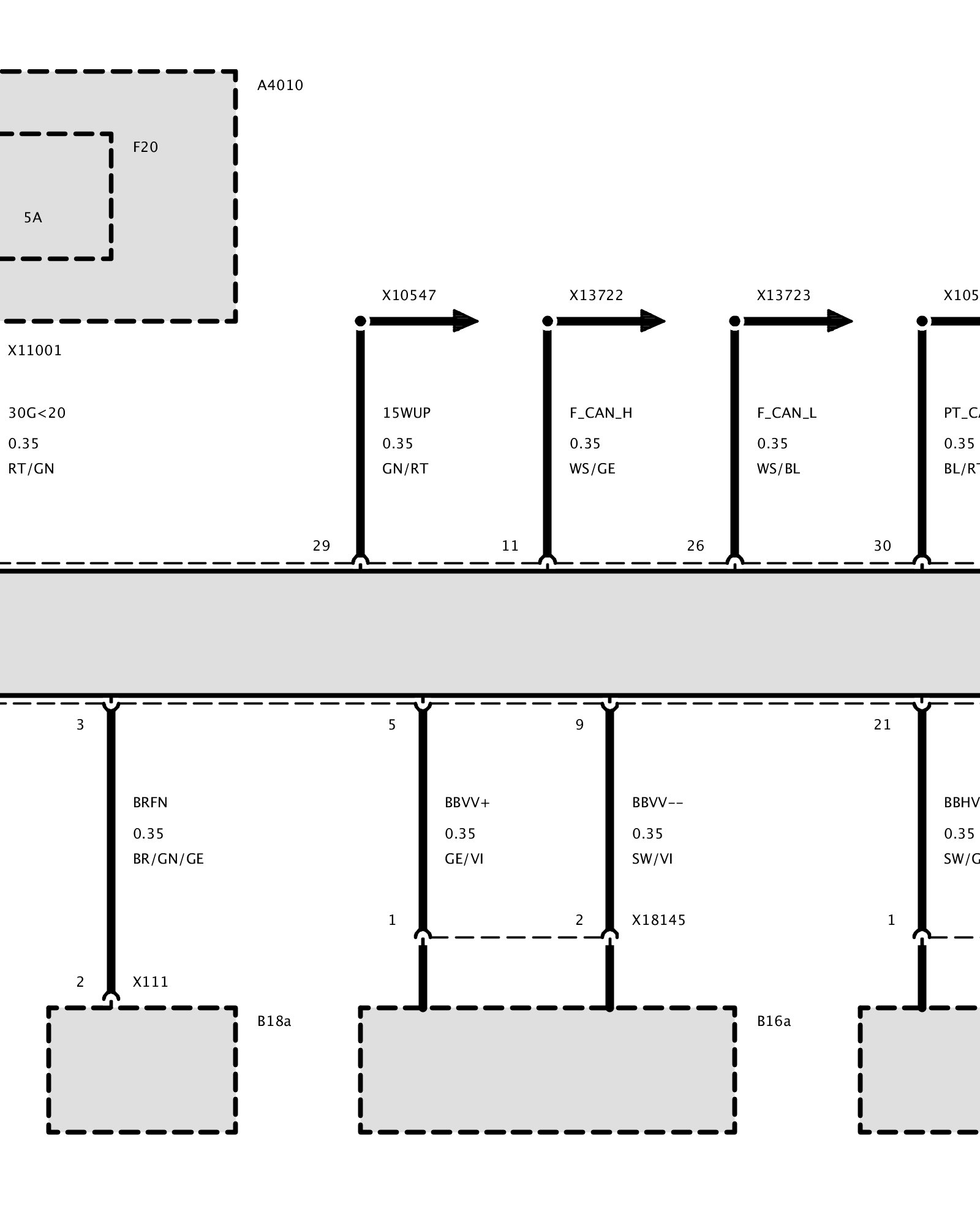

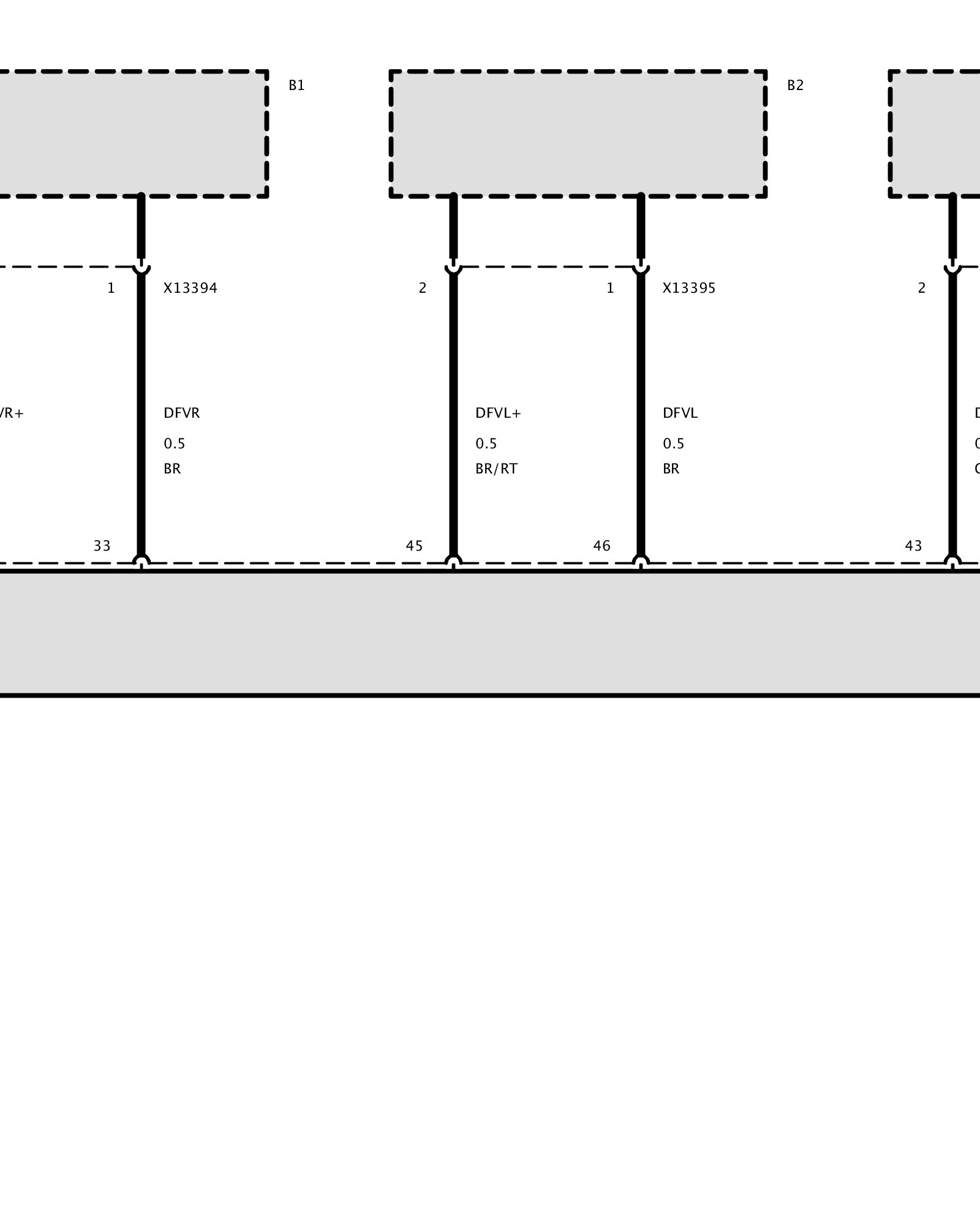

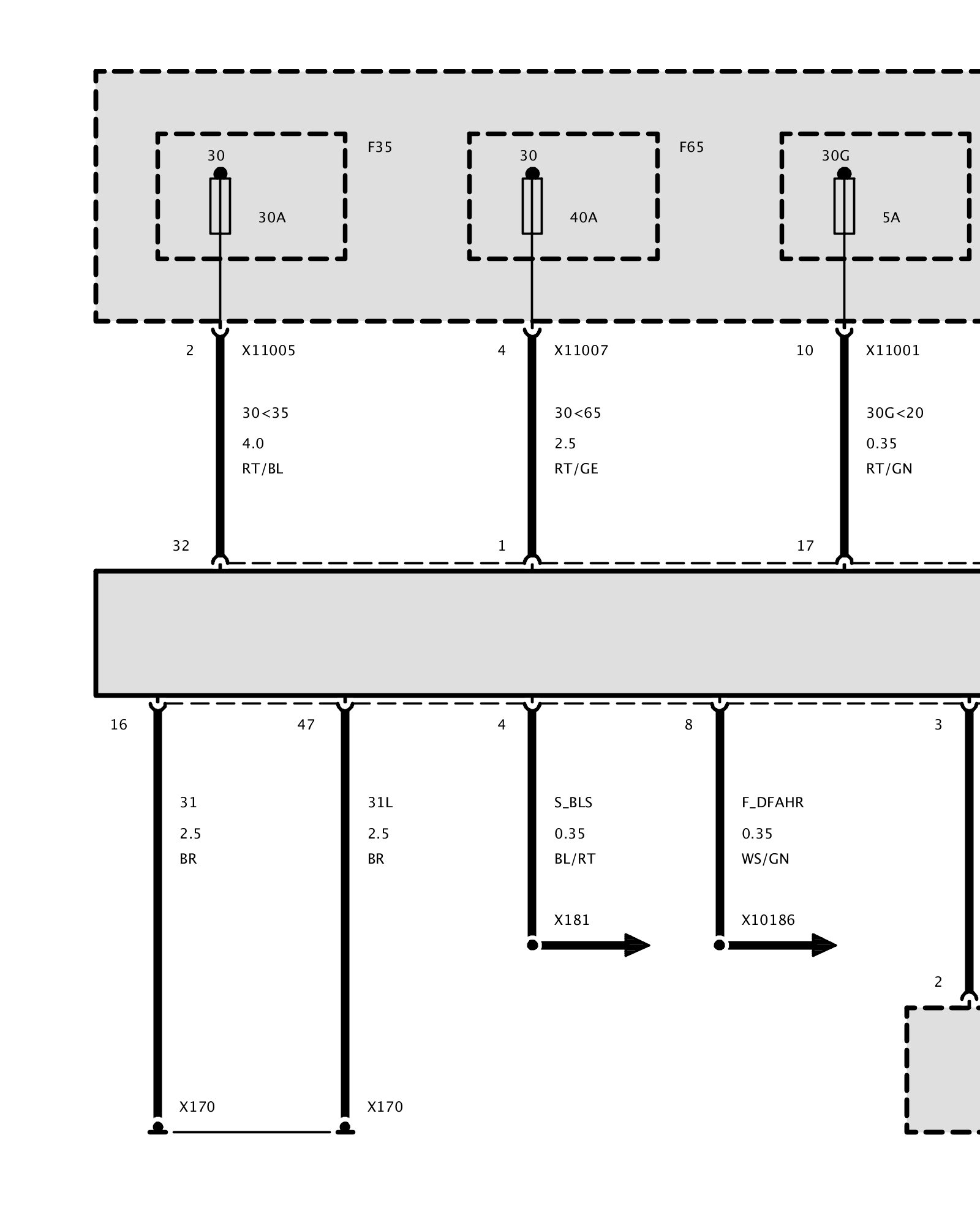

A65A Dynamic Stability Control (DSC)

A65A Dynamic Stability Control (DSC) ((As of 03/06 Up to 03/07) With DSC )(Conti) Dynamic Stability Control)
