A65A Dynamic Stability Control (DSC) ( DSC (Conti) Dynamic Stability Control As of 09/07)



A65A Dynamic Stability Control (DSC)

A65A Dynamic Stability Control (DSC) ( DSC (Conti) Dynamic Stability Control As of 09/07)

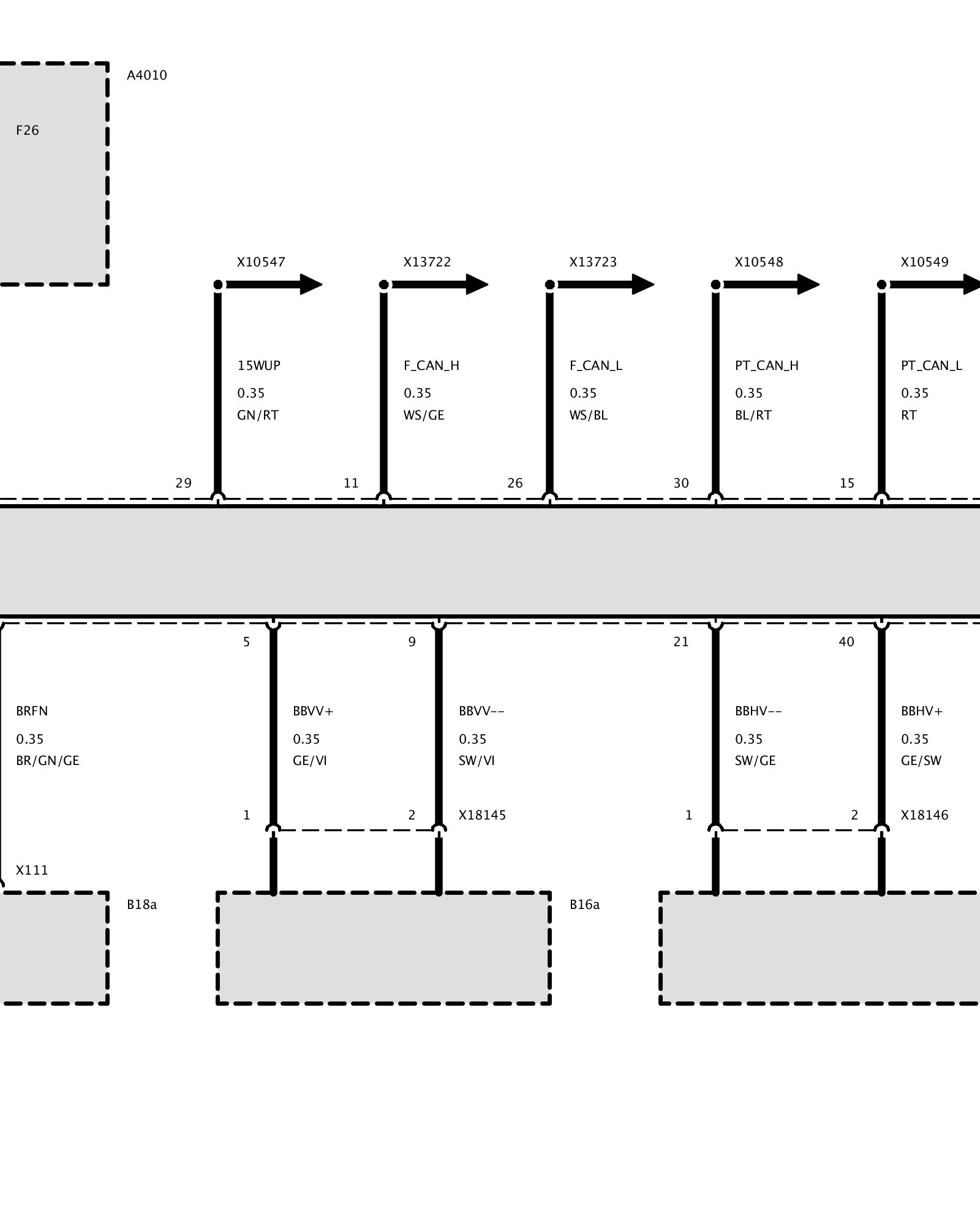

Part 1:

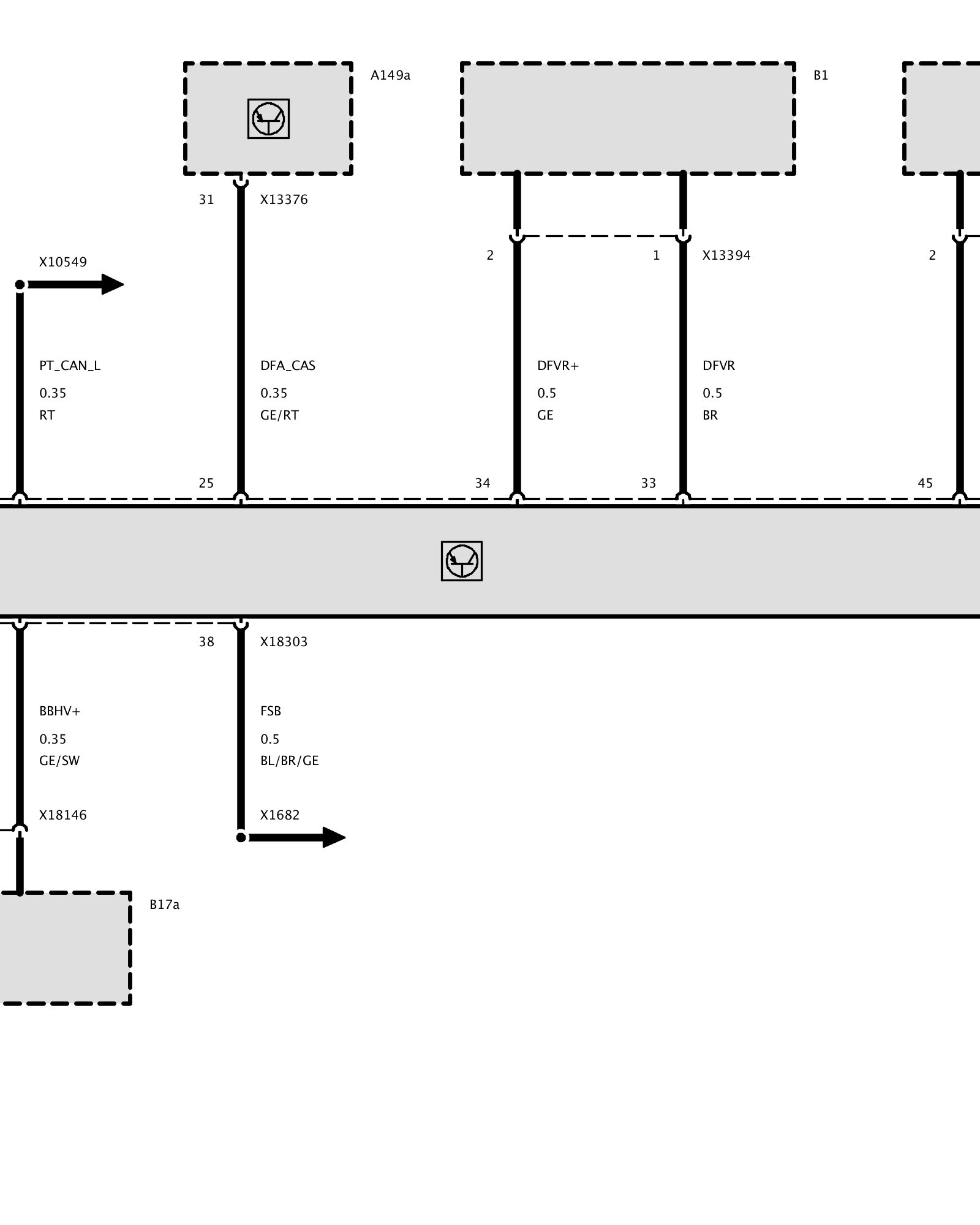

Part 2:

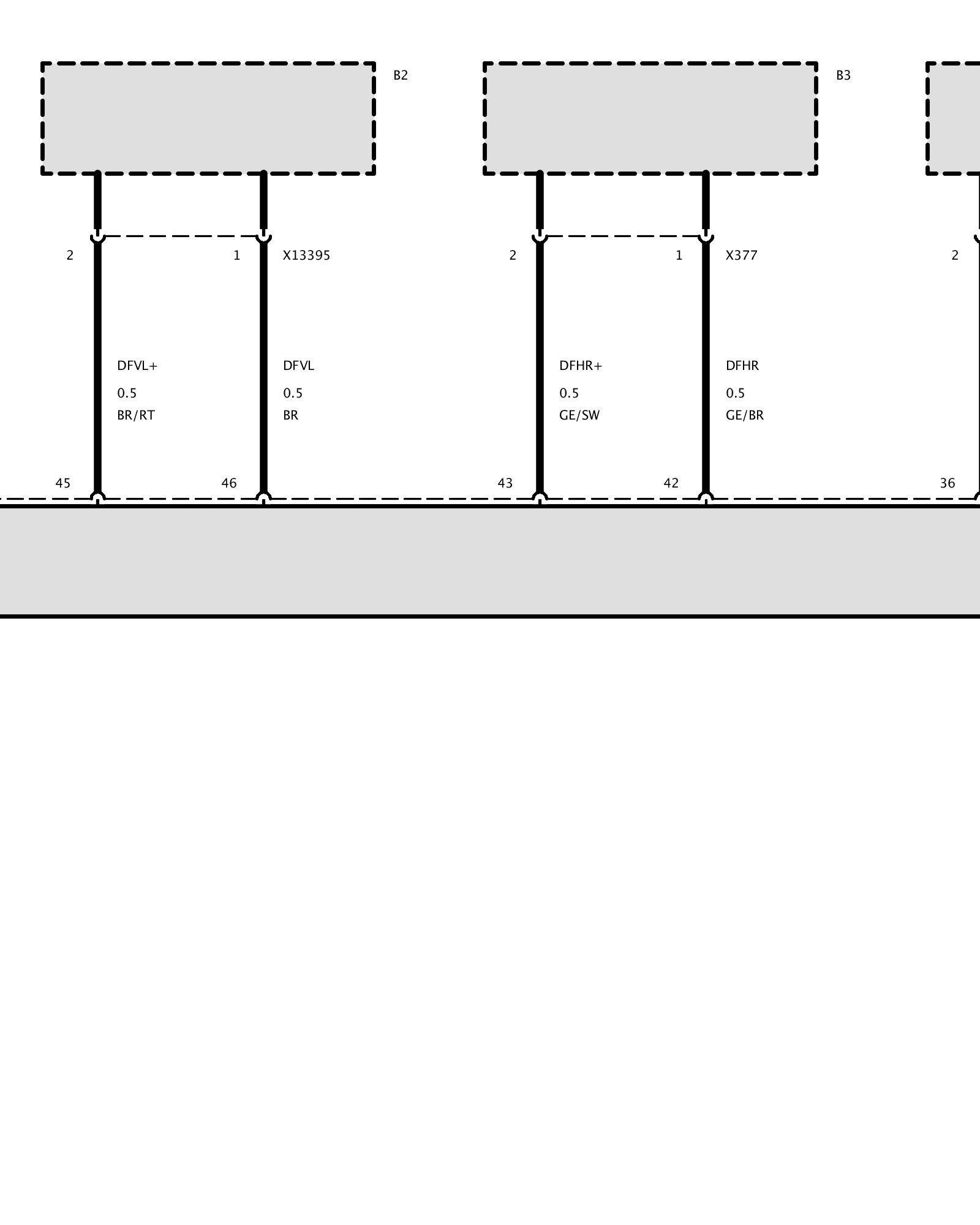

Part 3:

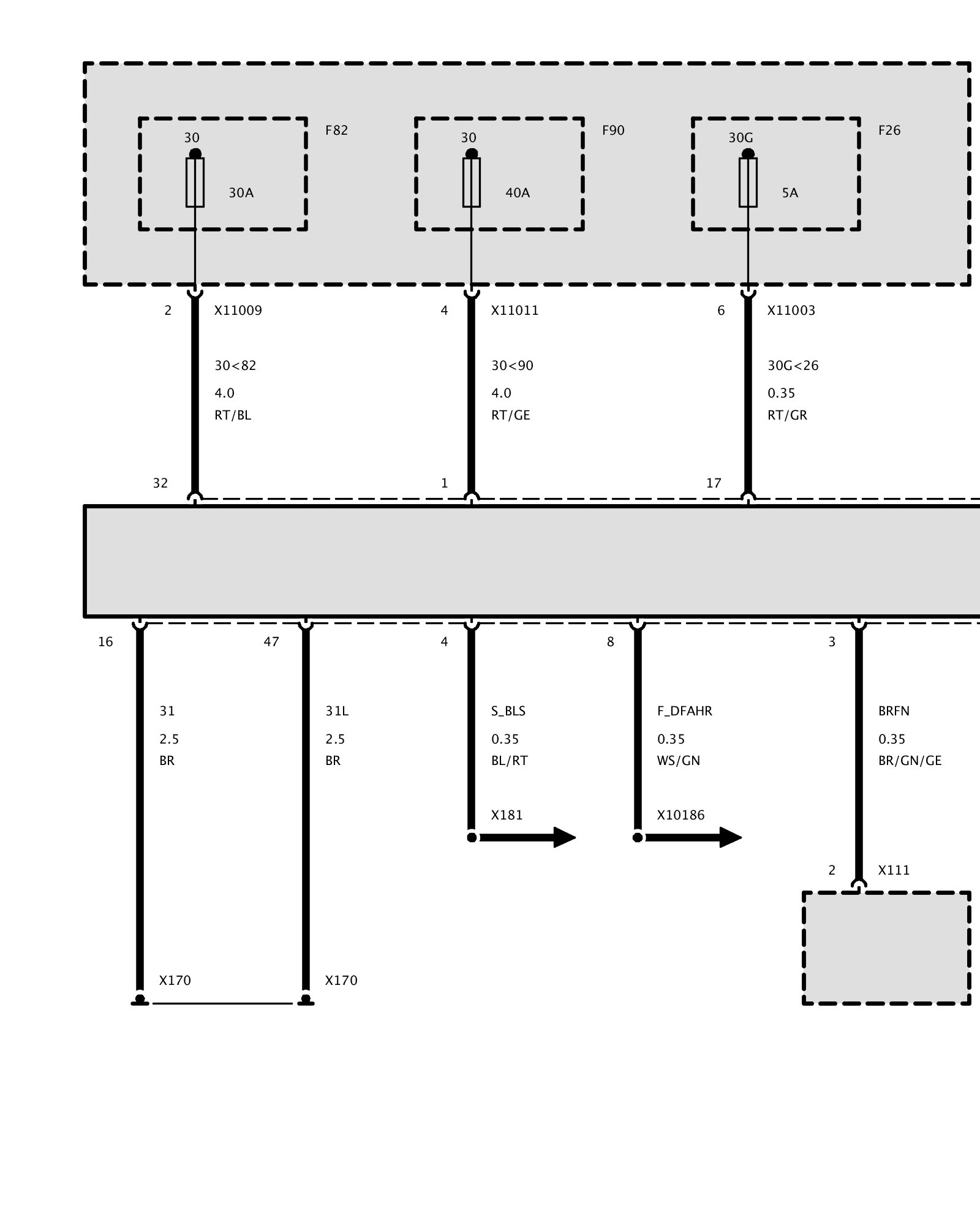

Part 4:

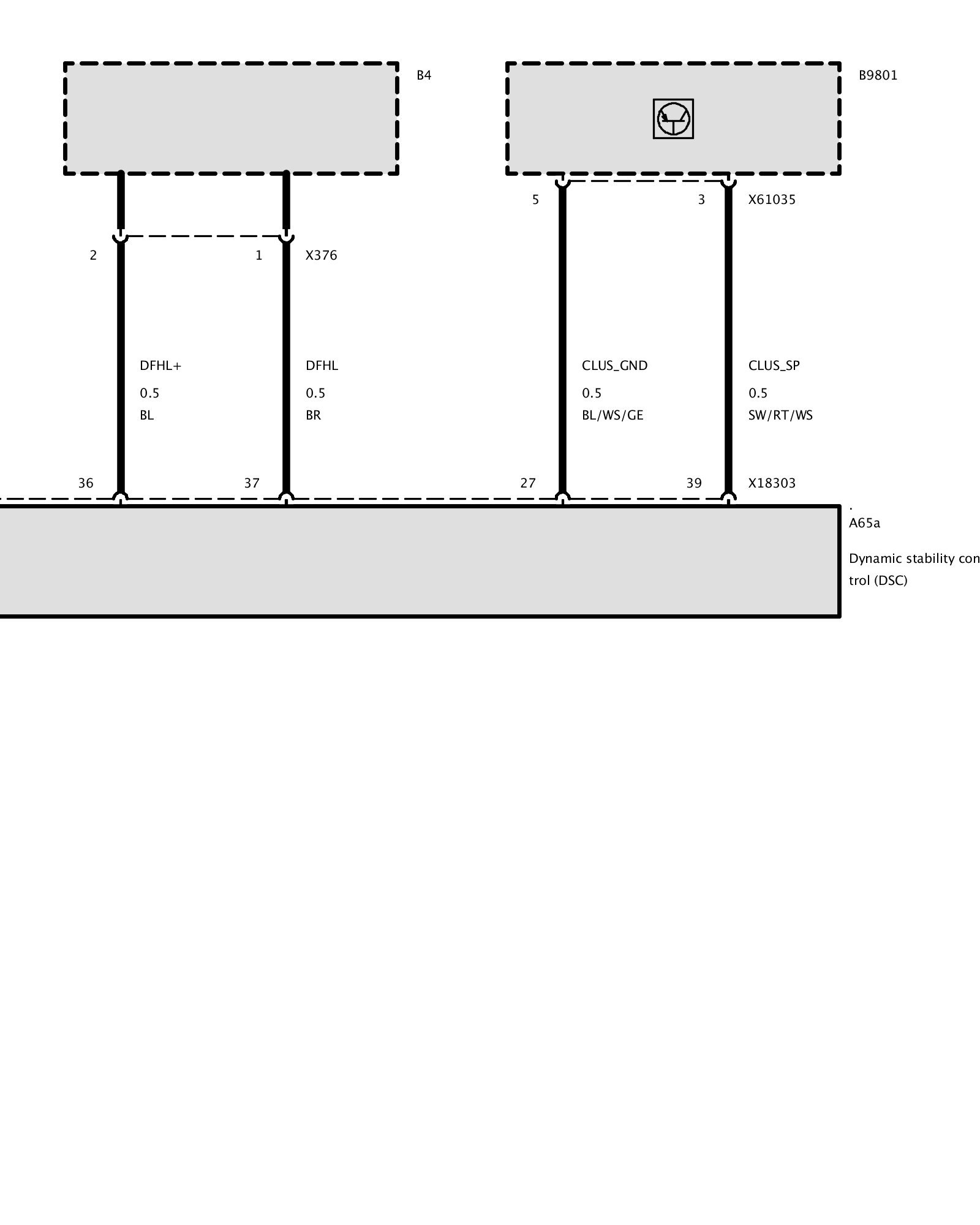

Part 5:
