Traction Control System

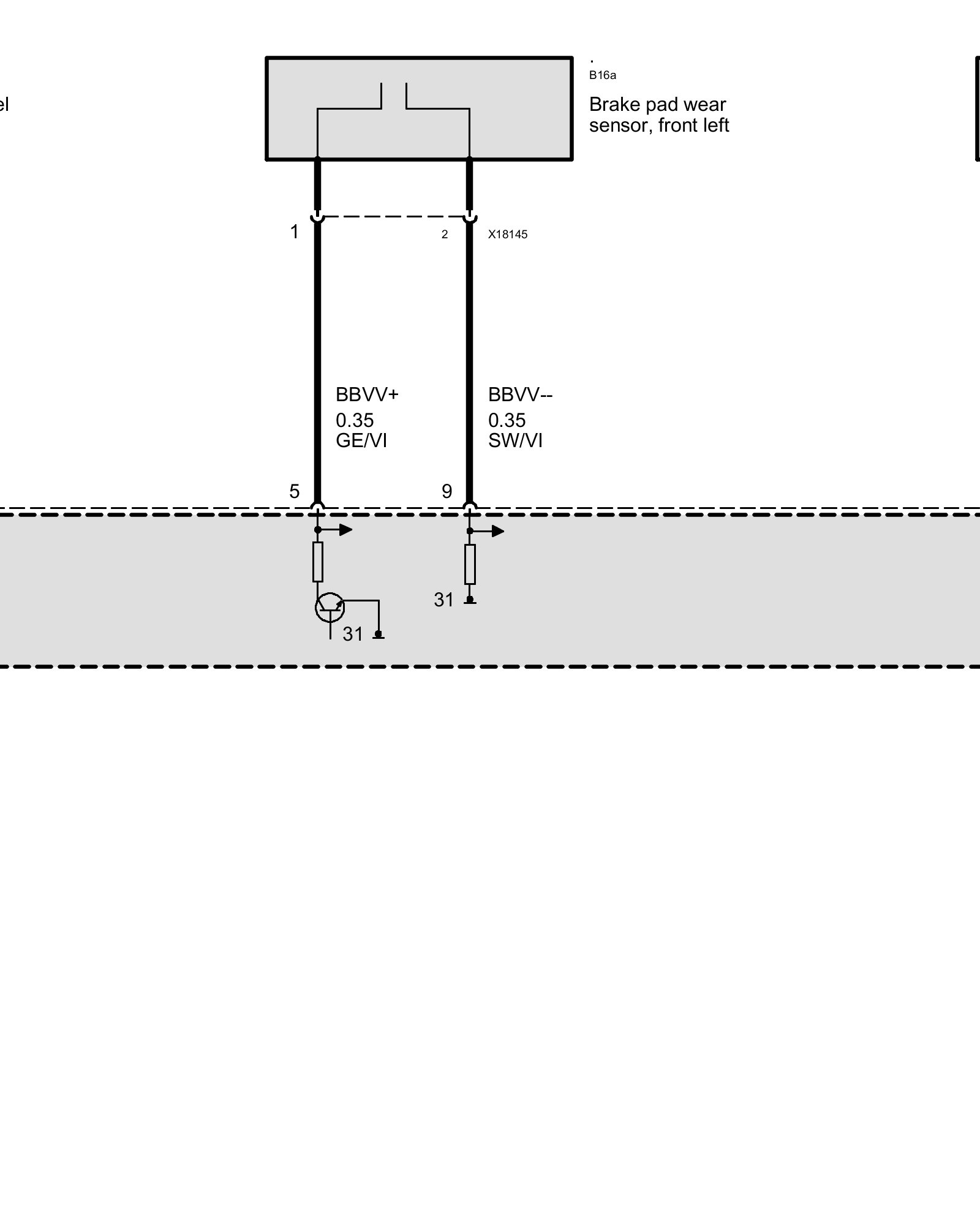

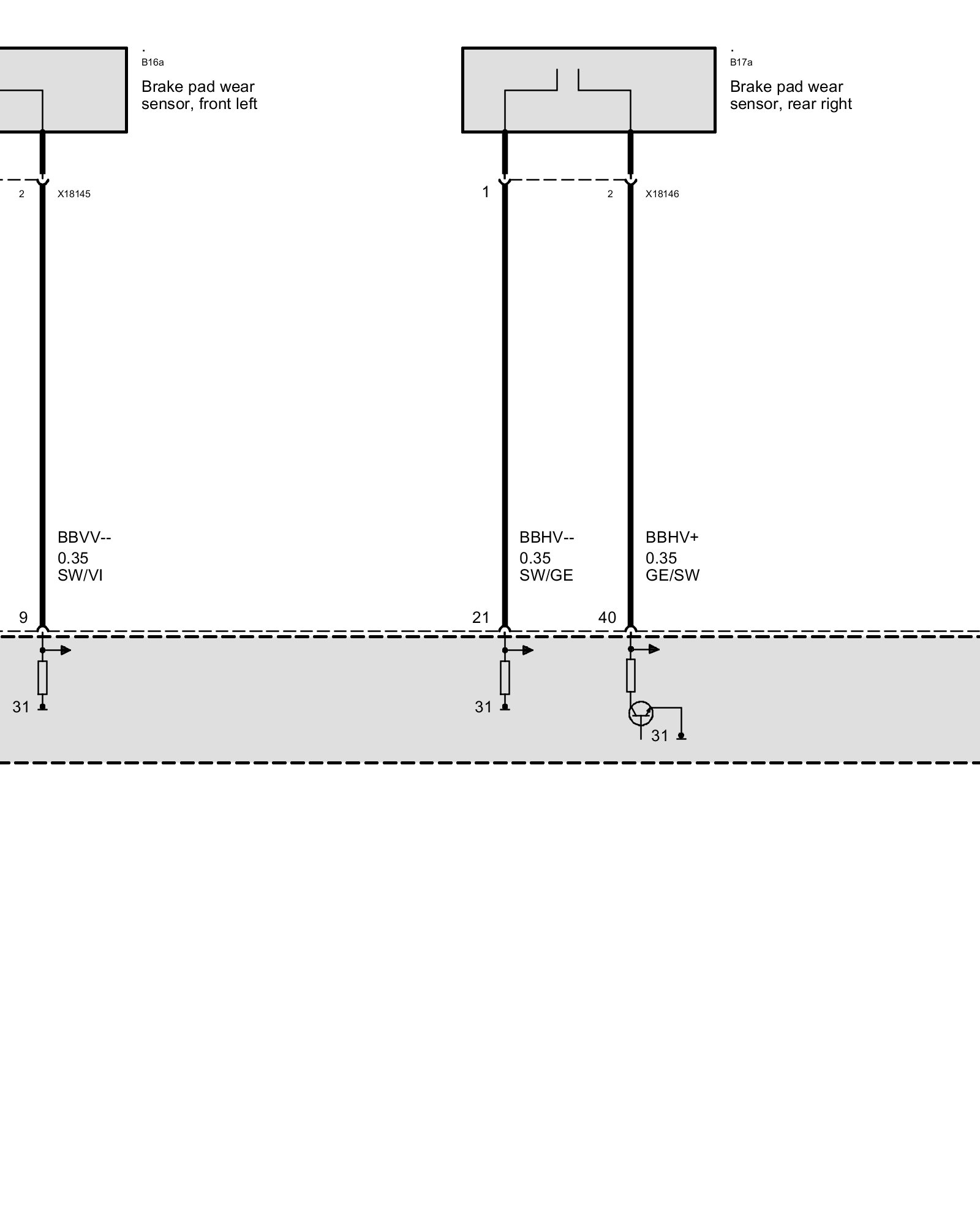

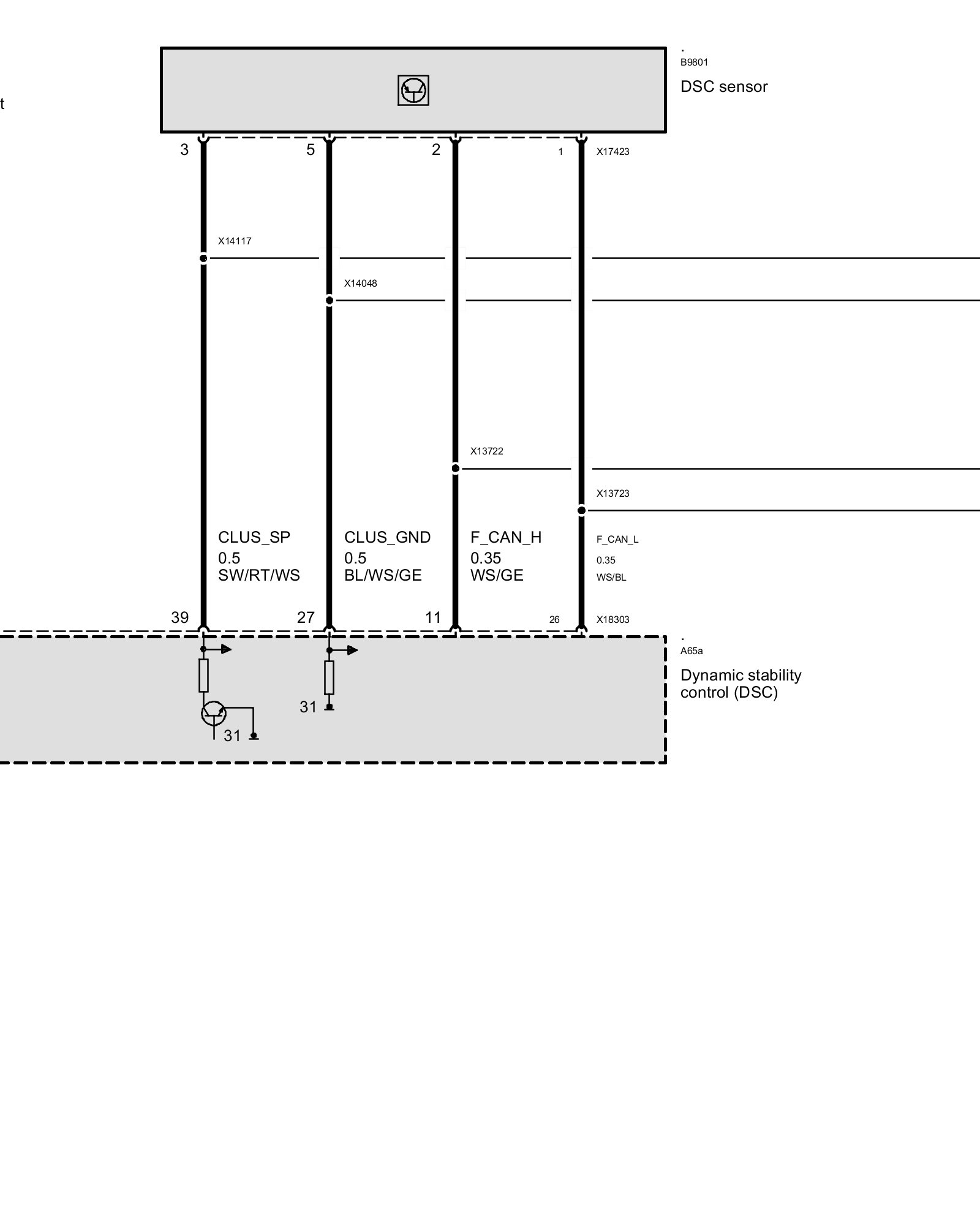

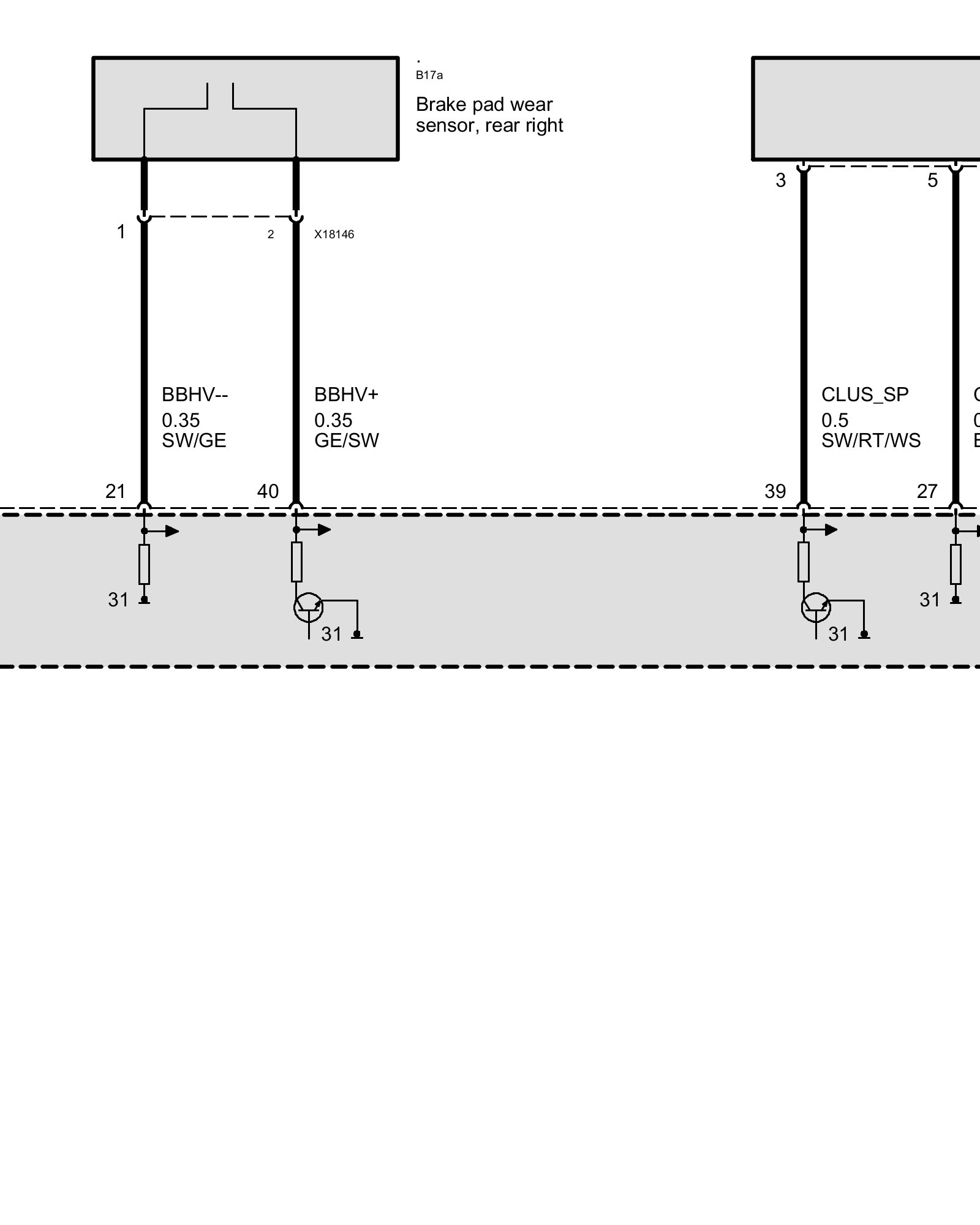

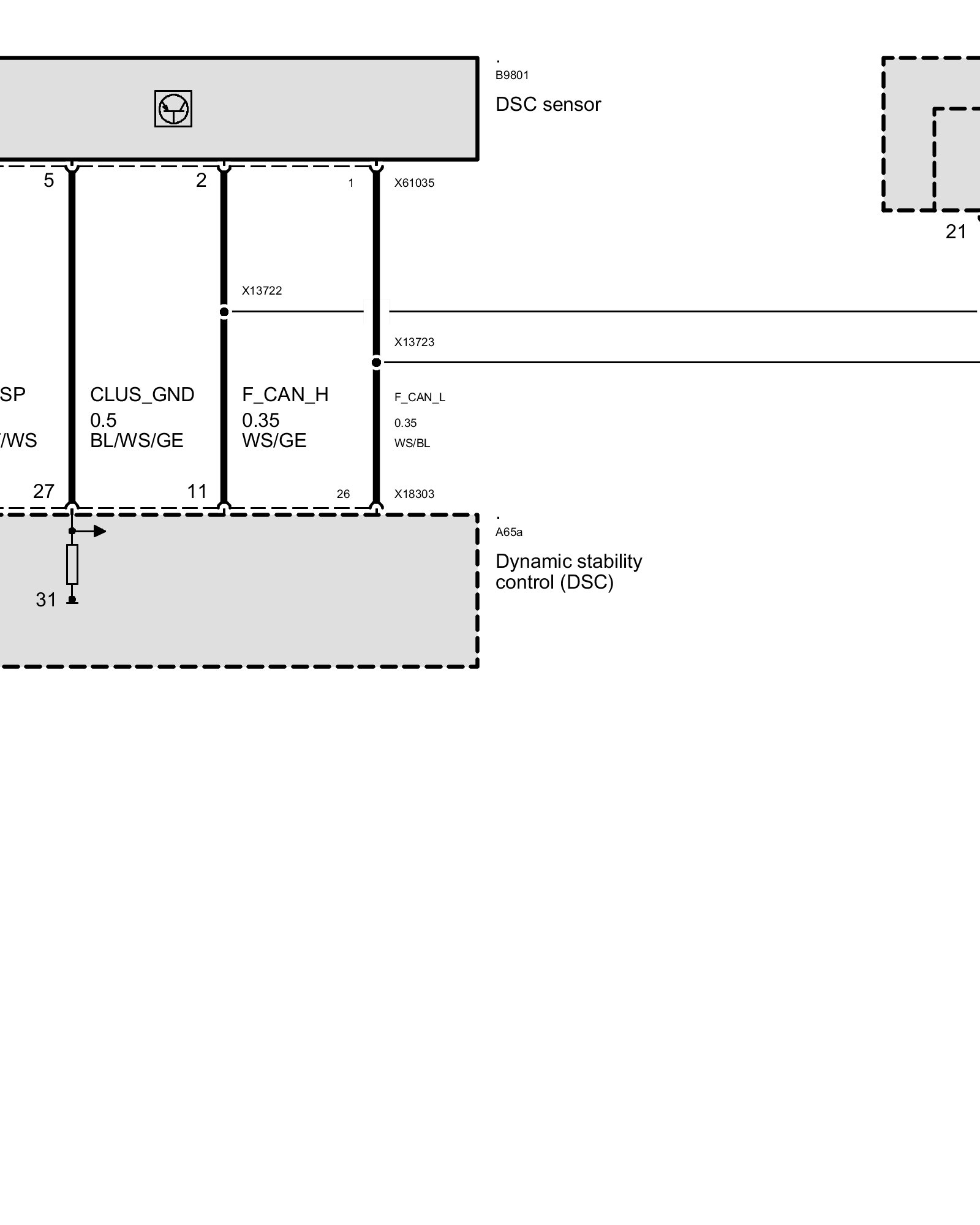

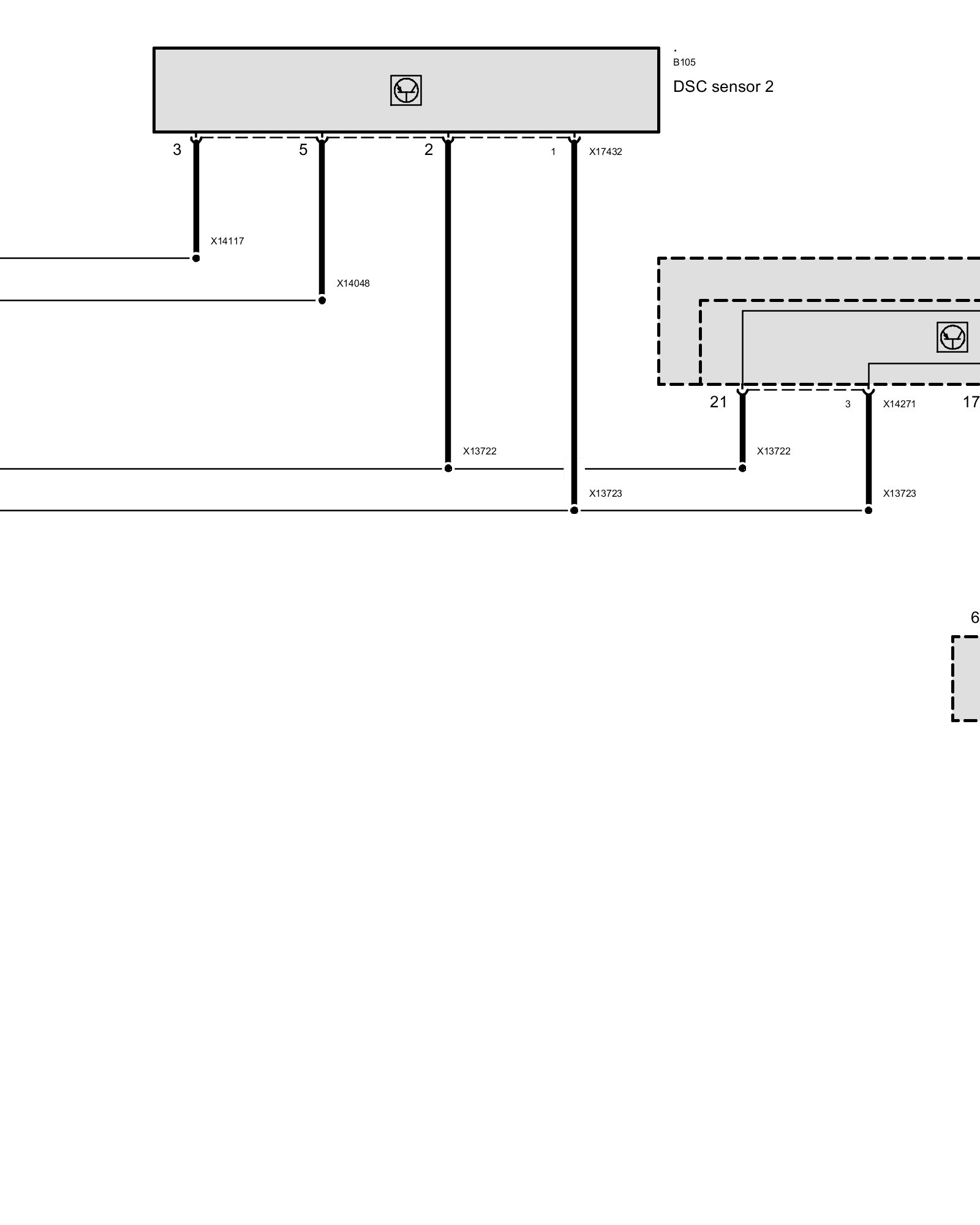

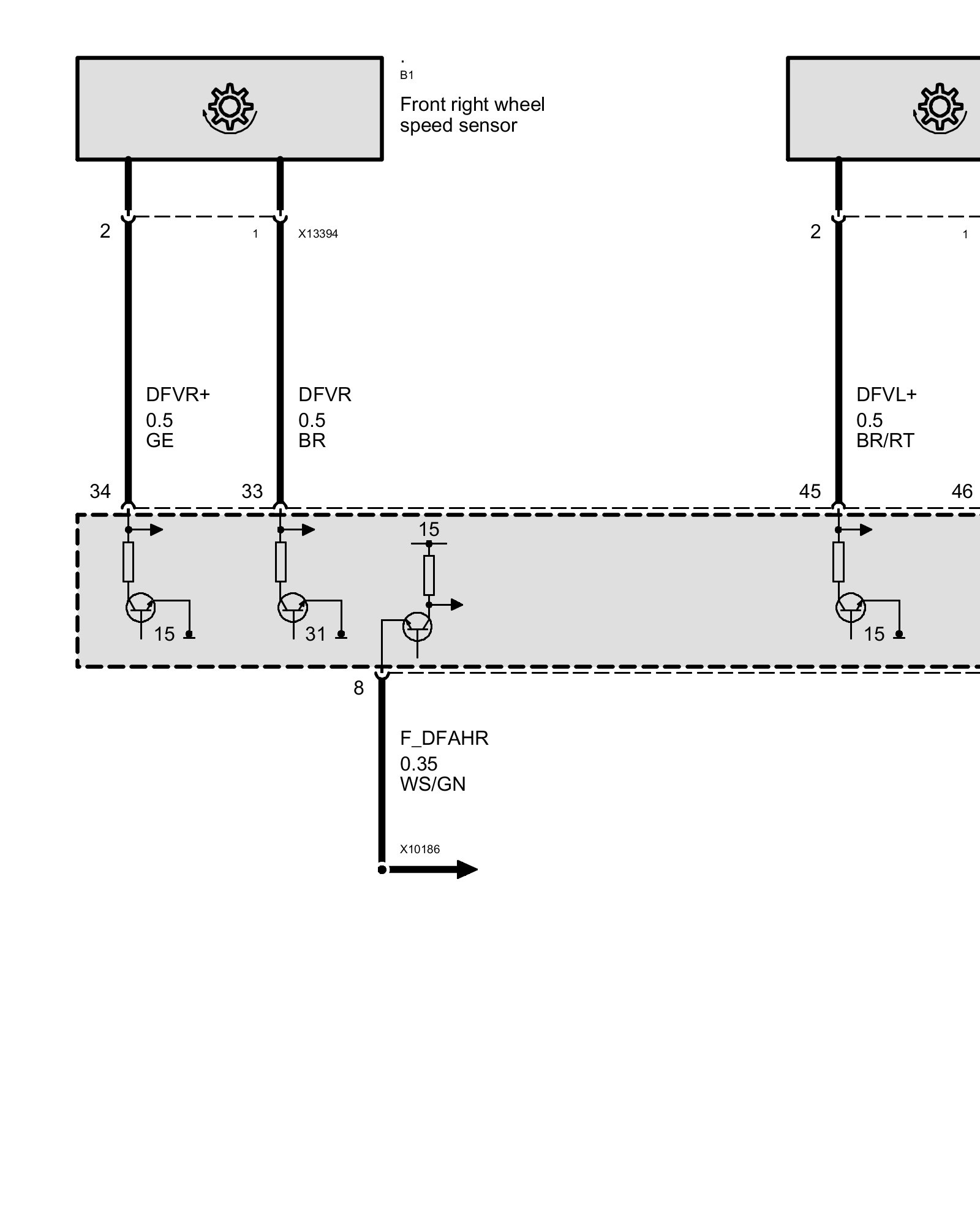

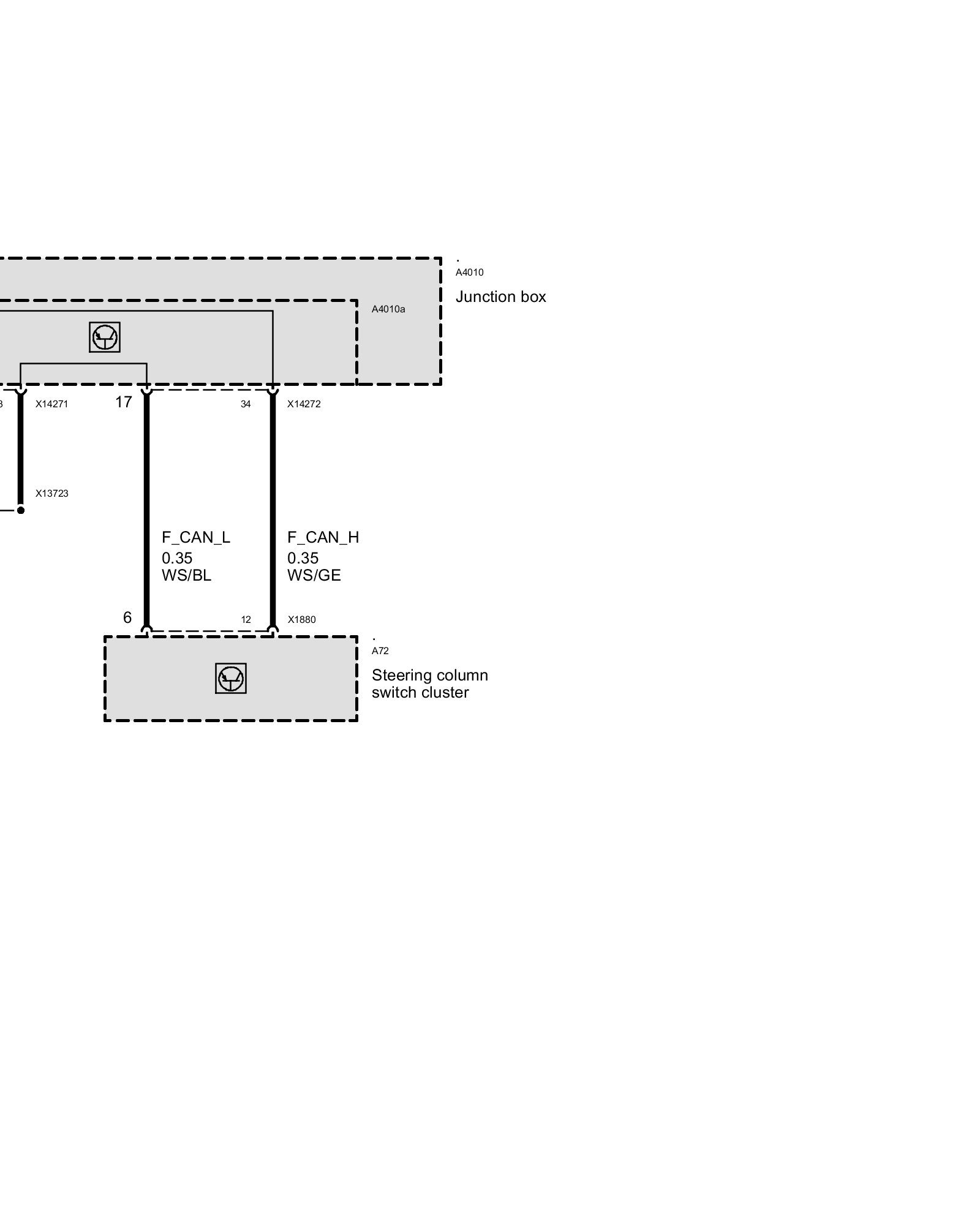

Sensor System

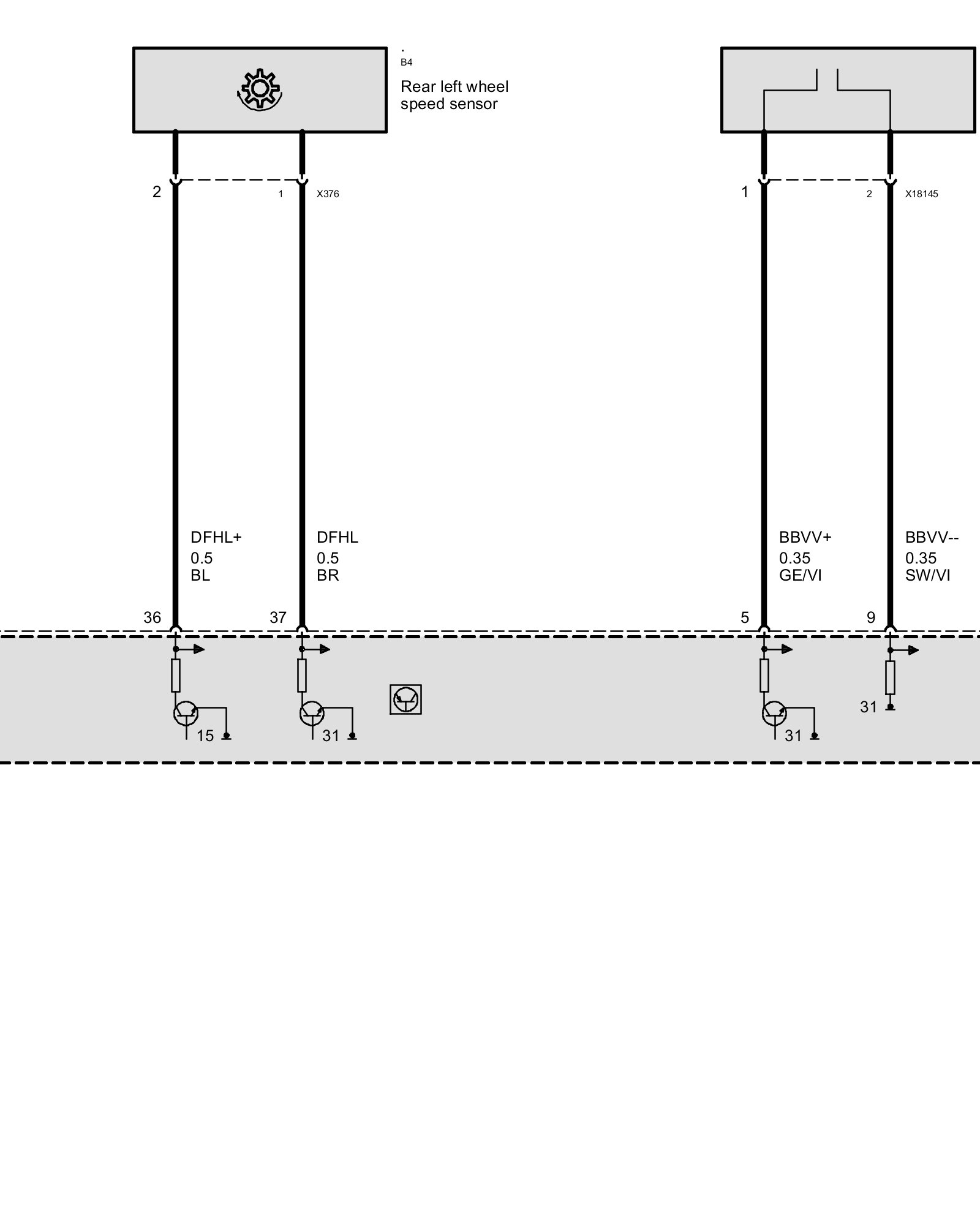

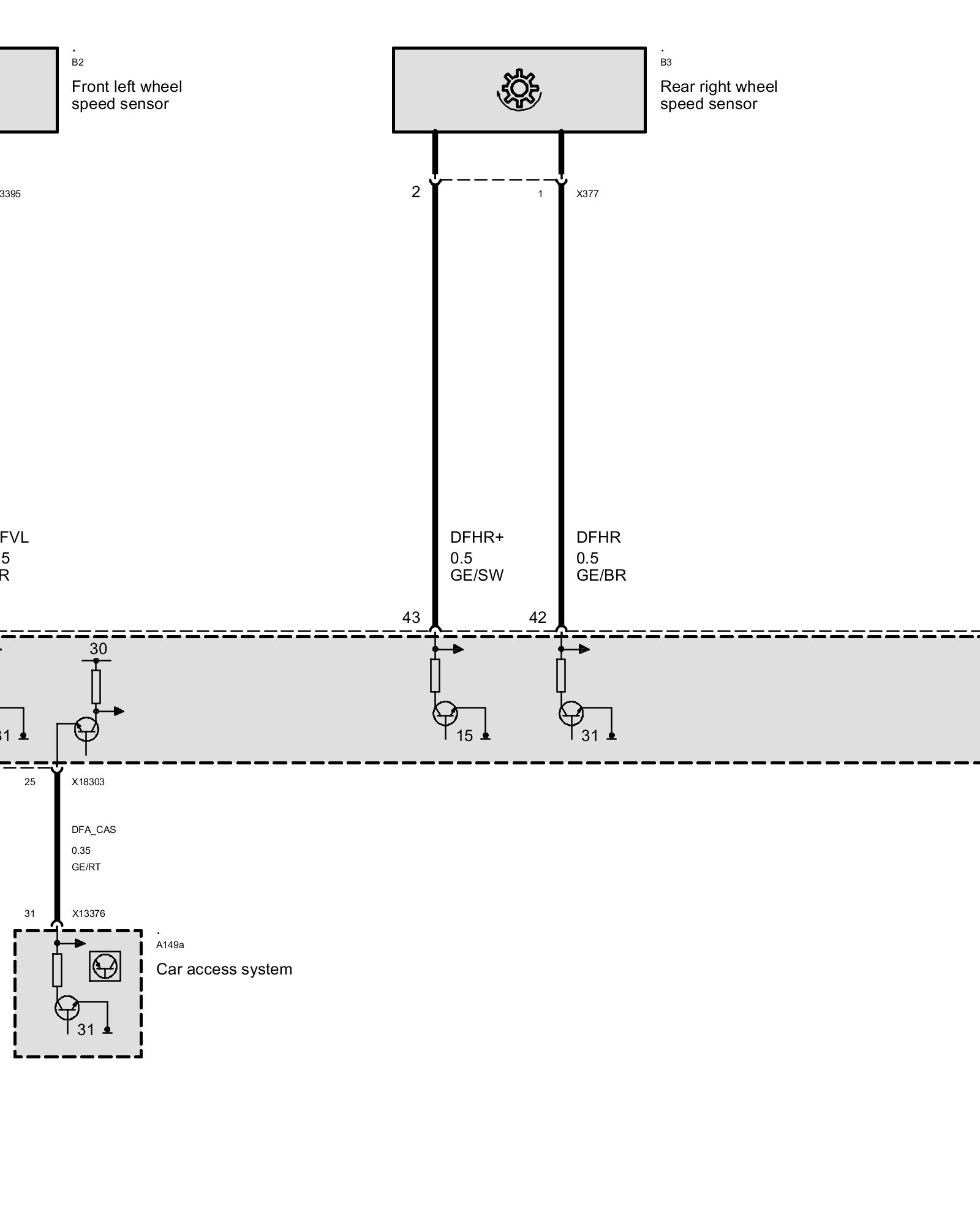

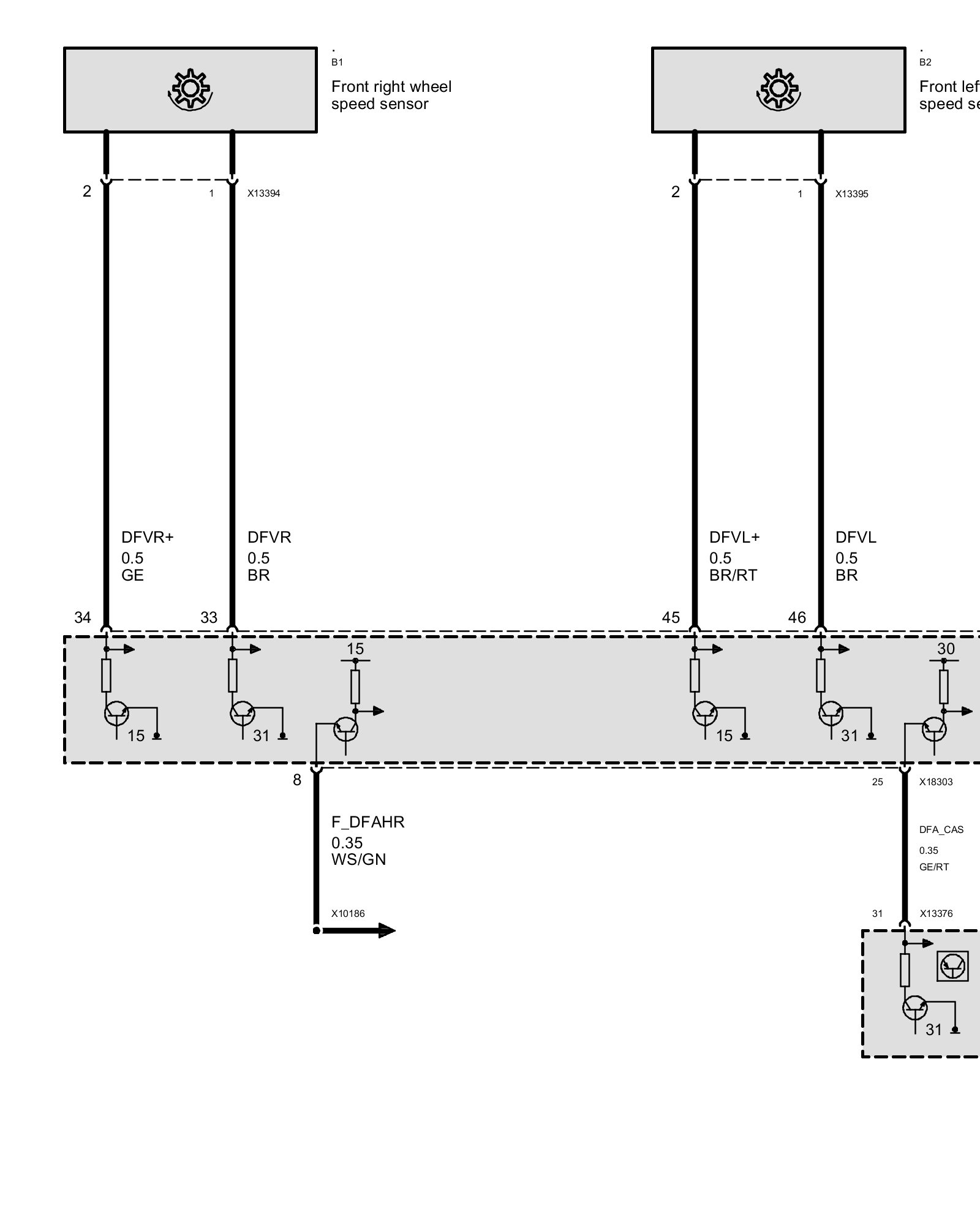

As of 09/07 Without AL Active Front Steering (AFS70)

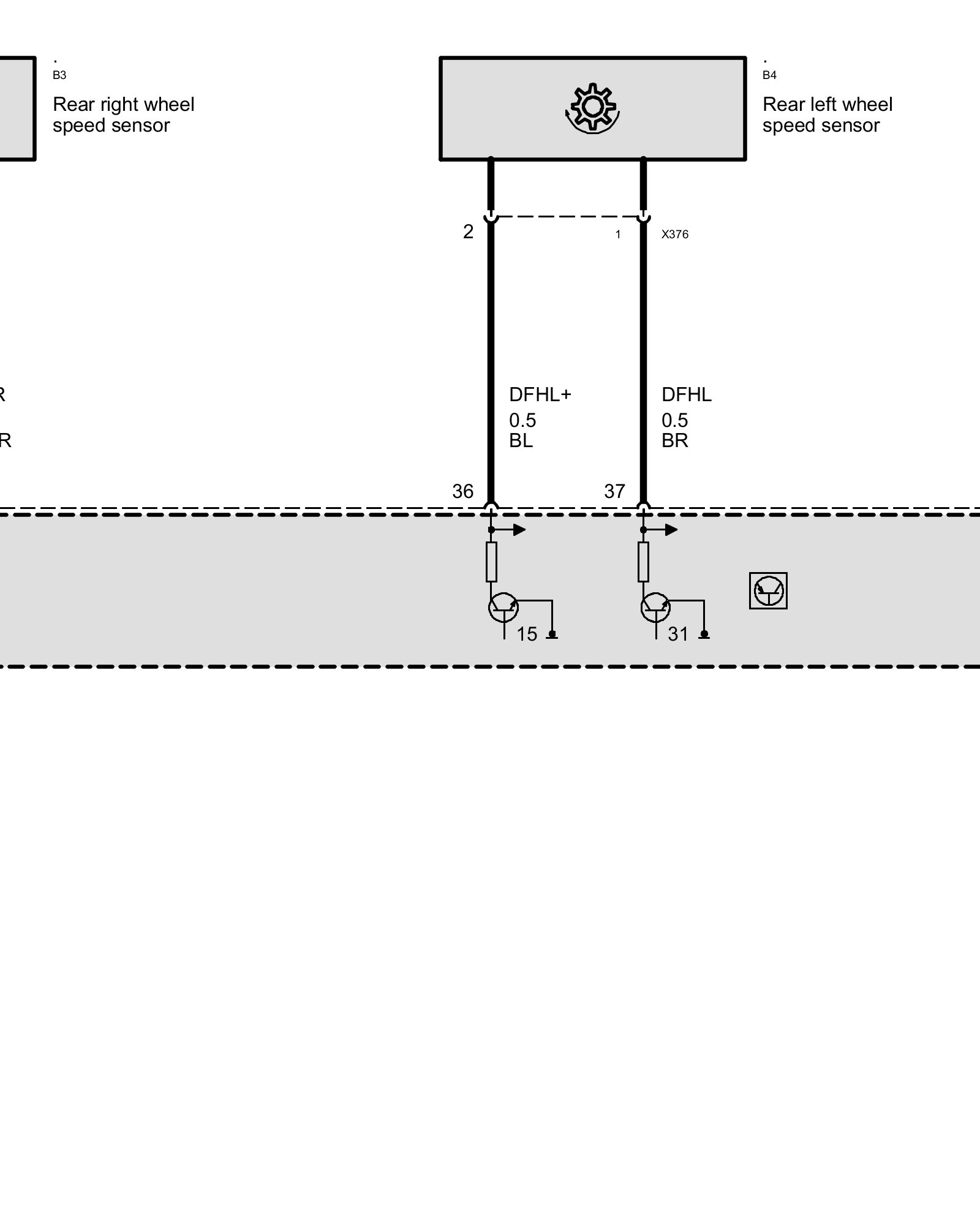

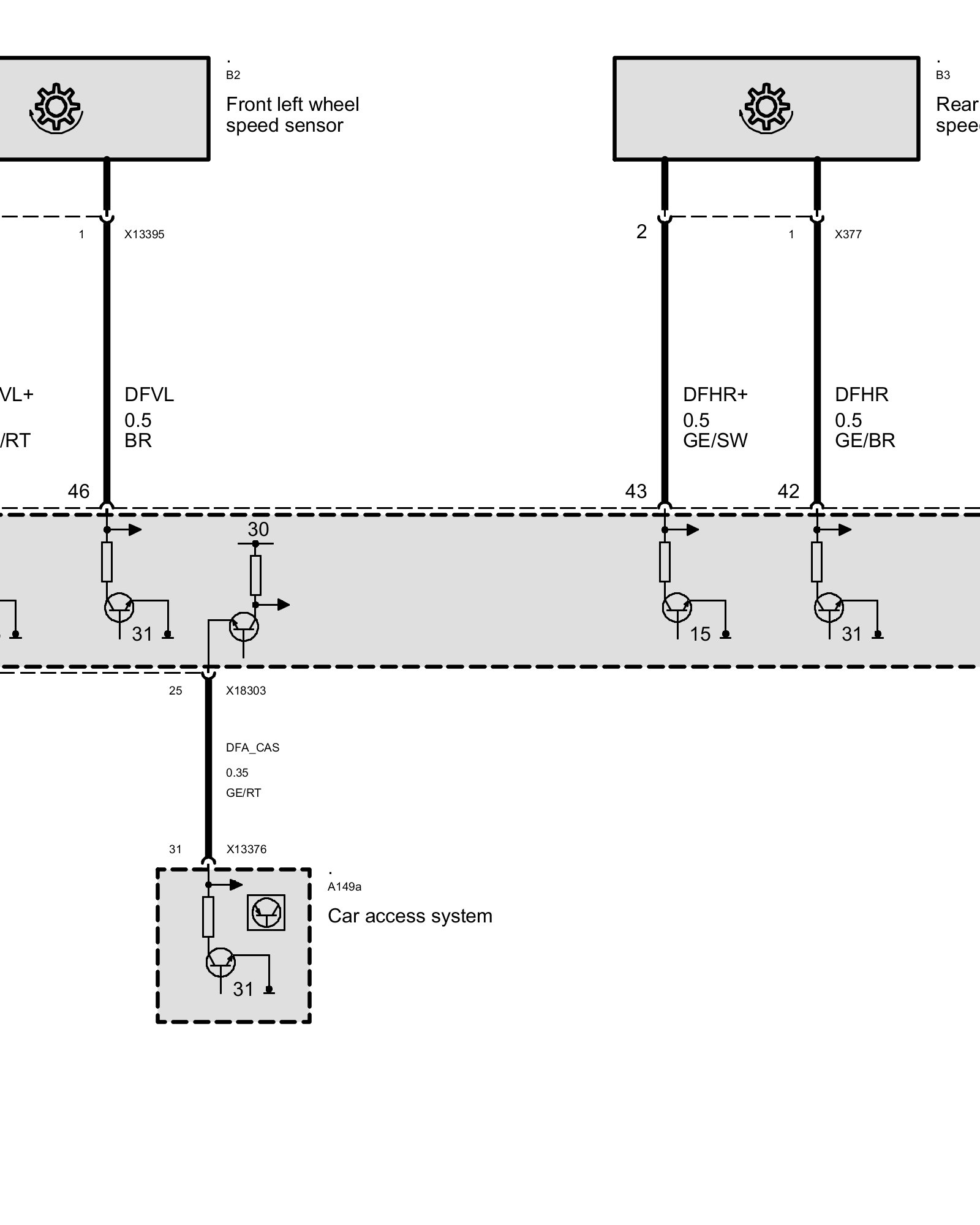

As of 09/07 With AL Active Front Steering (AFS70)
