Home >> BMW >> 2008 >> 135i Convertible (E88) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Parking Assist Control Module >> A81A Park Distance Control (PDC) (1 Series_E81/E82/E87/E88 As of 09/07)

A81A Park Distance Control (PDC) (1 Series_E81/E82/E87/E88 As of 09/07)



A81A Park Distance Control (PDC)

A81A Park Distance Control (PDC) (1 Series_E81/E82/E87/E88 As of 09/07)

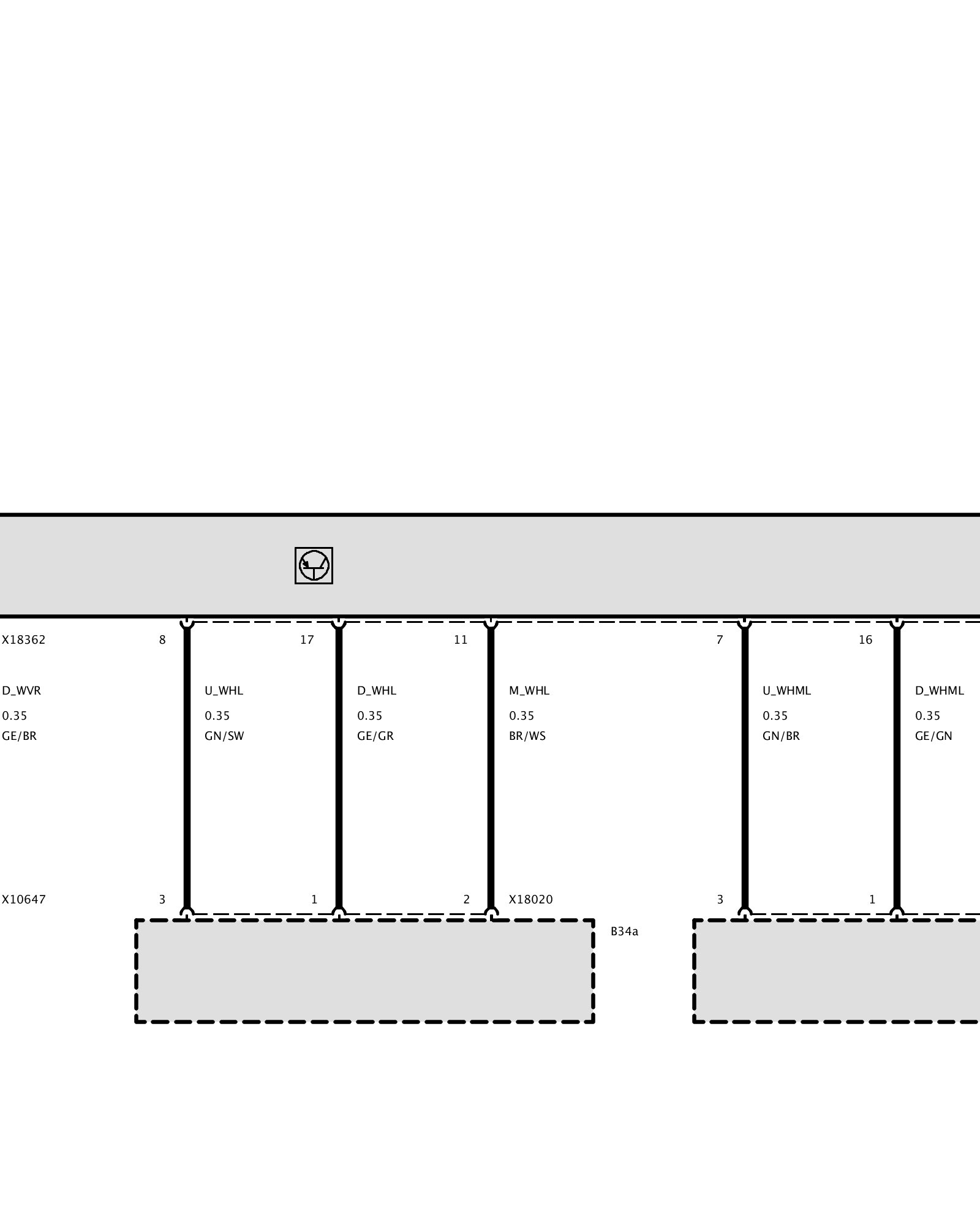

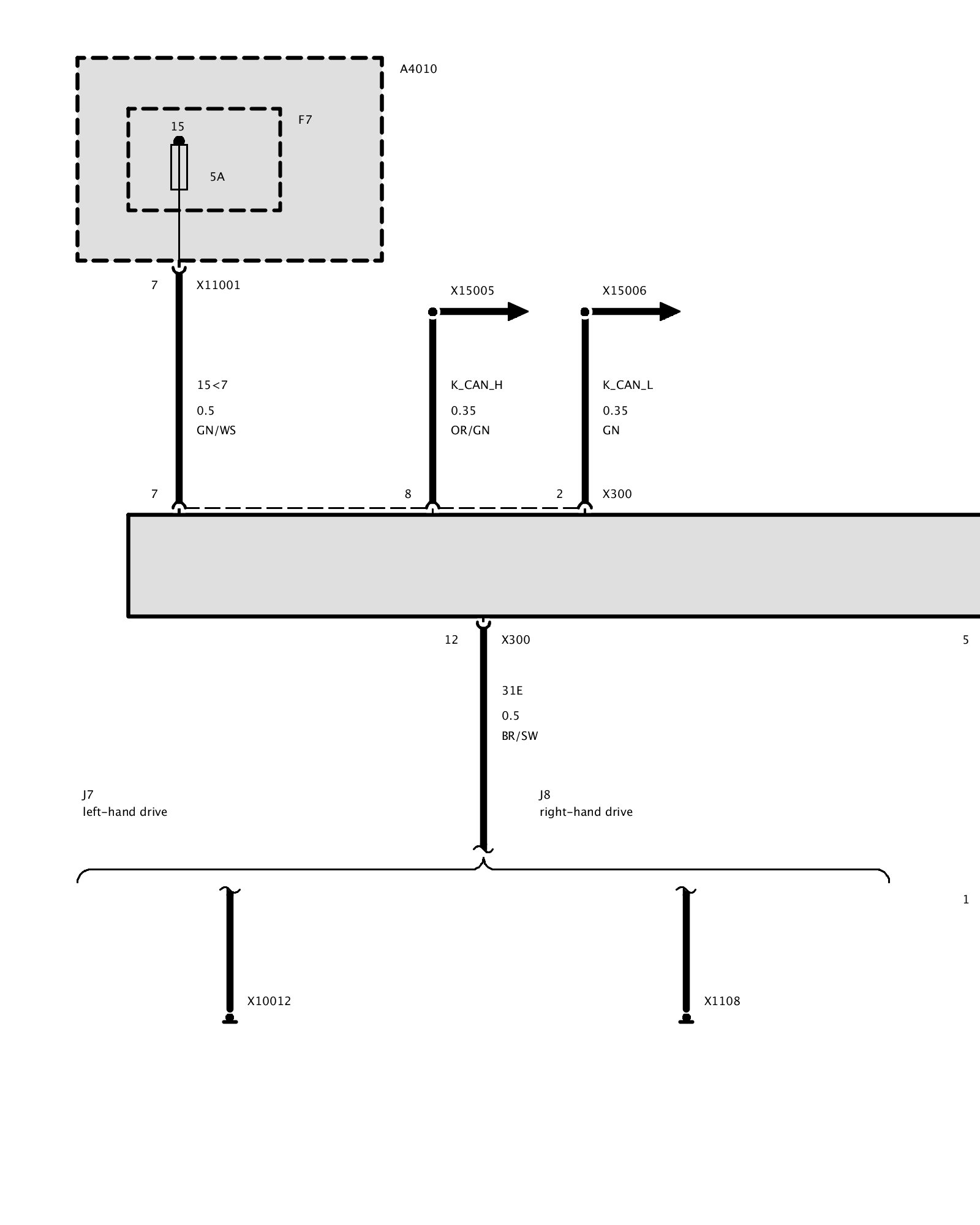

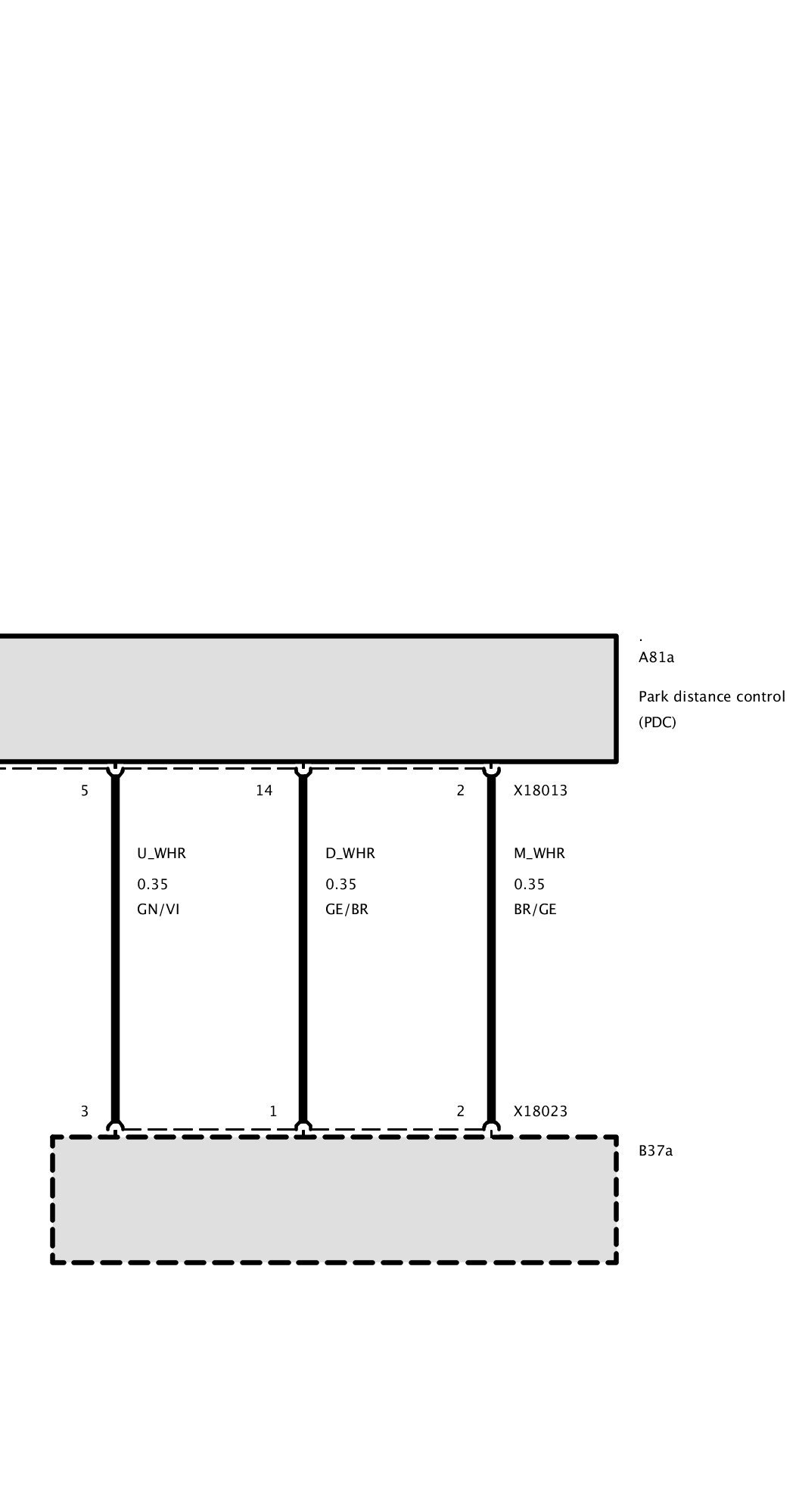

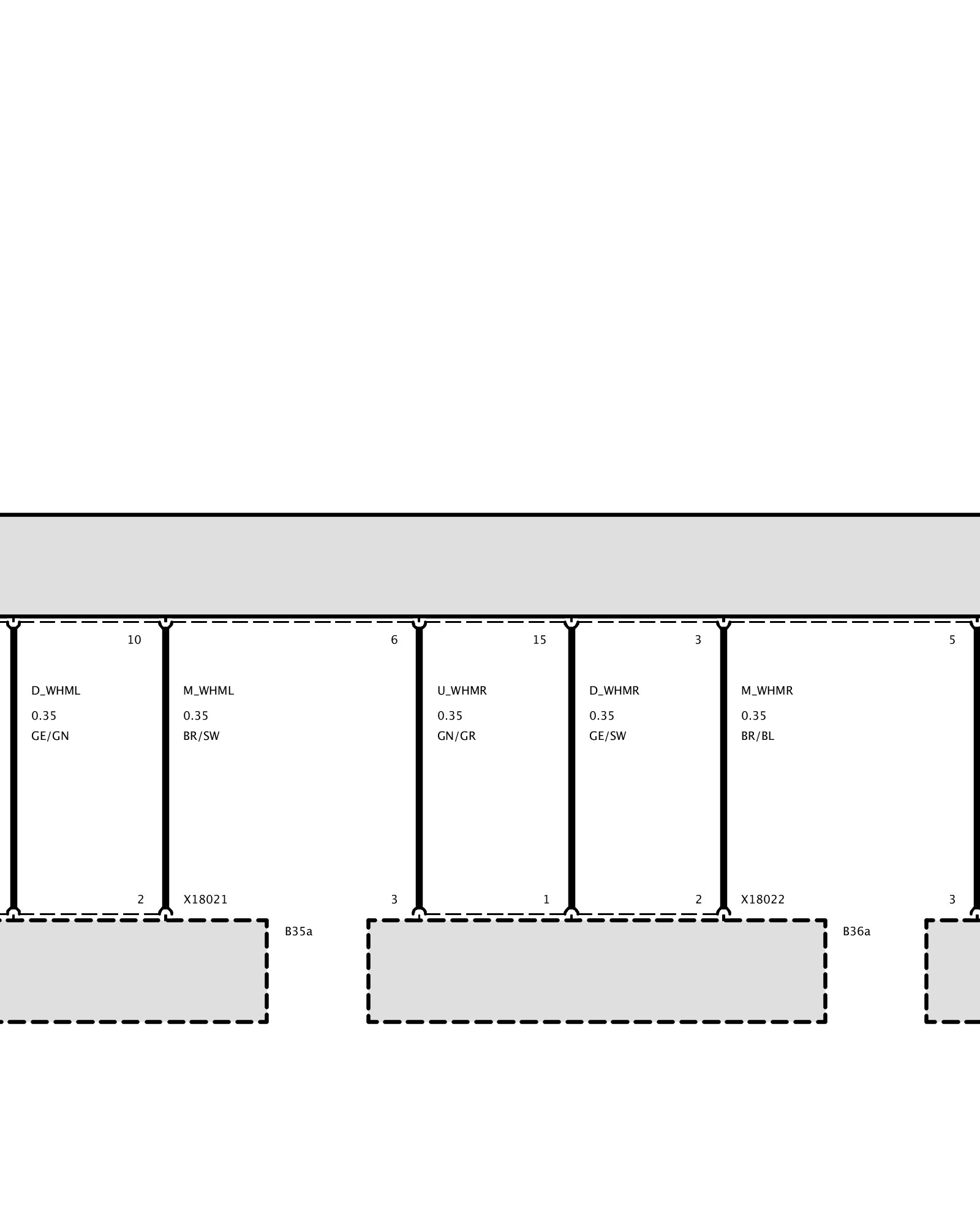

Part 1:




Part 2:




Part 3:




Part 4:




Part 5:
