135i Convertible (E88) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Cellular Phone
>>

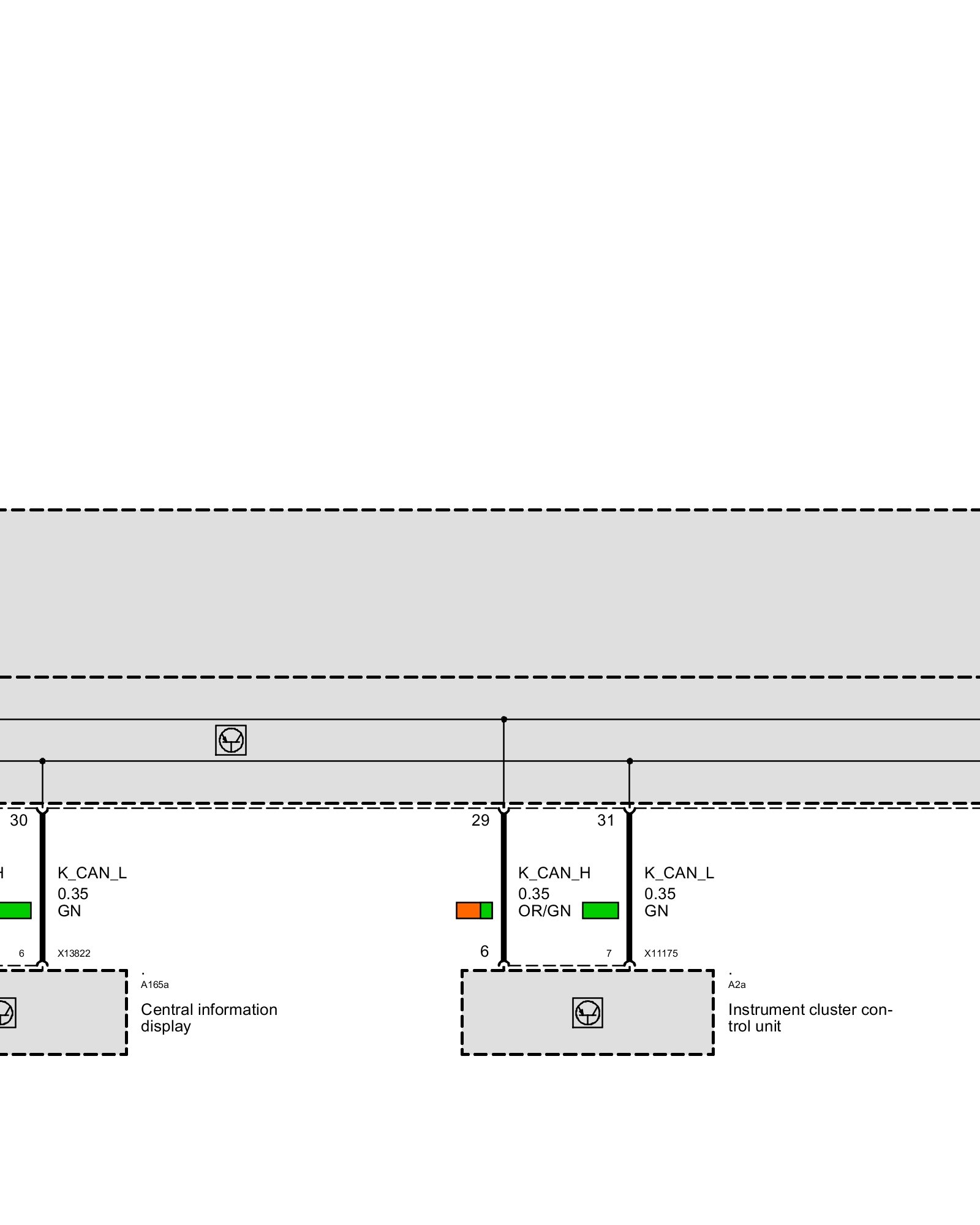

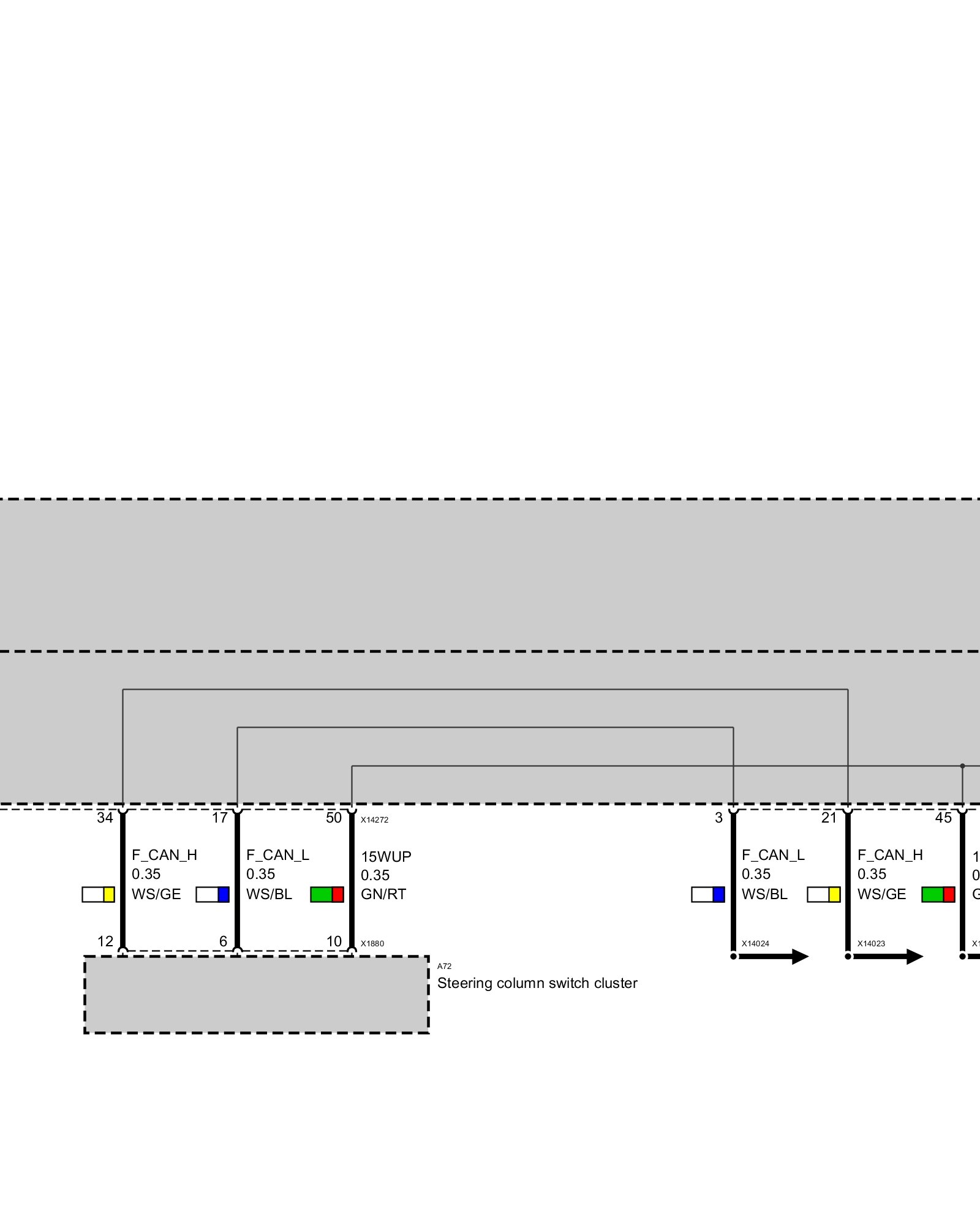

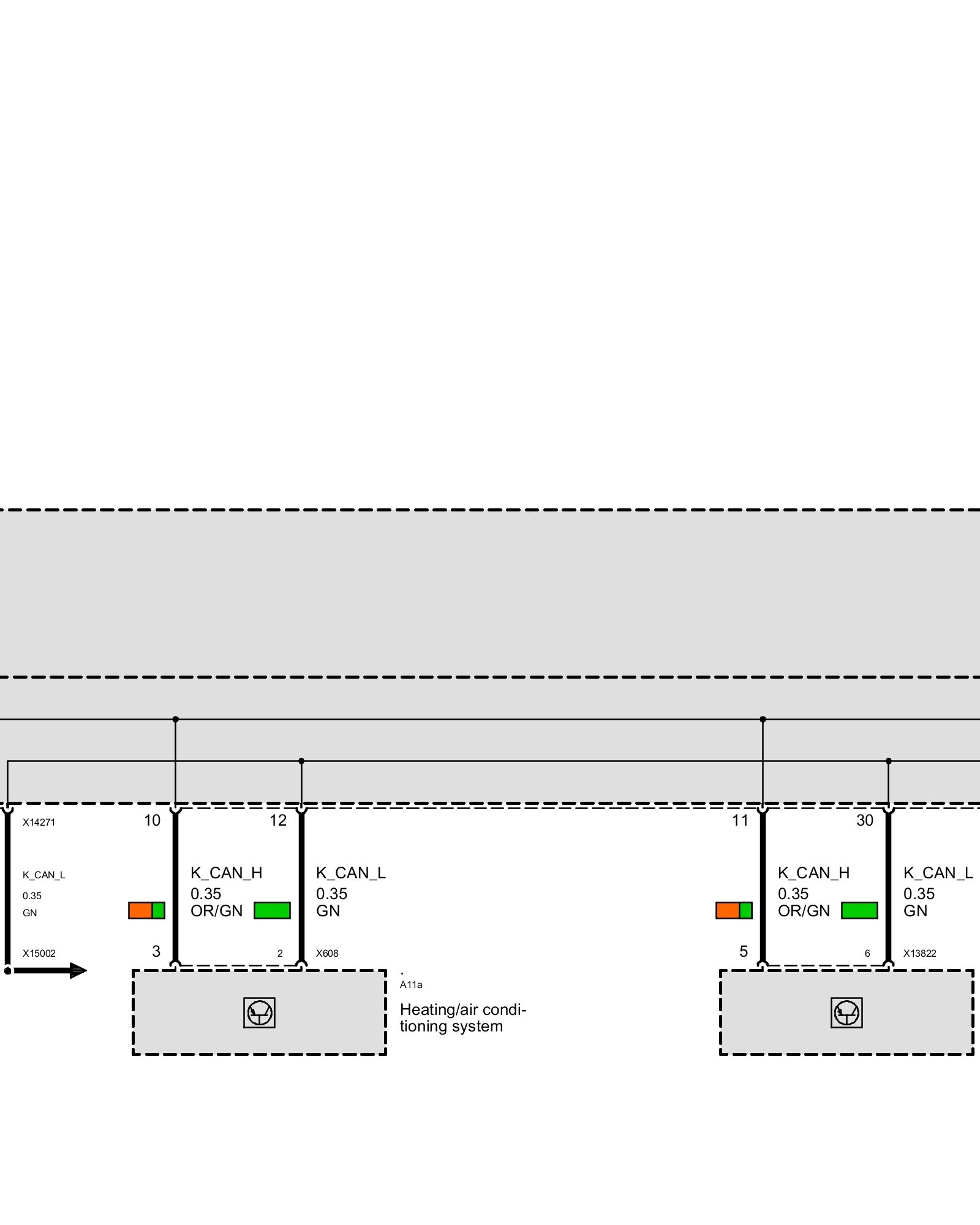

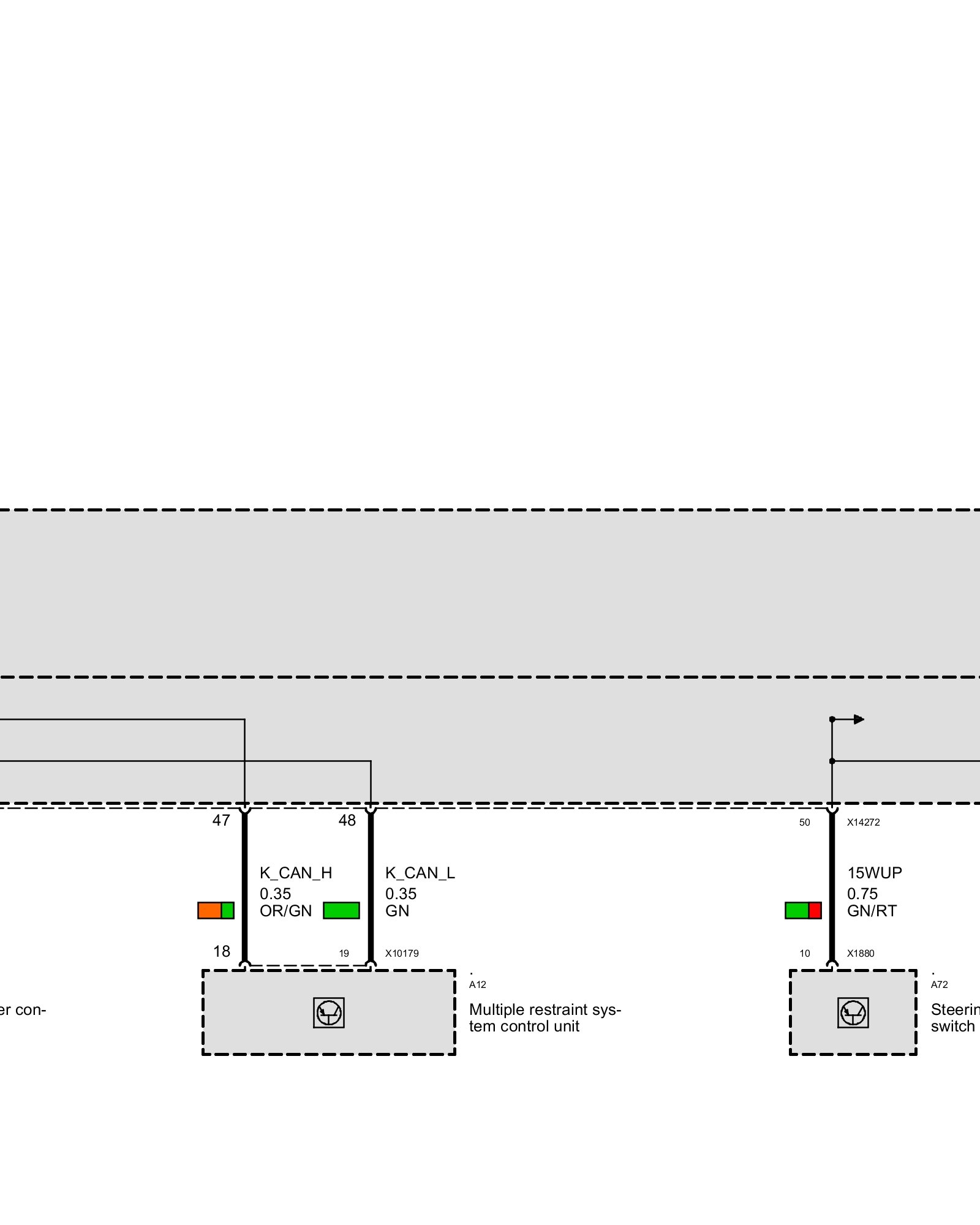

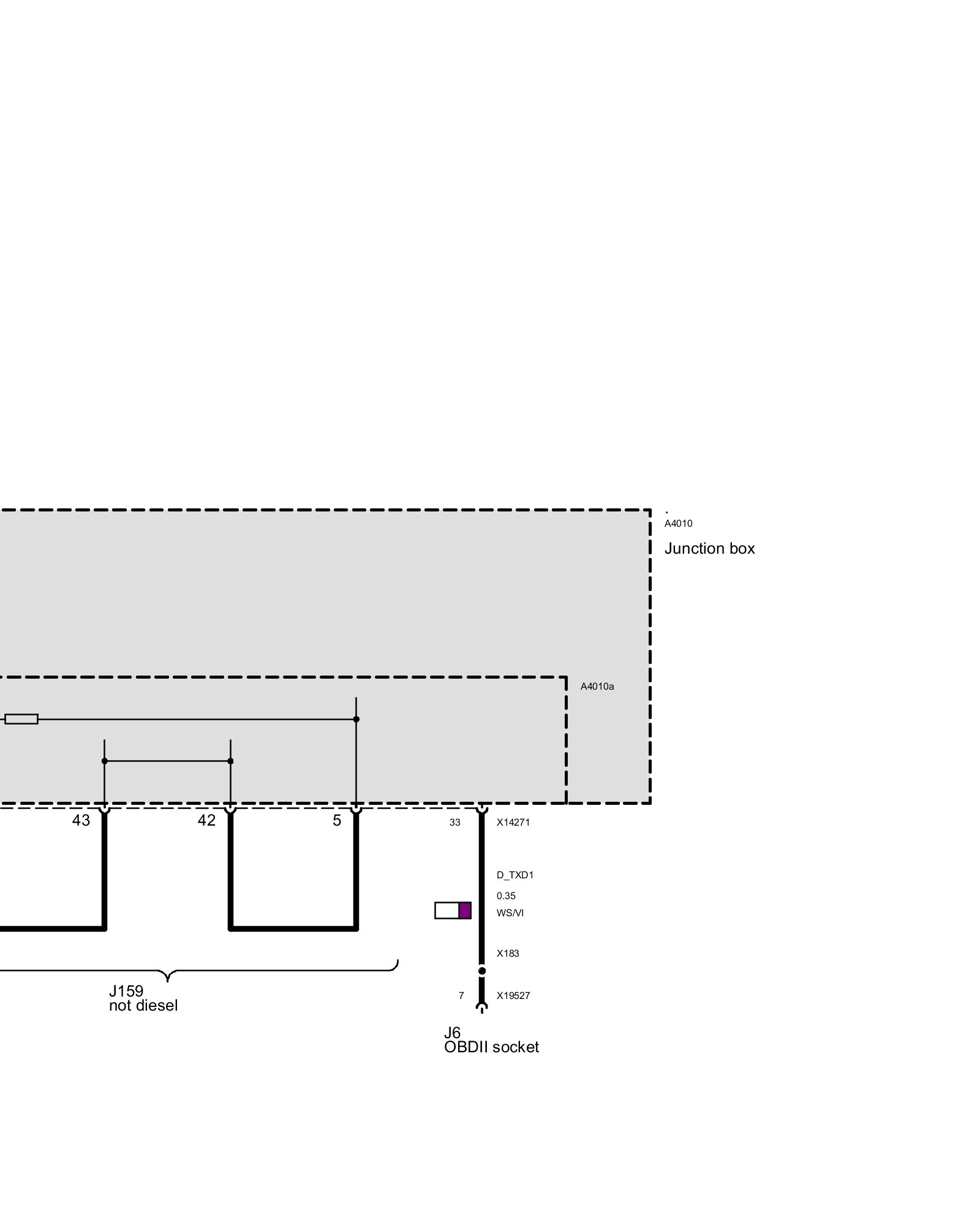

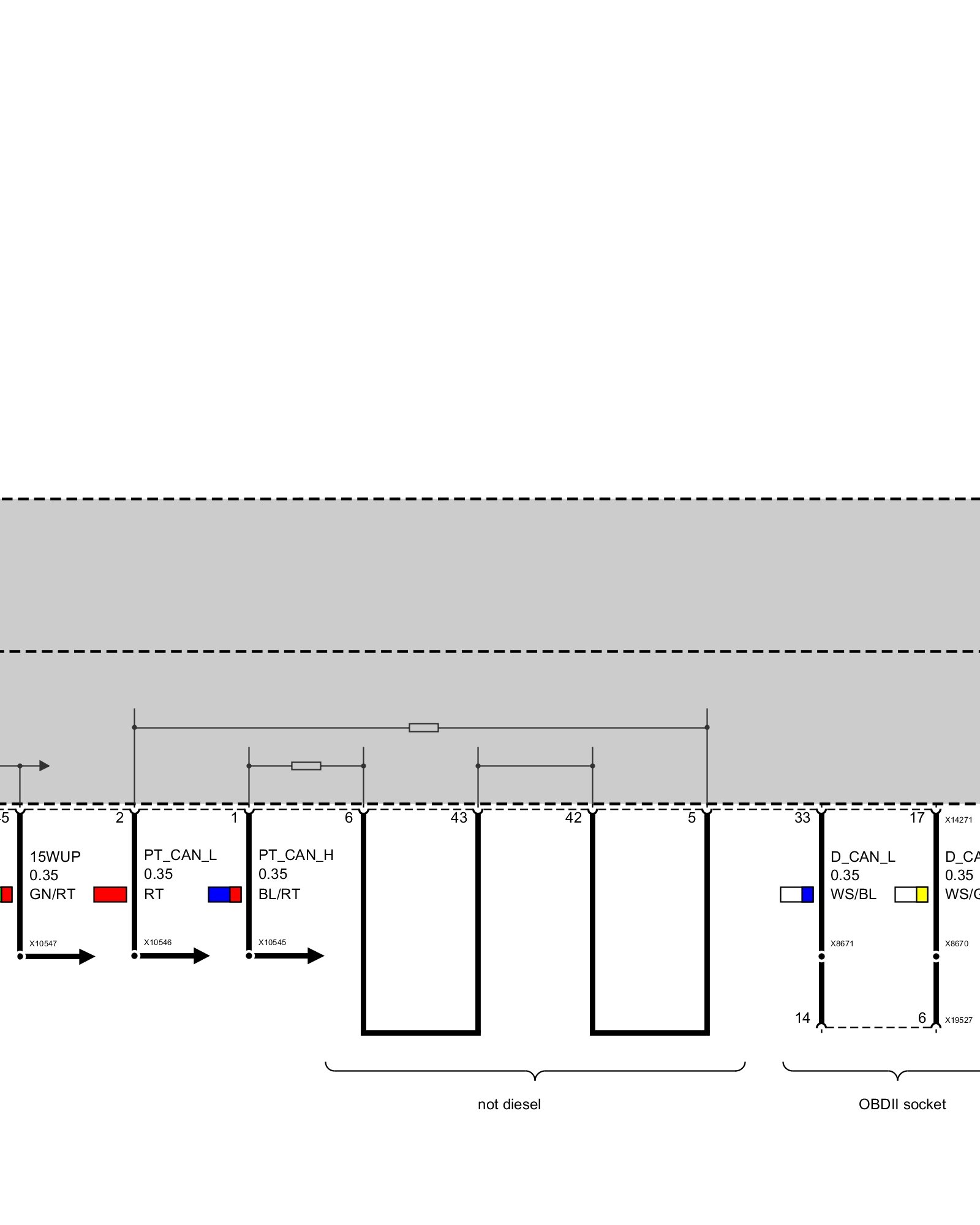

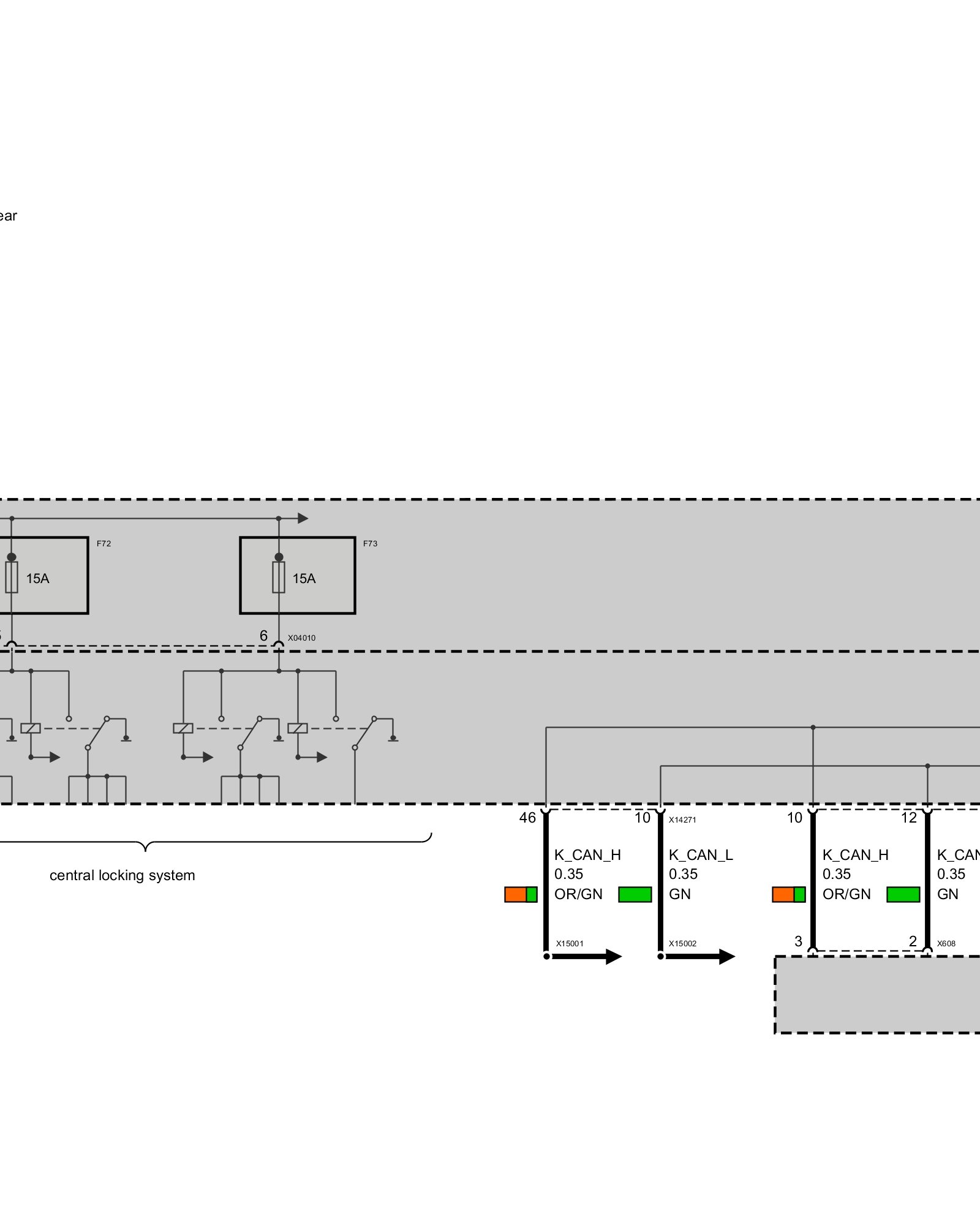

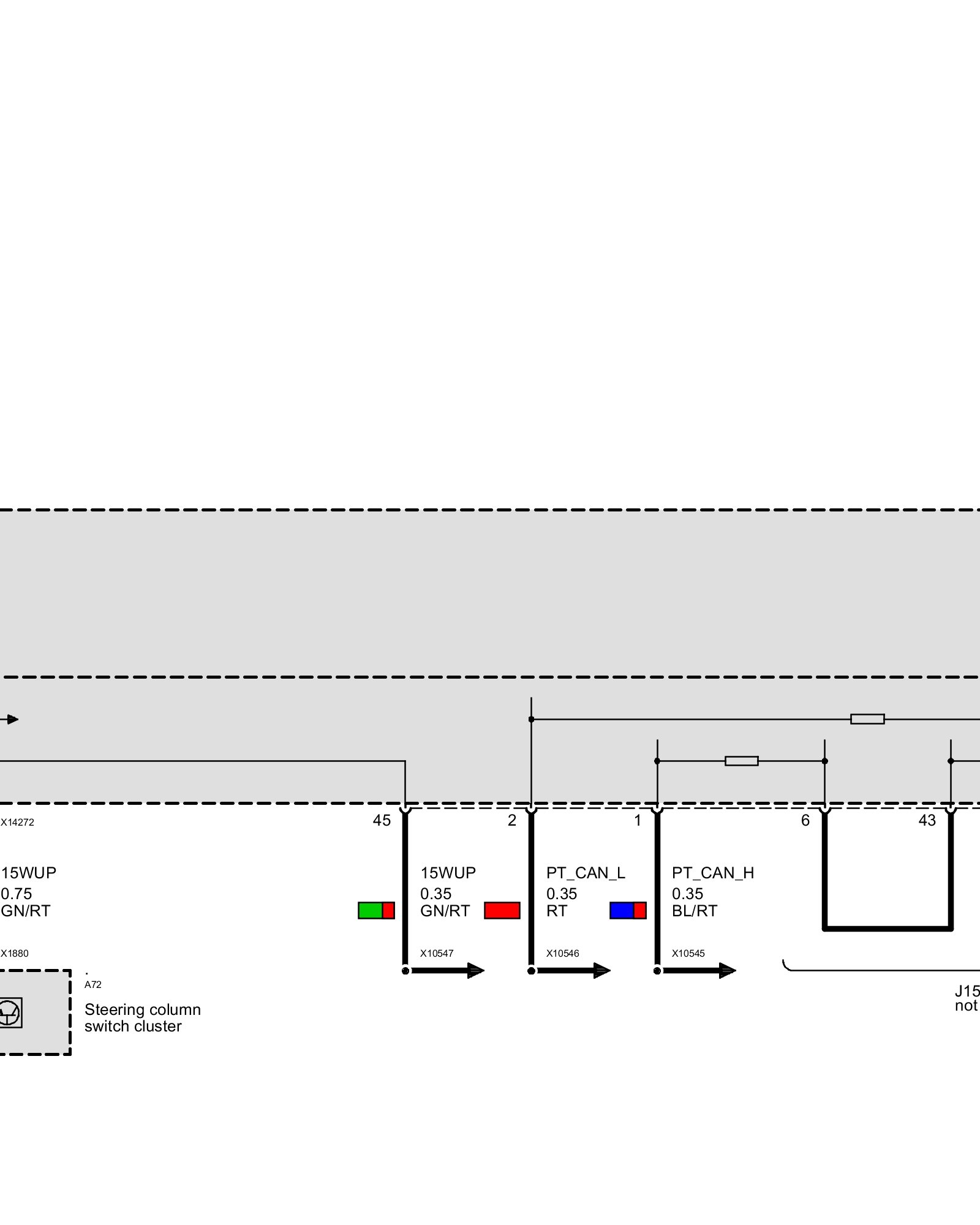

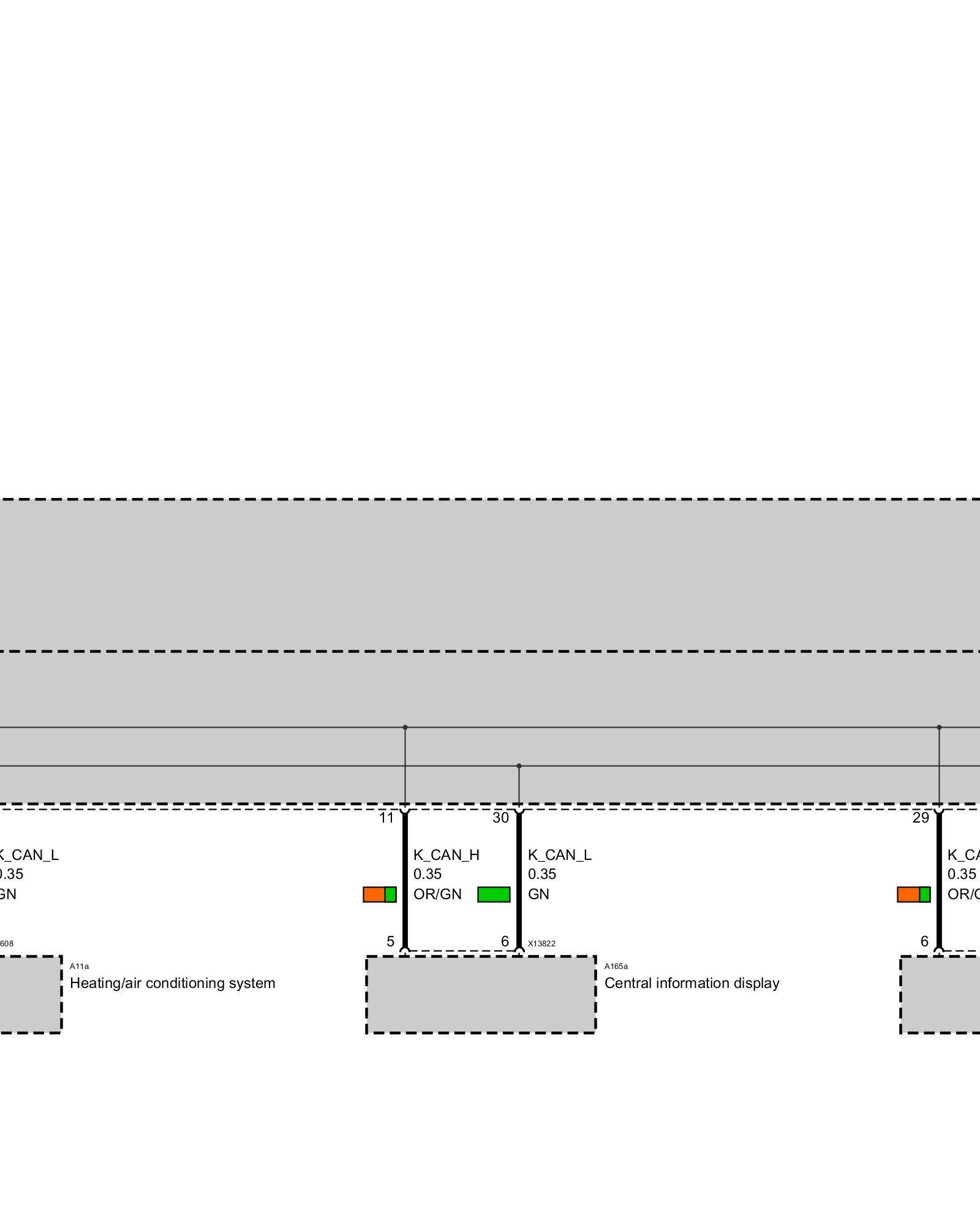

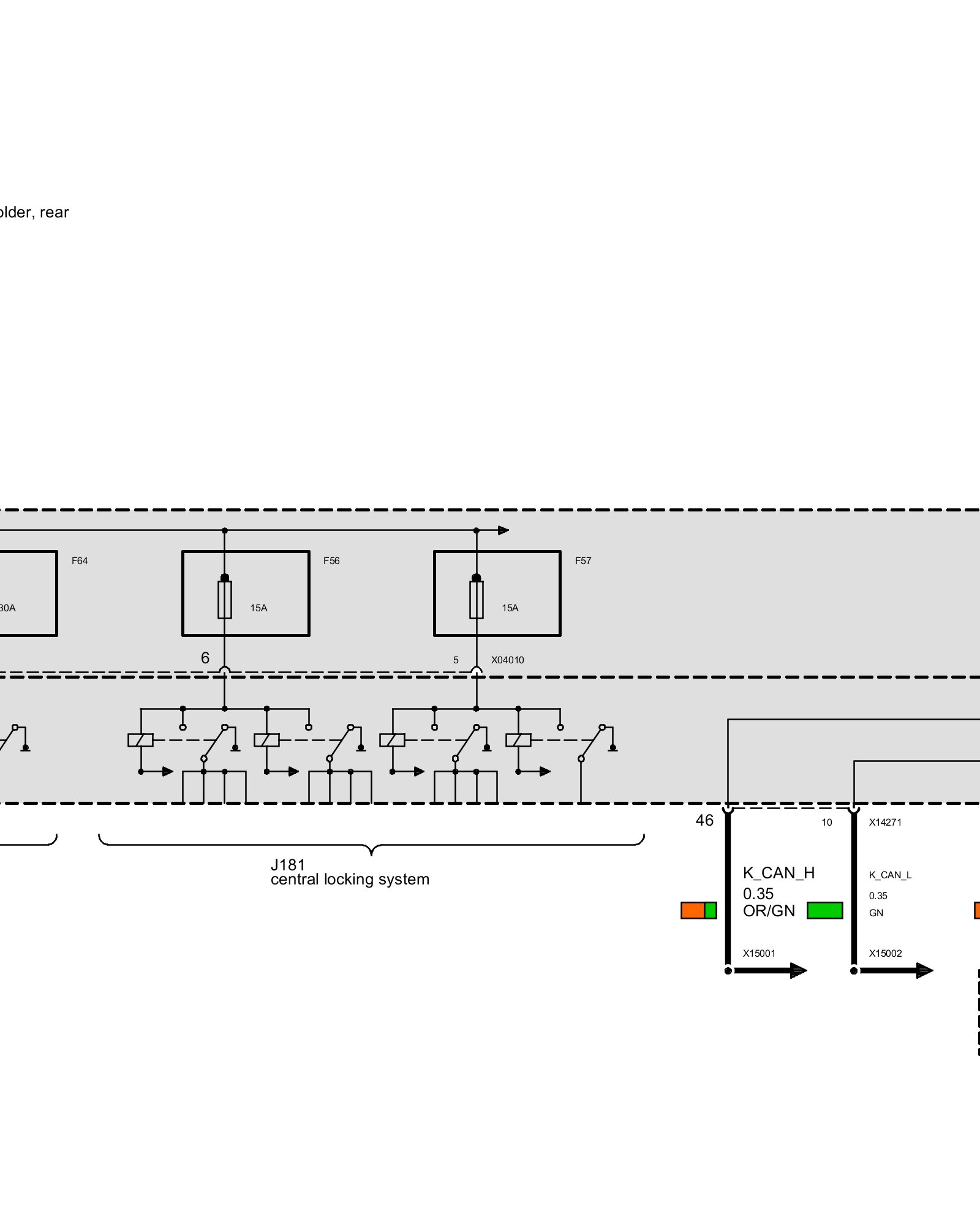

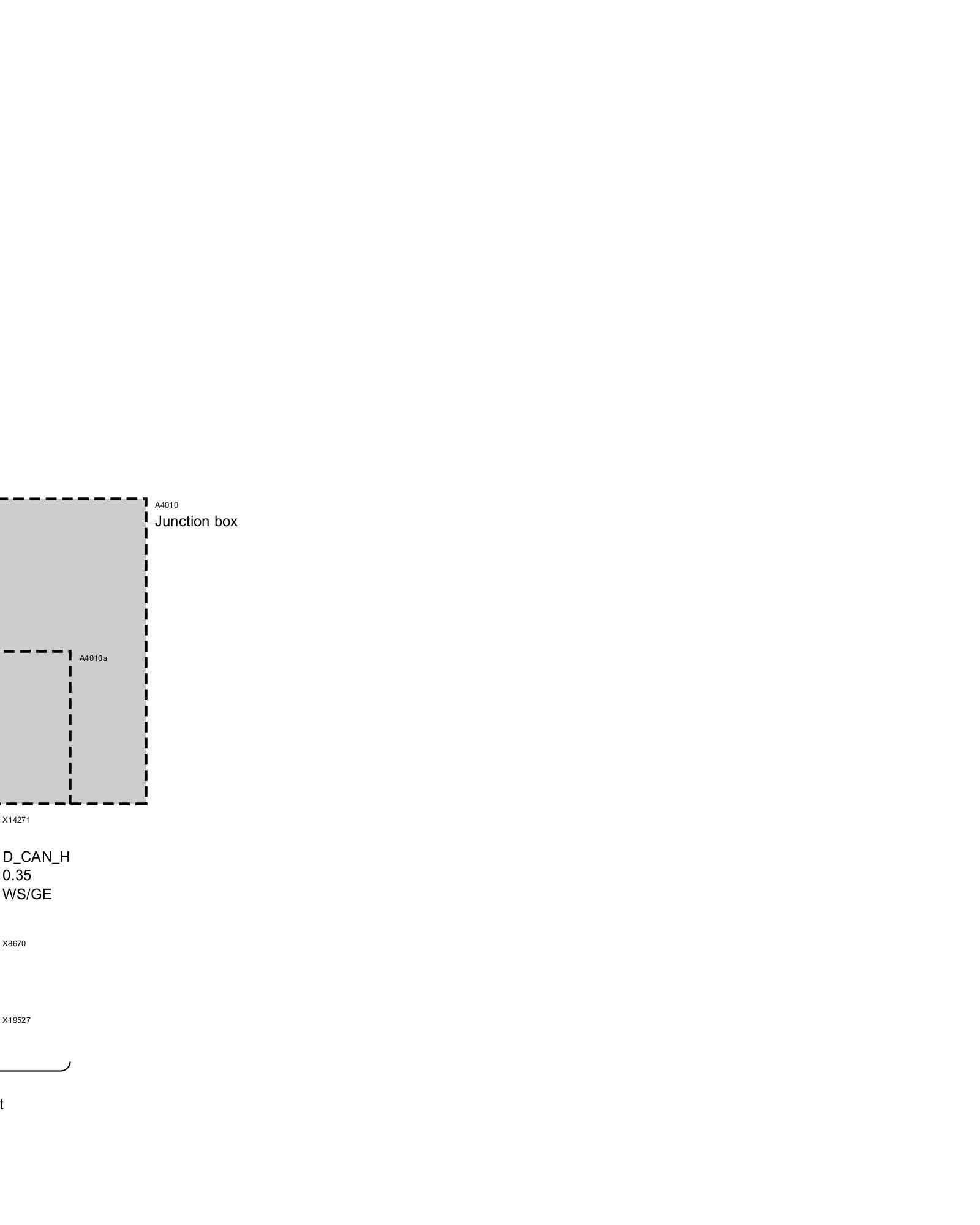

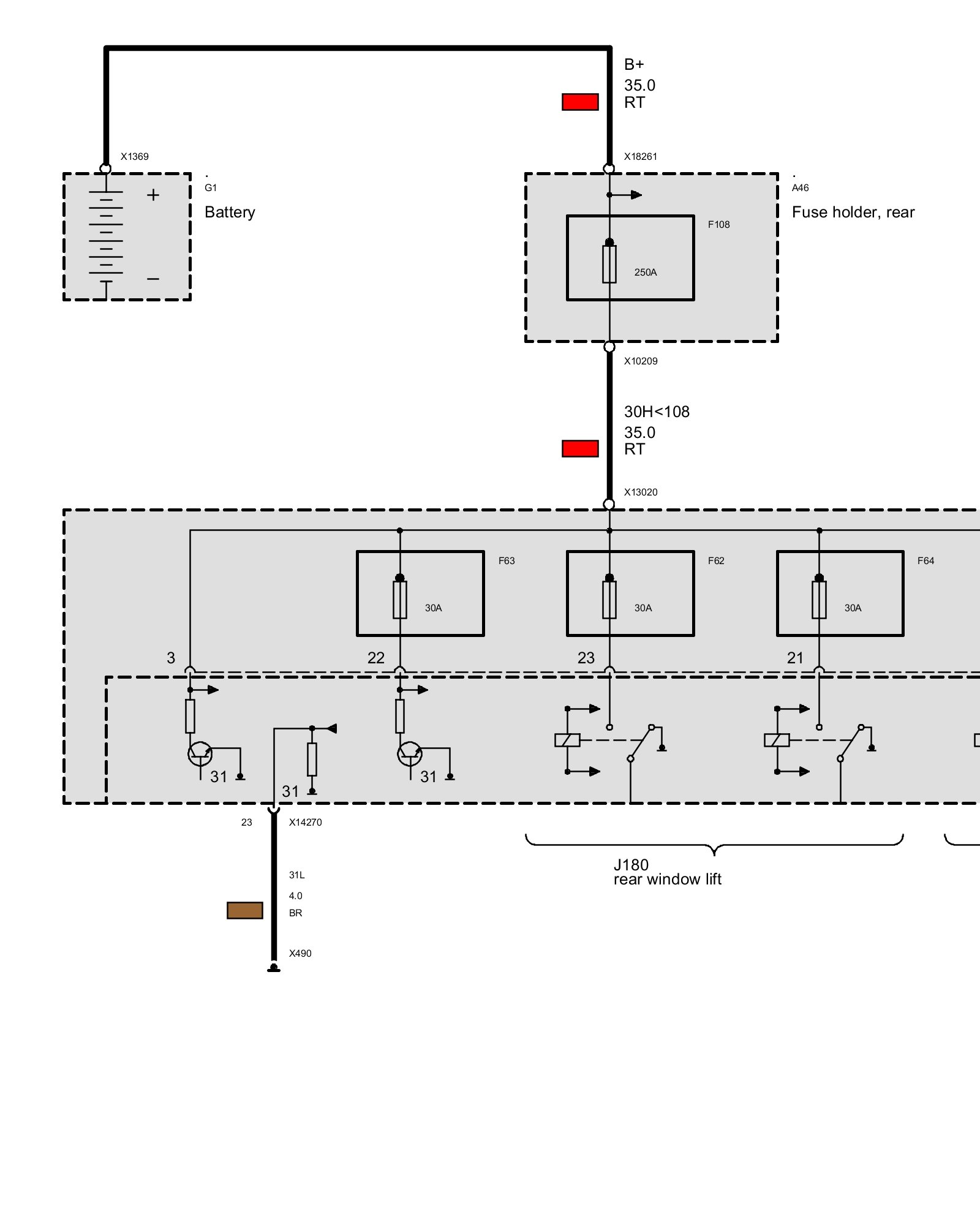

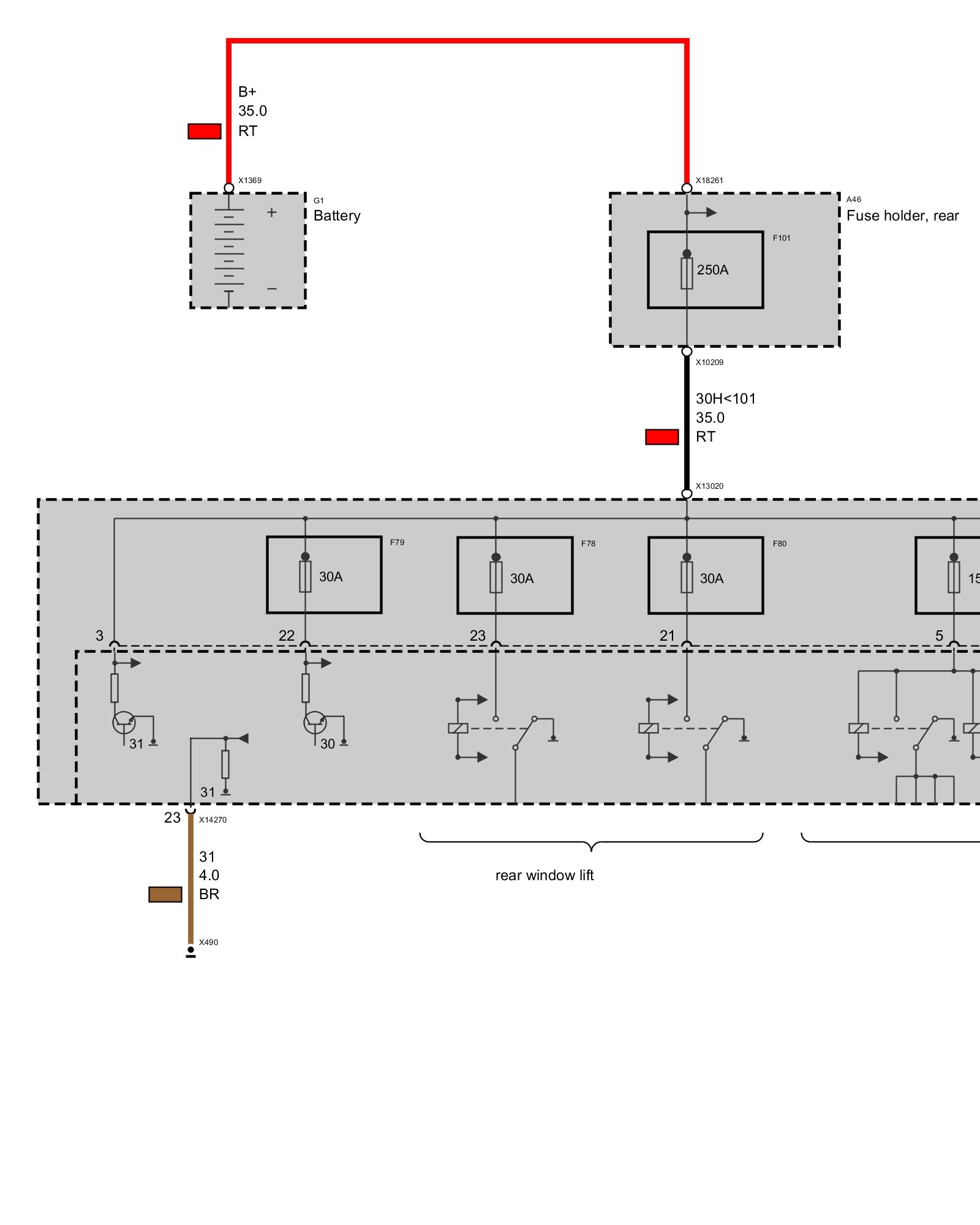

Power Supply JBE Junction Box, Electronics
Power Supply JBE Junction Box, Electronics
Power Supply JBE Junction Box, Electronics
