A149A Car Access System (1 Series_E81/E82/E87/E88 With (As of 2004_12 Up to 2007_03))



A149A Car Access System

A149A Car Access System (1 Series_E81/E82/E87/E88 with (as of 2004_12 up to 2007_03))

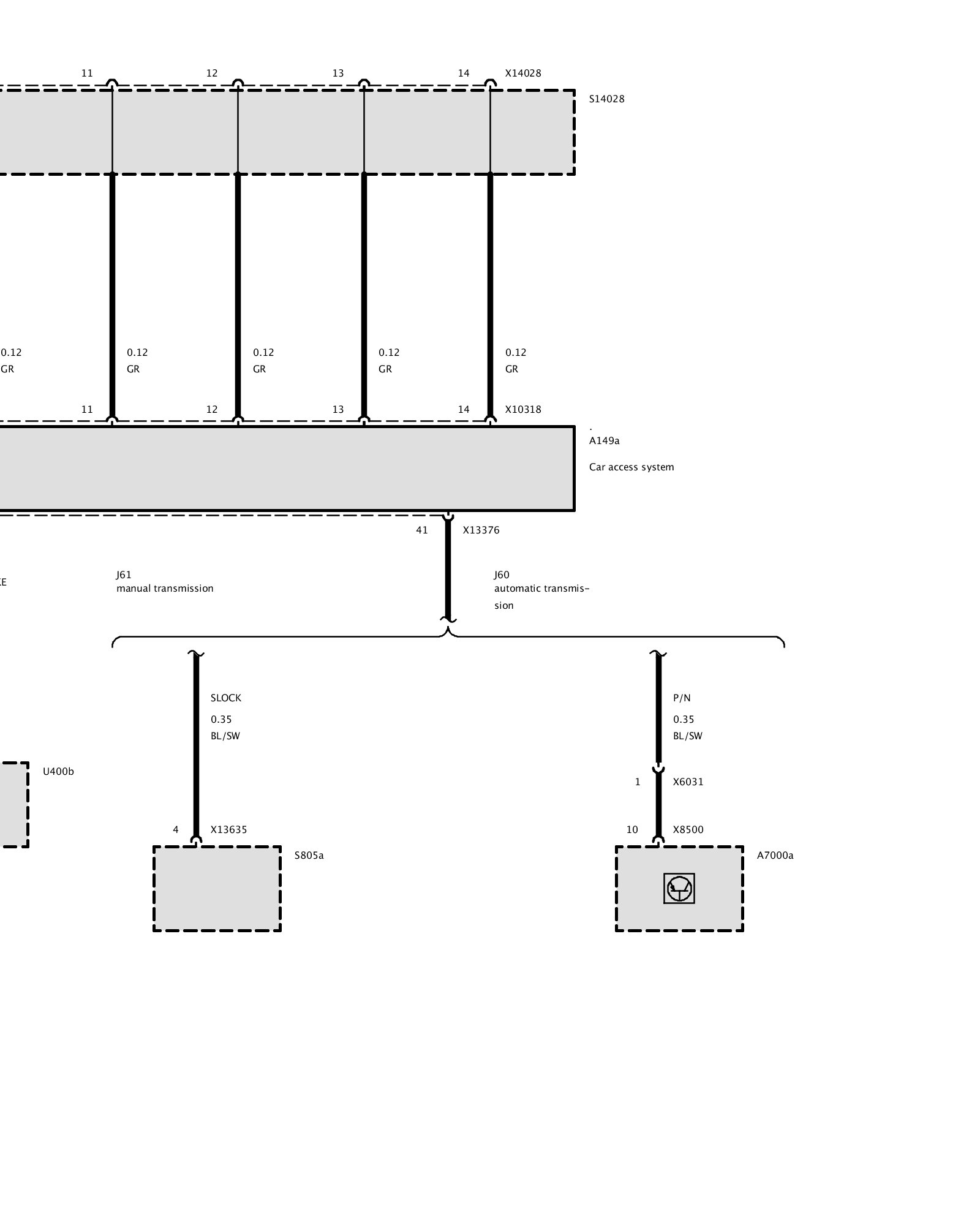

Part 1:

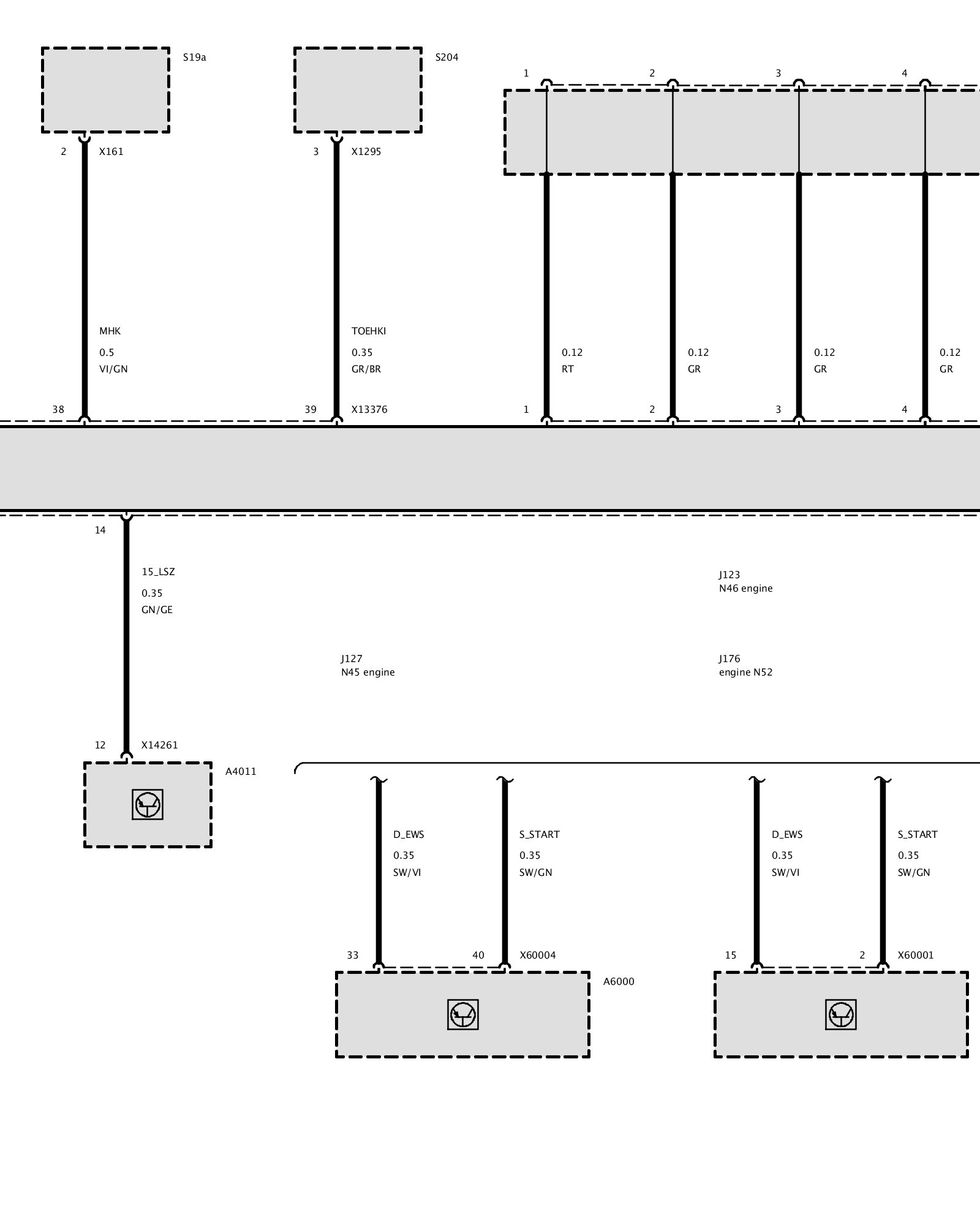

Part 2:

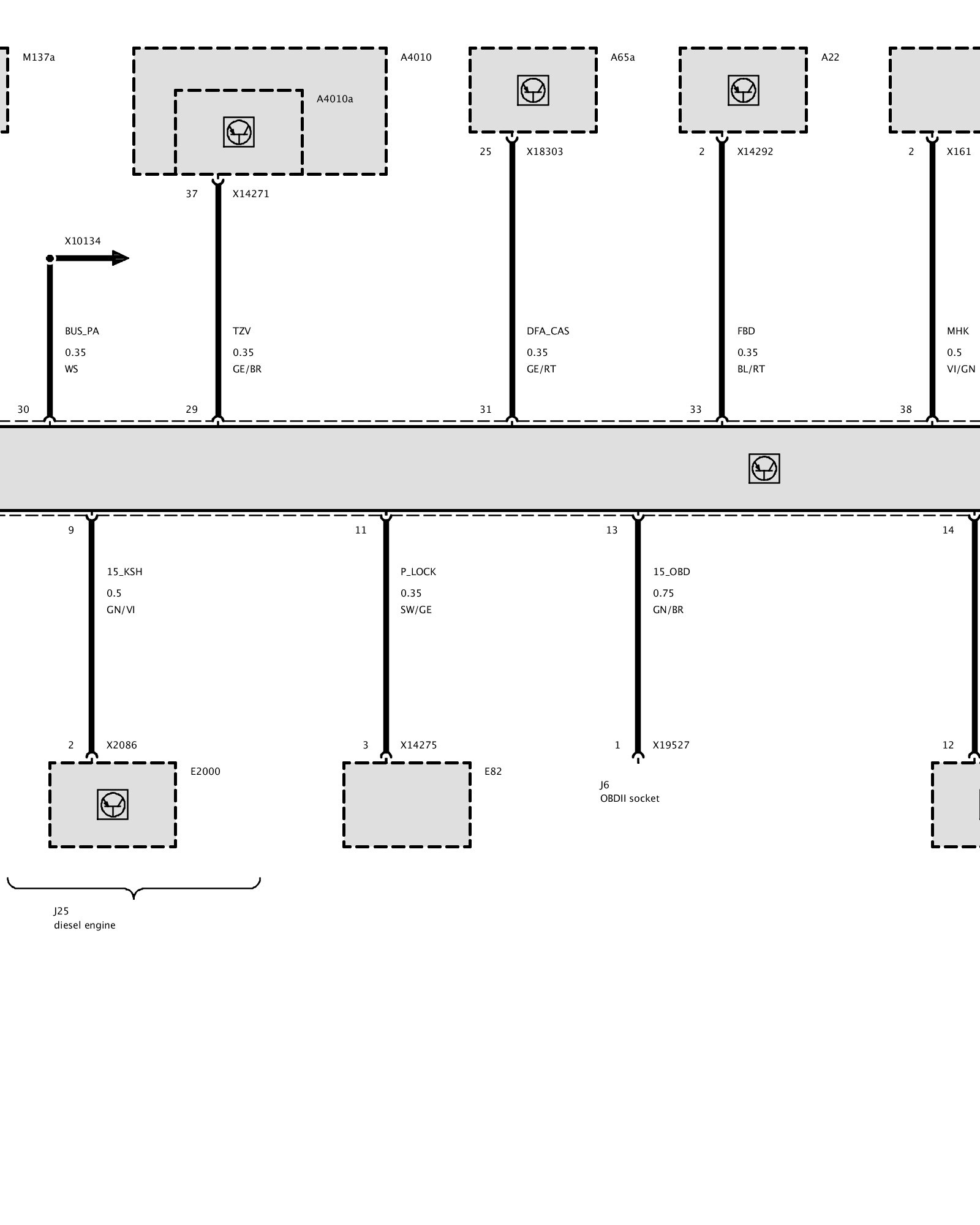

Part 3:

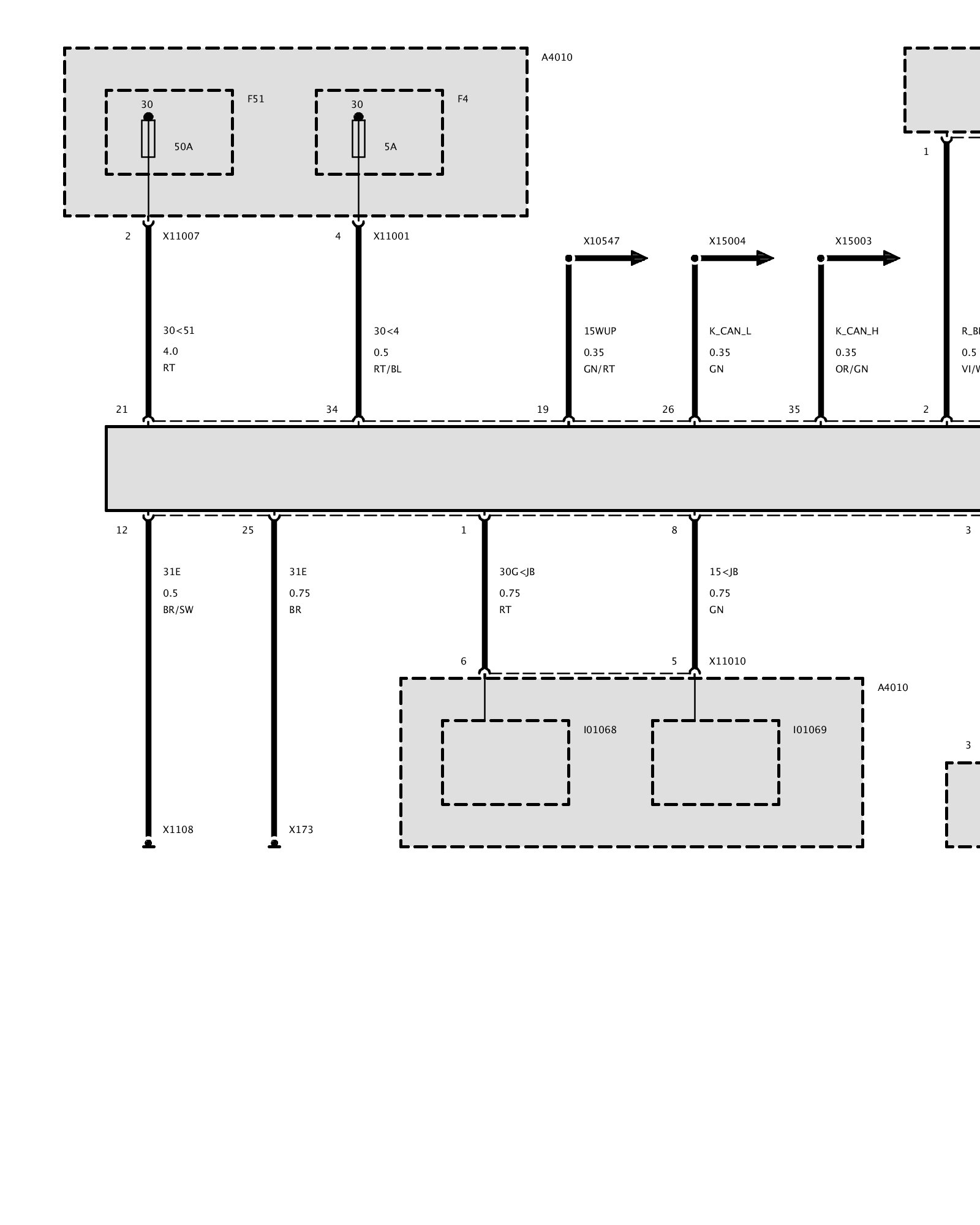

Part 4:

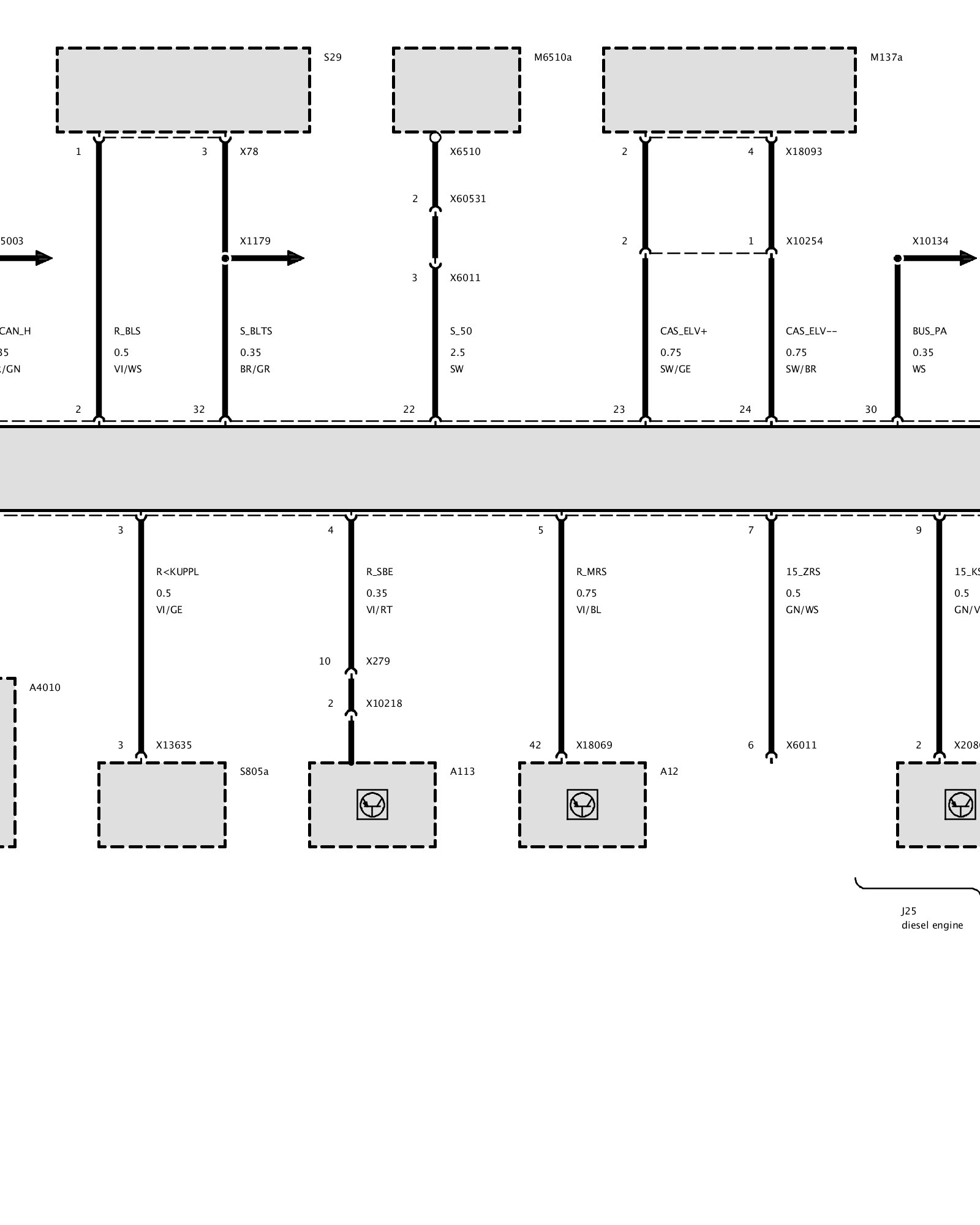

Part 5:




Part 6:
