Home >> BMW >> 2008 >> 135i Convertible (E88) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13813 >> HIFI System

HIFI System

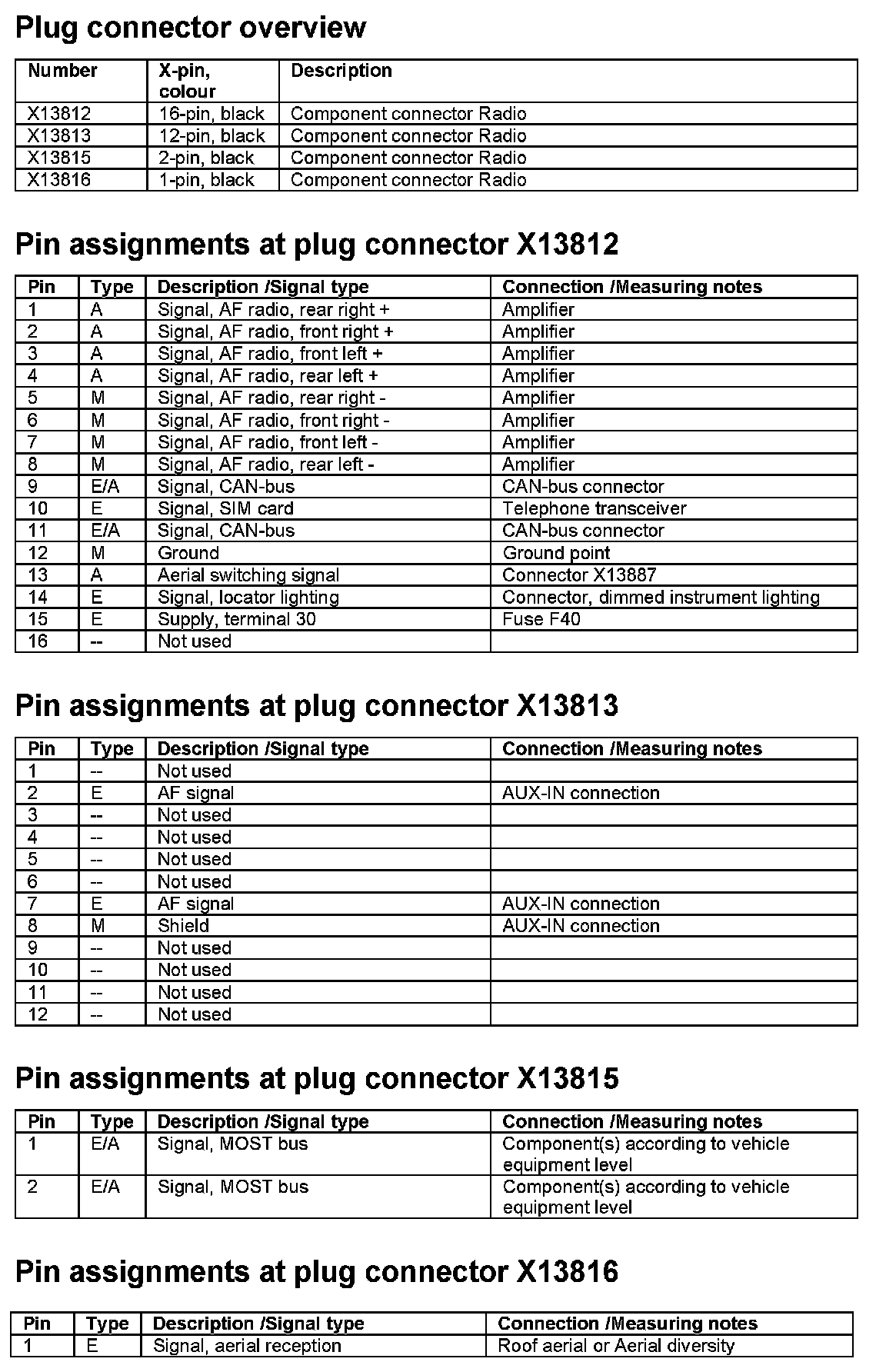

Connector View X13813









N9 Radio Pin Assignments
