Home >> BMW >> 2008 >> 135i Convertible (E88) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13812 >> N38a CCC/M-ASK >> Stereo System

Stereo System

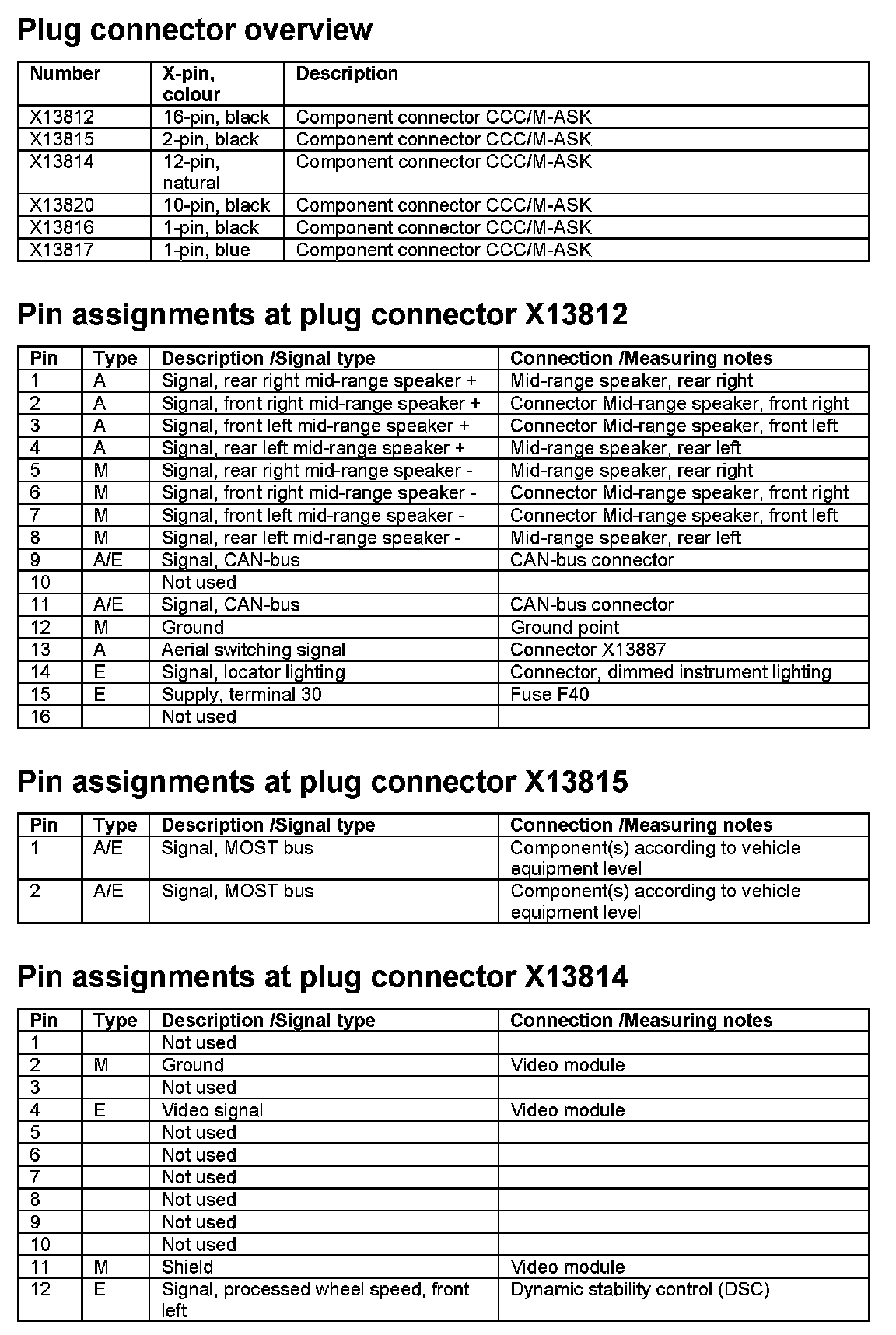

Connector View X13812

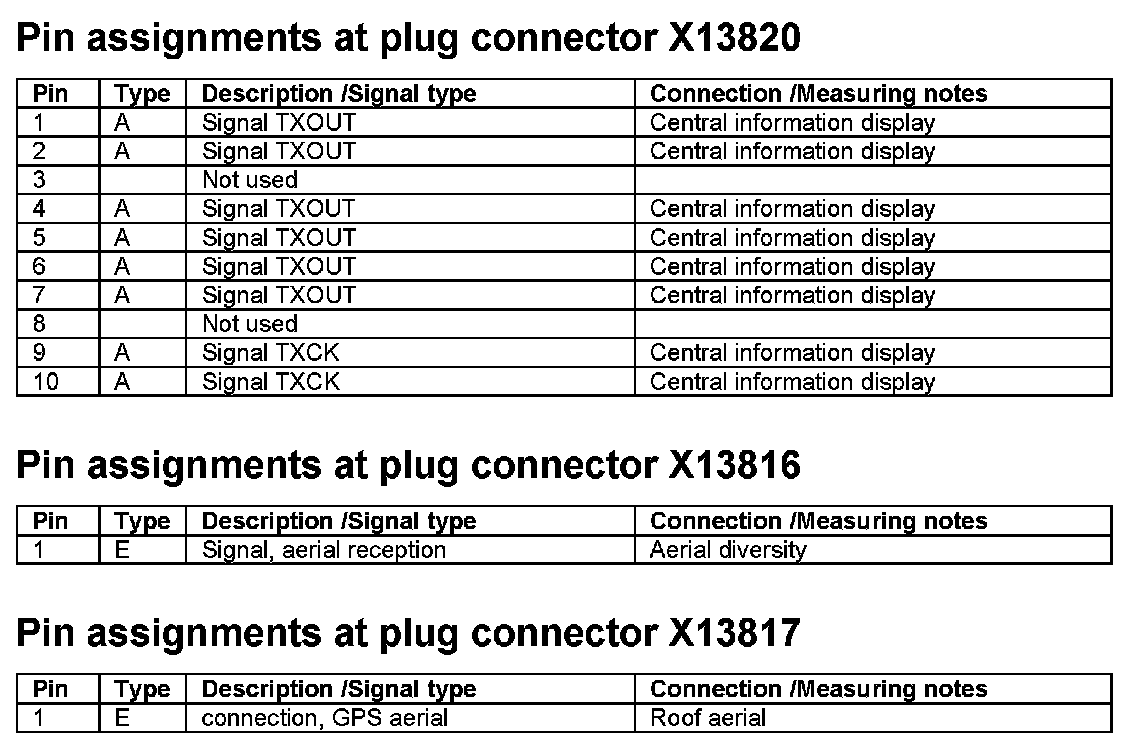

N38a CCC/M-ASK Pin Assignments
