A11A Heating/Air Conditioning System (With IHKA Integrated Automatic Heating/Air Conditioning)

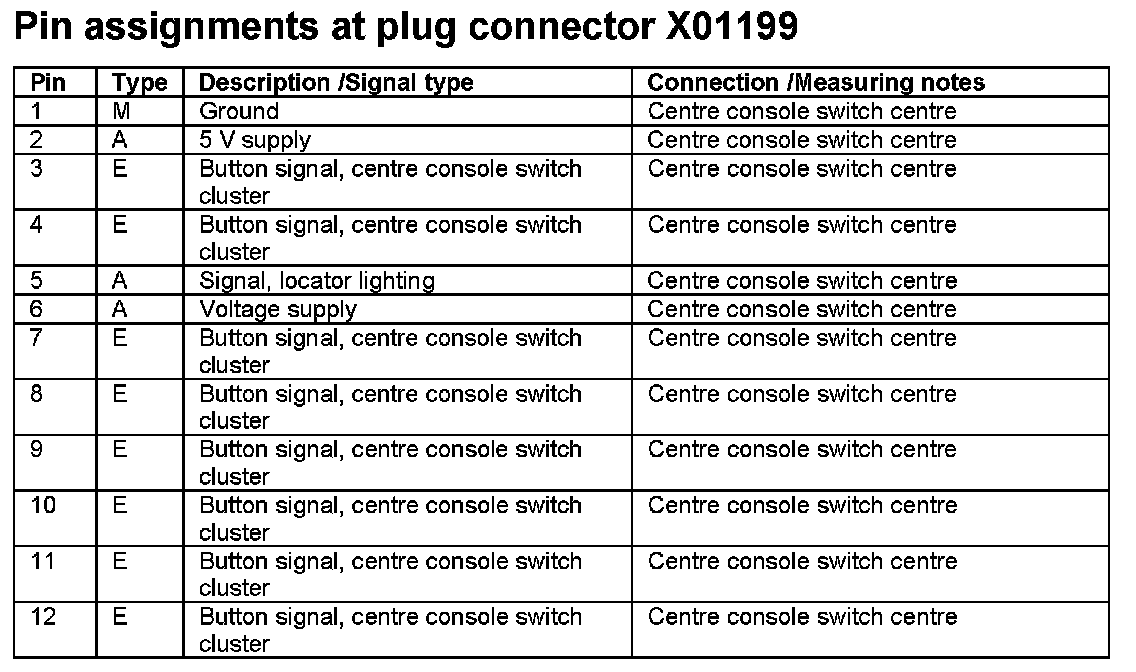

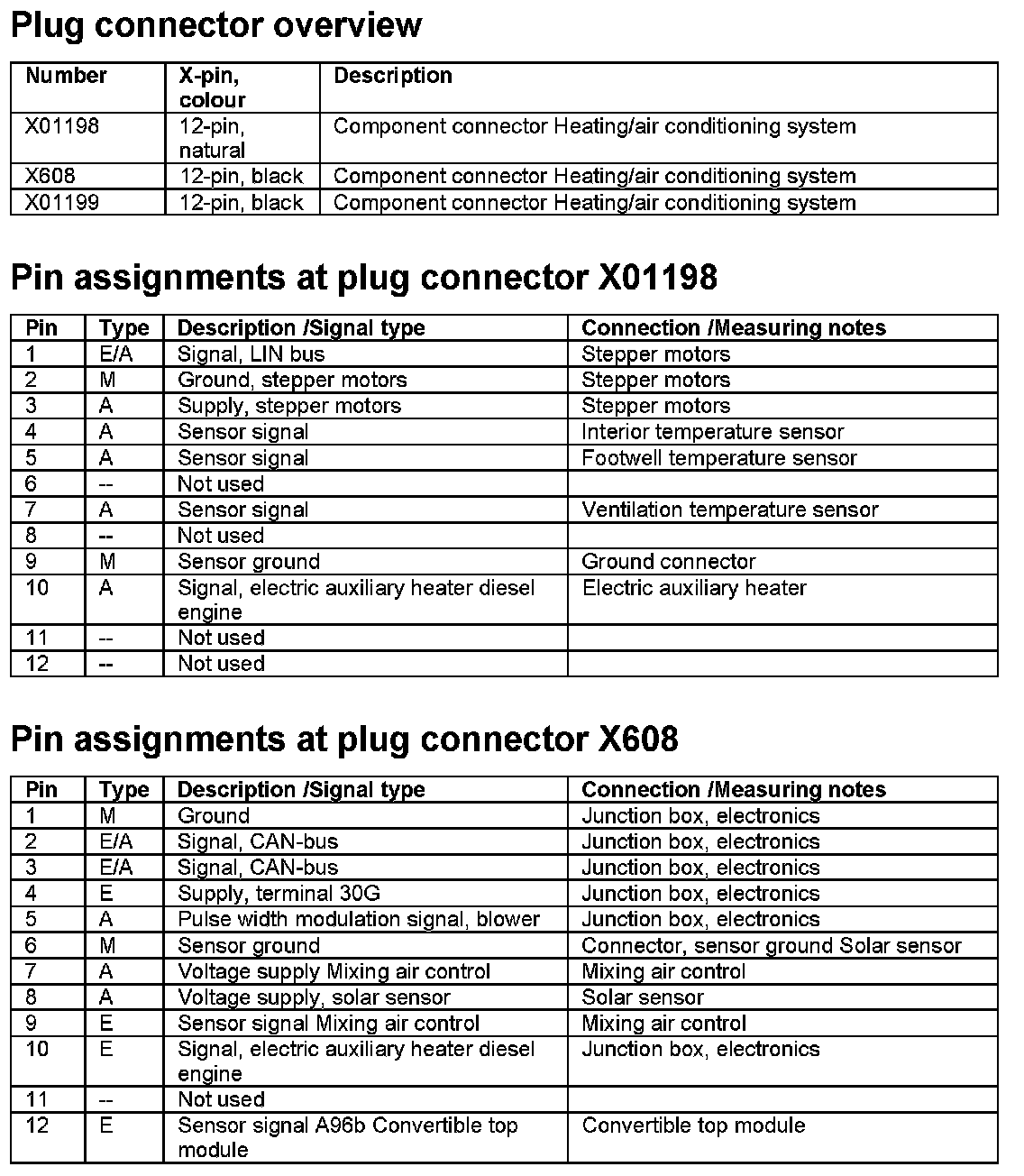

A11a Heating/Air Conditioning System Pin Assignments
