34 41 120 Removing and Installing or Replacing Both Handbrake Bowden Cables

34 41 120 - Removing and installing or replacing both handbrake Bowden cables





Special tools required:
- 32 1 030 32 1 030 Lever





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove airbag control unit Service and Repair
After completing work:
- Adjusting parking brake Adjustments





Lock adjuster unit (ASZE).

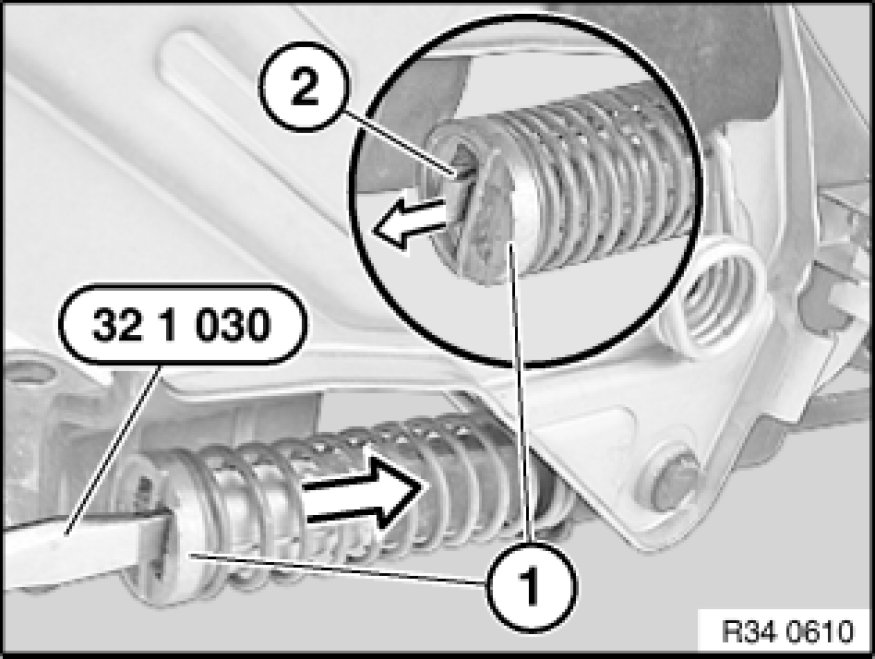

Actuate parking brake lever. Screw in special tool 32 1 030 32 1 030 Lever partially. Press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Installation:
Unlock adjuster unit (ASZE).

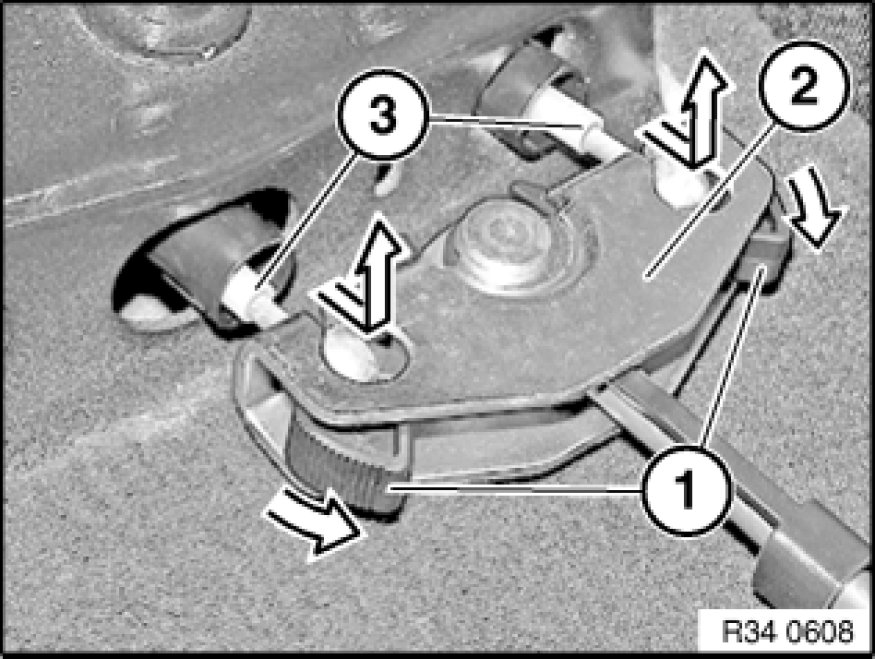

Lever out restraining hook (2) with a suitable screwdriver.
Restraining hook (2) must detach from stop (1) of adjusting spring.





Press retainer (1) in balance arm (2) forward in direction of arrow.
Detach handbrake Bowden cables (3) from balance arm (2).





Remove expander lock 34 41 250 Removing and Installing/Replacing Expander For Parking Brake Shoes for parking braking shoes.

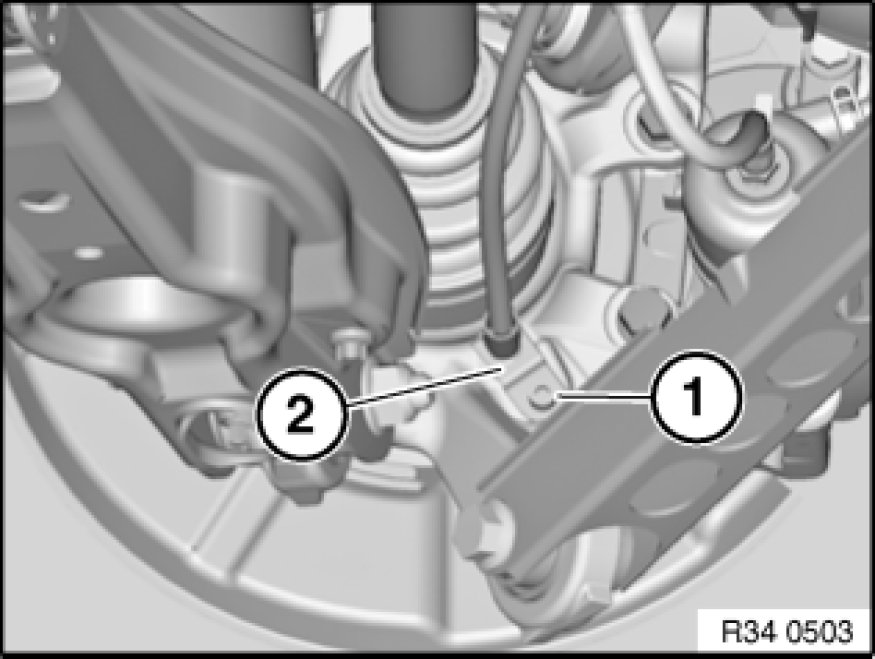

Release screw (1) and remove holder (2).
Pull handbrake cable out of wheel carrier.

Installation:
Tightening torque 34 41 2AZ 34 41 Parking Brake.

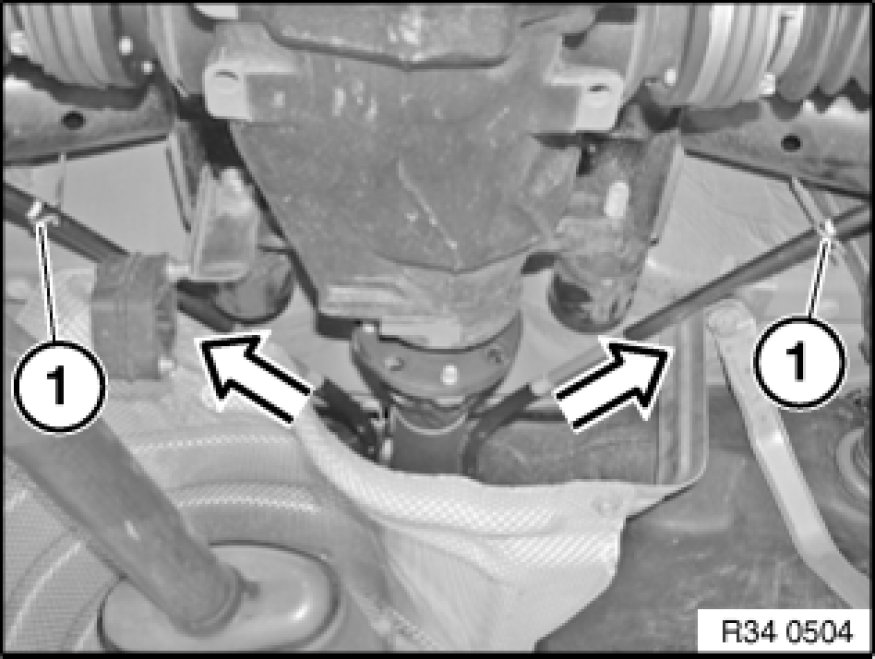

Disconnect handbrake cables from holders (1).
Pull handbrake cables towards rear out of guide tube.
