BMW
>>
2008
>>
135i Convertible (E88) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Locations
>>

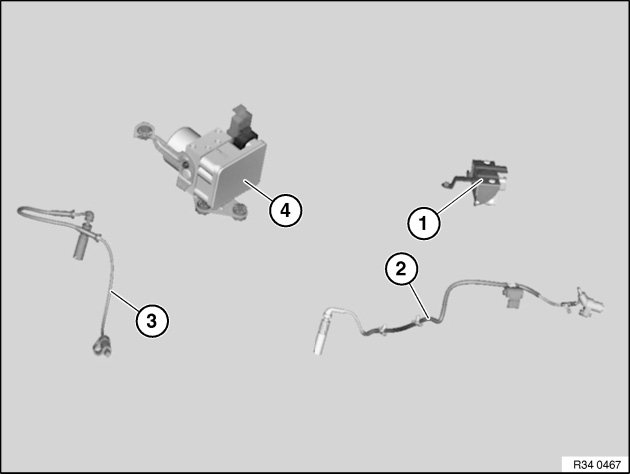

34 52 ... Overview of Electronic Components
34 52 ... Overview of Electronic Components
34 52 ... Overview of Electronic Components
1
DSC sensor
2
Pulse sensor, rear
3
Pulse sensor, front
4
DSC control unit
