Replacing Seat Cover for Rear Seat

52 24 400 - Replacing seat cover for rear seat





Special tools required:
- 52 0 050





Necessary preliminary tasks:
- Remove rear seat Removing and Installing / Replacing Rear Seat

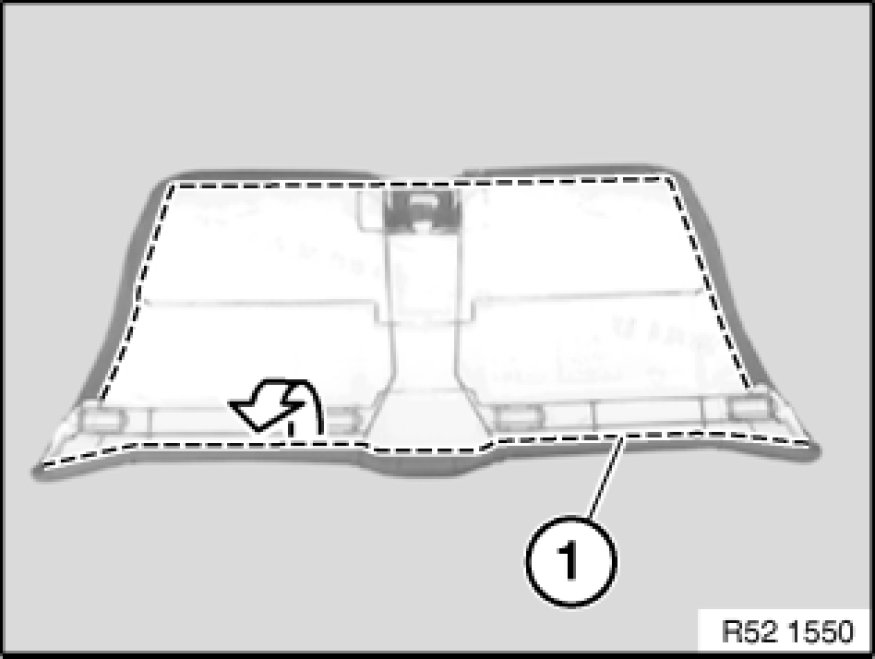

Lever welt (1) in marked area out of wire frame.





Detaching cover and padding:

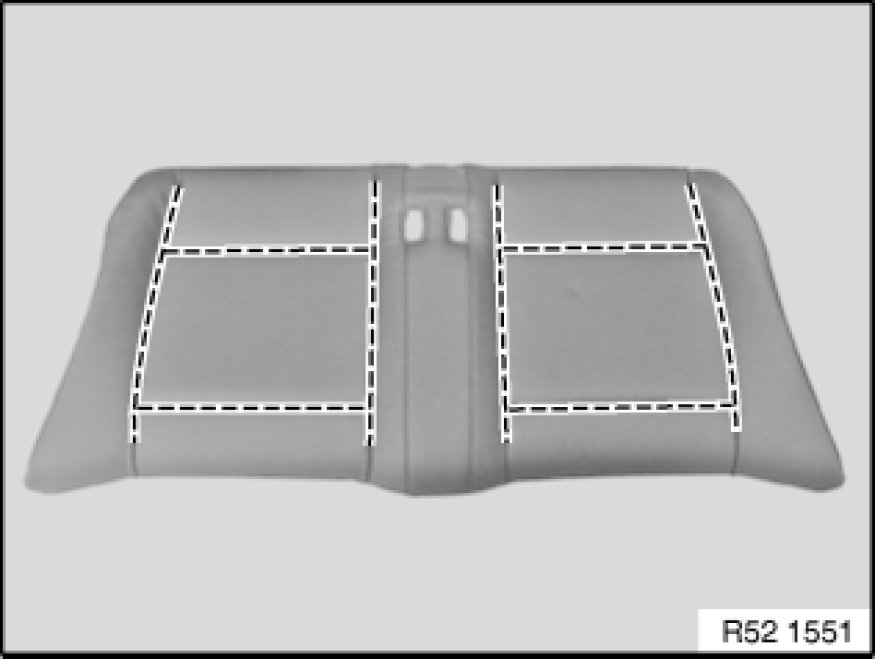

- Release all retainers in marked area
- Remove seat cover from padding

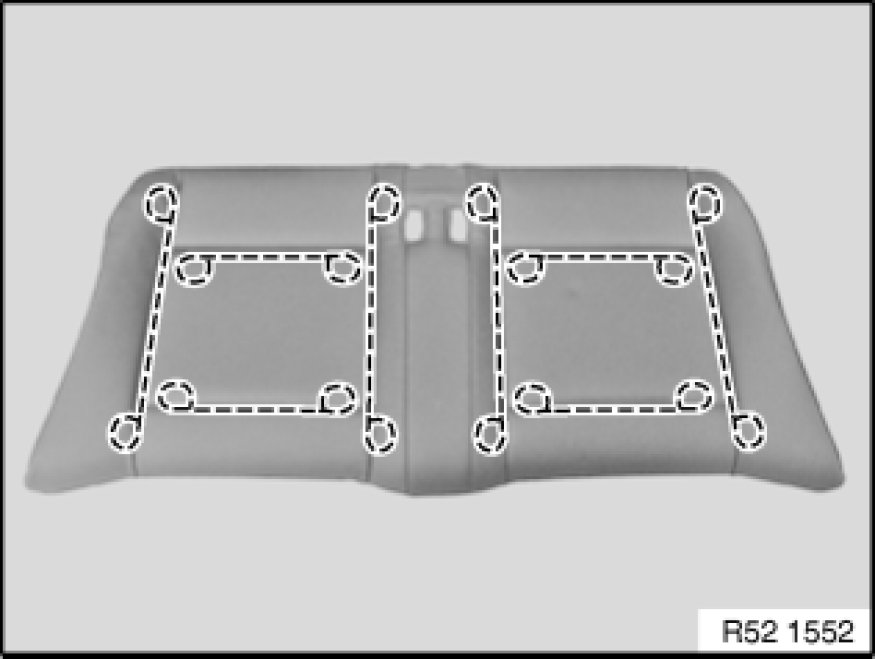

- Remove remaining retainers from cover and padding





Installation:
Insert new retainer (2) with special tool 52 0 050 and bend closed.

1. Padding
2. Retainer
3. Trim wire in padding
4. Trim wire in seat cover
5. Seat cover





Replacing cover:
- Pull all trim wires out of seat cover
- If necessary, cut in take-up for trim wires of new cover
- Push trim wires into new seat cover
