Removing and Installing/Replacing Ski Bag with Casing on Rear Seat

52 24 ... - Removing and installing/replacing ski bag with casing on rear seat





Necessary preliminary tasks:
- Remove rear seat back Removing and Installing/Replacing Backrest





Lever out rear casing cover with plastic wedge.

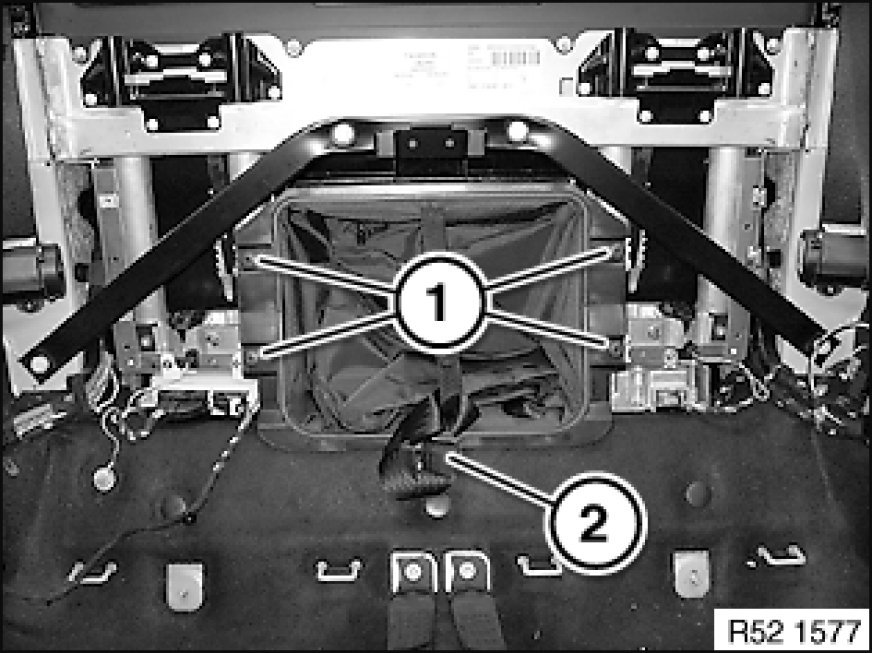

Release screws (1).
Tightening torque: 52 24 05AZ 52 24 Rear Seat (Normal), Manual.
Release screw (2) for retaining strap.
Tightening torque: 52 24 04AZ 52 24 Rear Seat (Normal), Manual.
Remove transportation bag.
