Removing and Installing/Replacing Backrest

52 24 010 - Removing and installing/replacing rear seat backrest





Necessary preliminary tasks:
- Remove rear seat Removing and Installing / Replacing Rear Seat
- Remove guide sleeves for head restraint Replacing Left or Right Guide Sleeves

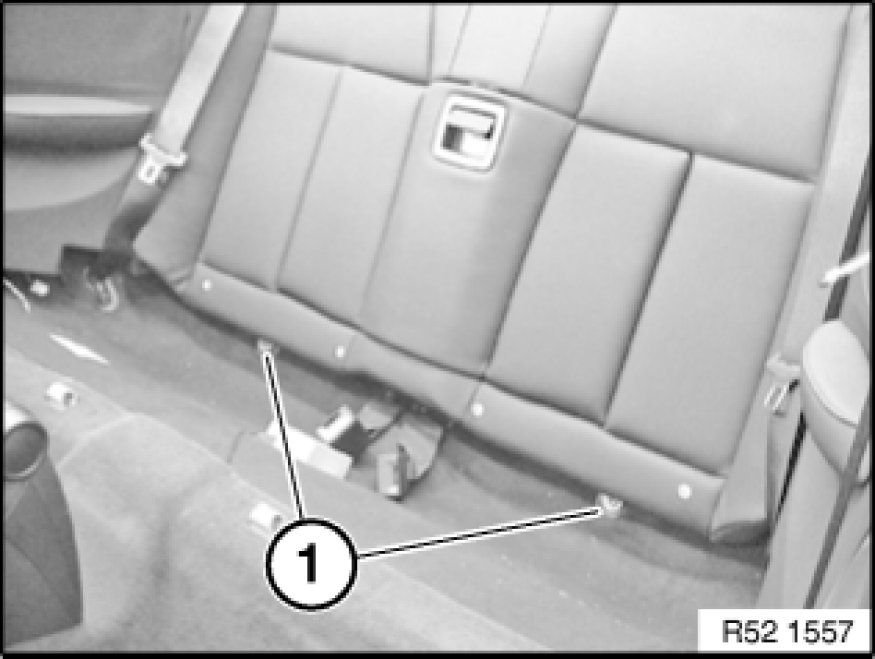

Release screws (1) on rear seat backrest.
Tightening torque: 52 24 01AZ 52 24 Rear Seat (Normal), Manual.
Remove rear seat backrest.
