52 13 021 Removing and Installing/Replacing Flexmat on Left or Right Front Seat




52 13 021 - Removing and installing / replacing flexmat on left or right front seat





Necessary preliminary tasks:
- Remove padding for front seat

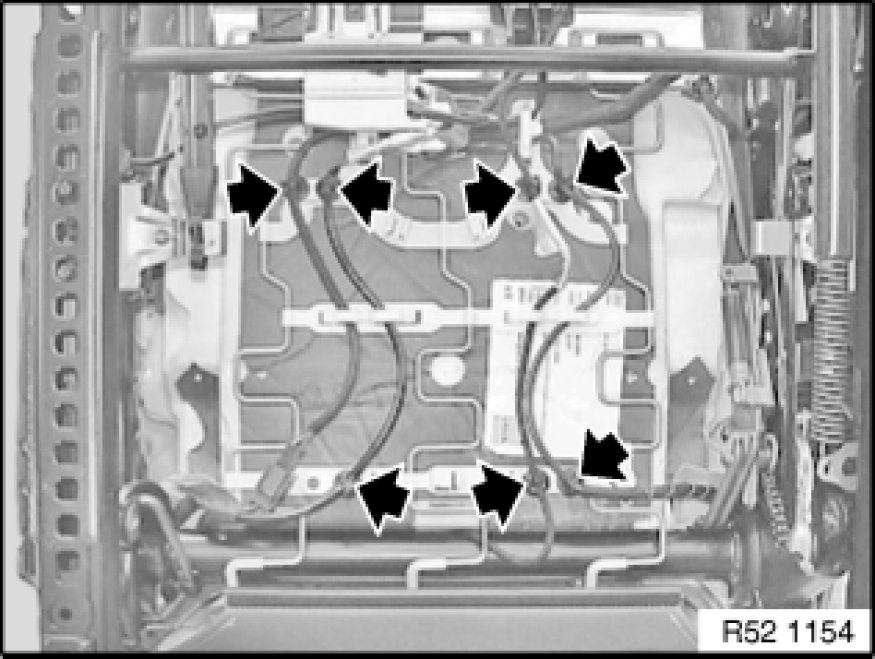

Cut all cable ties and disengage wiring harnesses from flexmat.

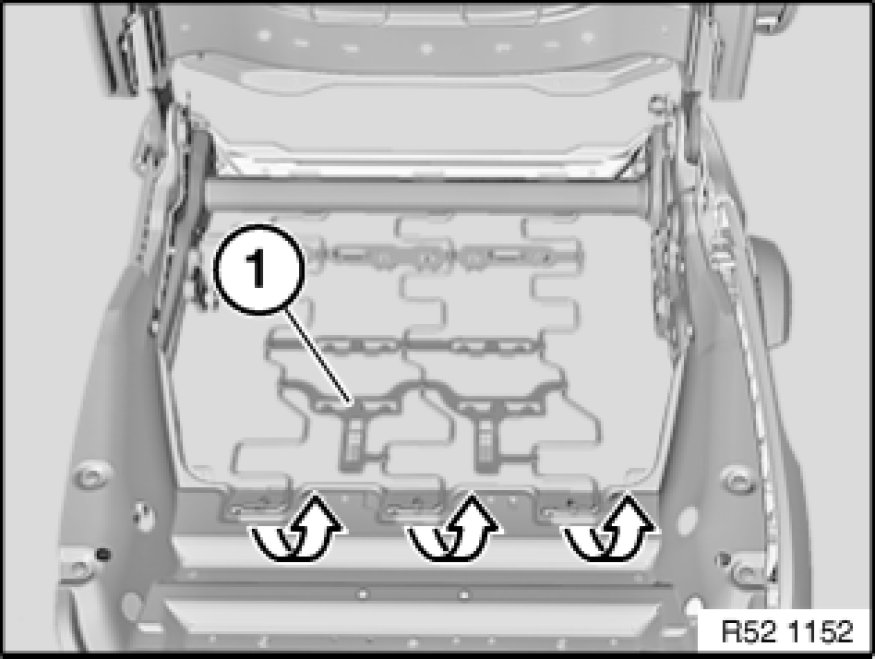

Disengage flexmat (1) at front.





Swing flexmat (1) down and disengage from seat frame.
