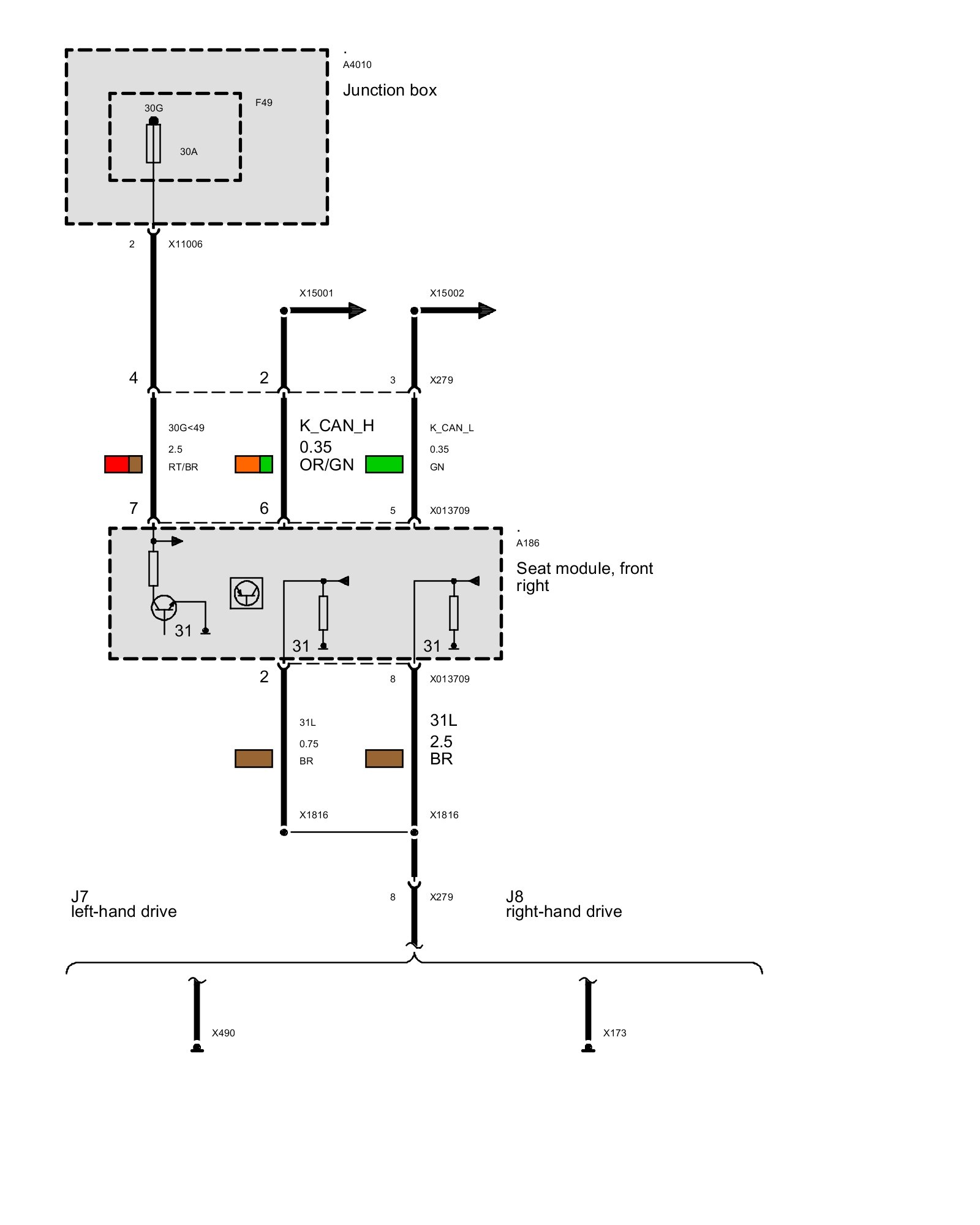

Power Supply, Passenger's Seat Module SMBF
Power Supply, Passenger's Seat Module SMBF
Power Supply, Passenger's Seat Module SMBF
As Of 03/07 Up To 09/07
As Of 09/07
