54 34 127 Removing and Installing/Replacing Trim For Cowl Panel

54 34 127 - Removing and installing/replacing trim for cowl panel





Necessary preliminary tasks:
- Open Convertible top partially until work area is accessible





Warning!
Soft top becomes pressureless without a warning signal.
For all work, secure soft top with a suitable support tool against collapsing.
Ensure Convertible top is supported in the middle.
Ignition must remain switched off during the repair work.
Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.

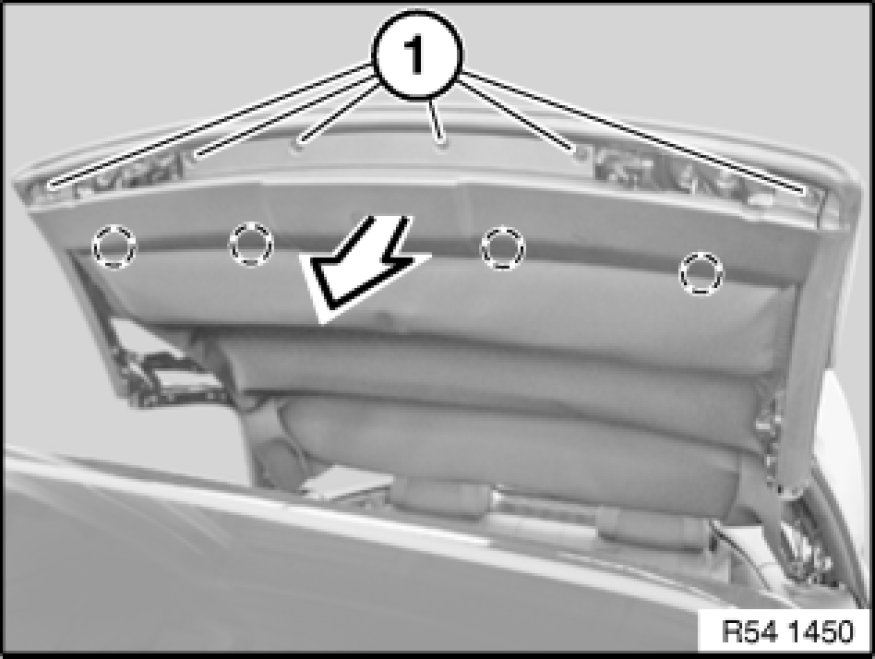

Release screws (1).
Clip trim for cowl panel towards front out of marked area.

Installation:
If necessary, replace defective clips.
