41 63 061 Replacing Convertible Top Compartment Lid

41 63 061 Replacing Soft Top Compartment Lid







Necessary preliminary tasks:
- Open soft top.

IMPORTANT: Risk of damage.

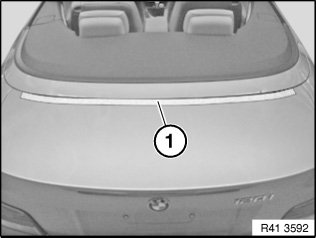

Tape off edge of rear lid in area (1) with plastic adhesive tape.

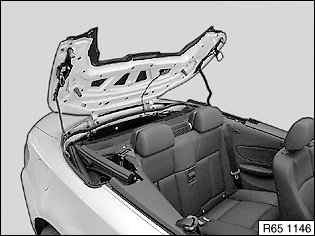

Move soft top into position shown.







IMPORTANT:
- Risk of injury.
- Secure soft top compartment lid against falling closed.

Switch off ignition. (This depressurises the system).







IMPORTANT: Risk of damage.

Carry over the work step shown symmetrically to the other side of the vehicle.

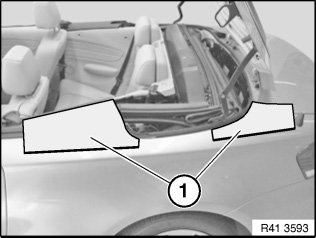

Cover areas (1).







NOTE:
If fitted: Remove aerial of Global Positioning System (GPS).

Carry over the work step shown symmetrically to the other side of the vehicle.

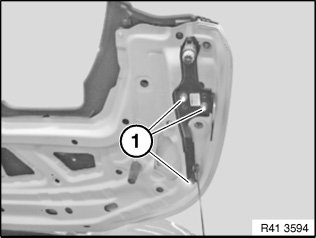

Unscrew nuts (1).

Tightening torque 41 63 2AZ







Carry over the work step shown symmetrically to the other side of the vehicle.

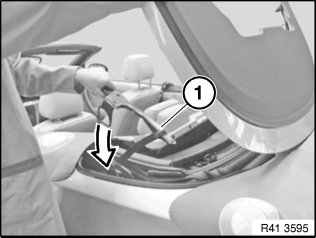

Lay soft top compartment lid mechanism (1) in convertible top compartment.







Open rear lid with ignition key.

Carry over the work step shown symmetrically to the other side of the vehicle.

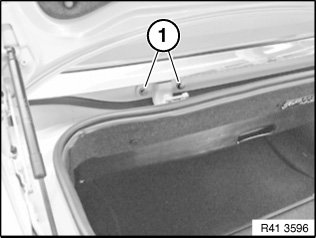

Release screws (1).

Tightening torque 41 63 3AZ.







Secure rear lid (1) in position shown.

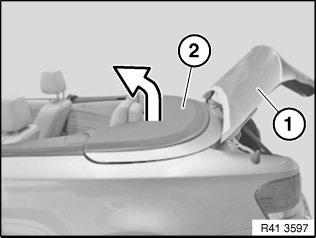

Feed out soft top compartment lid (2) with aid of a second person in direction of arrow.

Set soft top compartment lid down on a clean surface.

Remove trim for soft top compartment lid







Installation:
Install soft top compartment lid at screw locations on hinge.

If necessary, adjust soft top compartment lid.
