Removing and Installing/Replacing Left Convertible Top Compartment Lock

54 34 159 - Removing and installing/replacing left Convertible top compartment lock





Necessary preliminary tasks:
- Remove cowl panel trim 54 34 127 Removing and Installing/Replacing Trim For Cowl Panel
- Stow Convertible top





Installation:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Thread of nut must be cleaned beforehand in event of repeated use





When replacing cowl panel fastener:
Before removing, mark position of screws to ensure correct alignment when installing.
When replacing Convertible top frame:
Before removing, mark position of fastener to ensure correct alignment when installing.

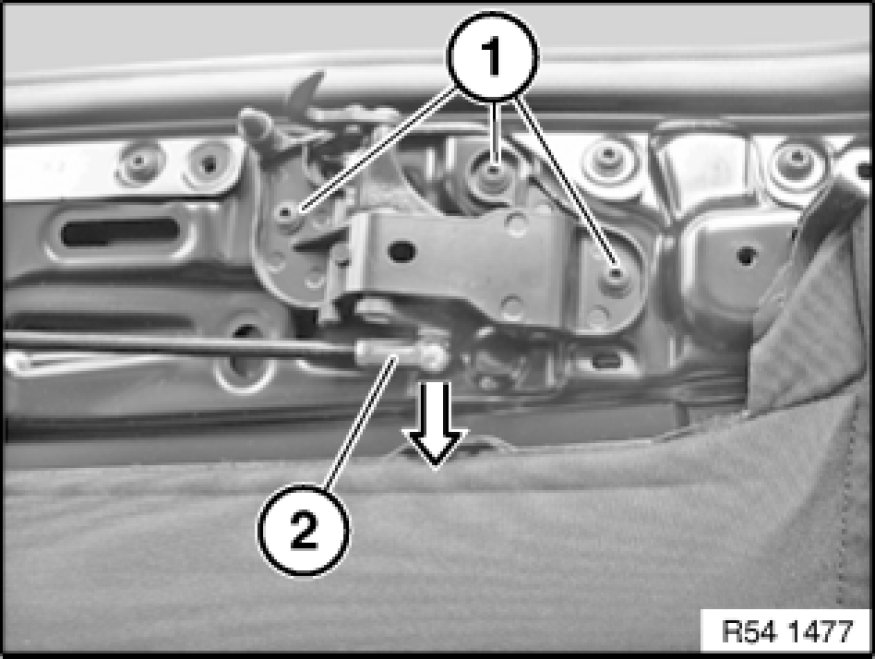

Open retaining bracket and unclip ball end (2).
Release screws (1).

Installation:
Replace bolts.
