54 34 128 Removing and Installing/Replacing Trim Panel For Cover Flap

54 34 128 Removing And Installing/Replacing Trim Panel For Cover Flap







NOTE: For purposes of clarity, the cover flap is shown with the component removed.







Necessary preliminary tasks:
- Remove trim strip from cover flap







Release left and right screws (1).

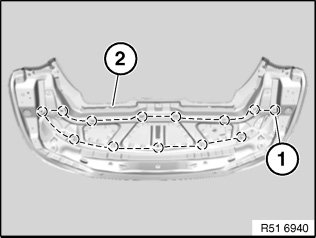

Unclip and remove trim of cover flap (2) as shown in the marked areas (1).

Installation:

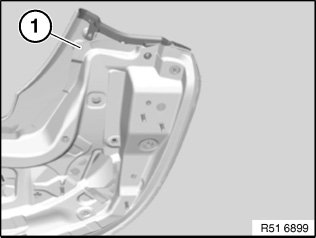

Replace faulty clips (1).







Replacement

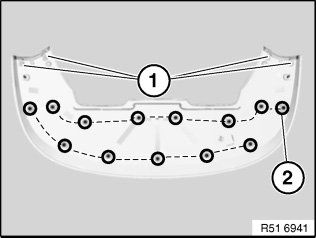

Release screws from seal lip (1) left and right. Modify seal lips

Modify clips (2).
