Triggering/retracting Rollover Protection System (BMW Diagnosis System)

54 62 000 - Triggering/retracting rollover protection system (BMW diagnosis system)





Warning!
Risk of injury!
When the actuators are electrically activated, there must be no persons present in the vicinity of the rollover protection system.
When rollover protection is mechanically triggered, only one person may be present underneath the rollover bar.





Important!
Stow rear end module in convertible top compartment (open).
When the actuators are activated, both rollover bars are simultaneously triggered.





Triggering rollover protection system:
Refer to diagnostic program "Restraint and rollover protection function / rollover system".





Important!
When retracting, make sure rollover bar snaps into place on lower stop.
Slowly relieve load on rollover bar.

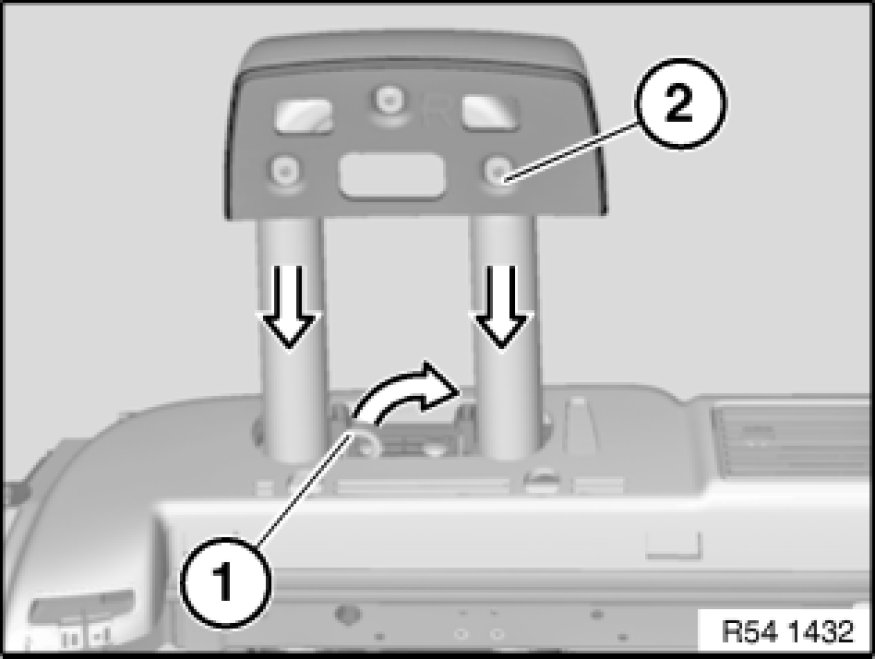

Hold locking pawl (1) and press rollover bar (2) down as far as it will go until actuator is locked.

Note:
Rollover bar must snap audibly into place!
