Water, Drain Channel, Seal, Cowl Panel

Water Drainage Channel On Cowl Panel Seal

Water drainage channel on cowl panel seal blocked

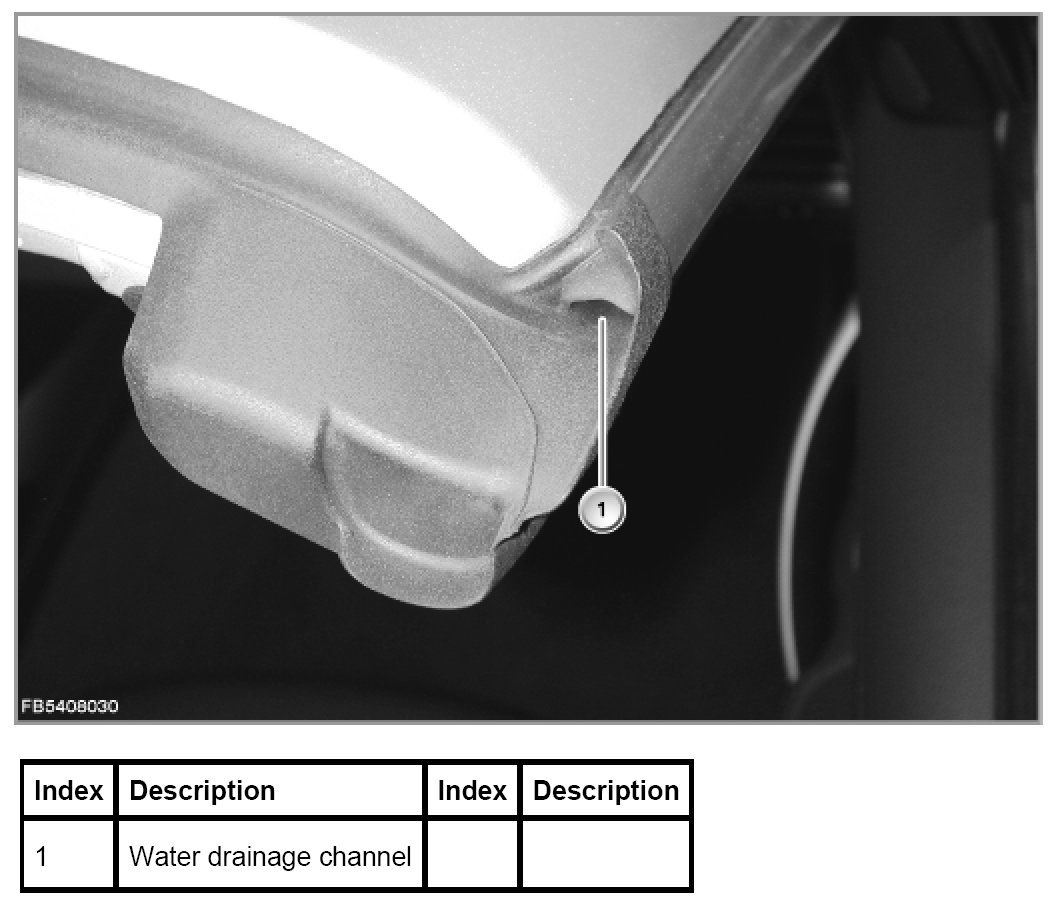

If the water drainage channel on the cowl panel seal is blocked, water can enter at sealing joint 1.

Check the water drainage channel at sealing joint 1 in the cowl panel seal for blockages.
