Seal, Cowl Panel, Combed

Cowl Panel Seal Creased Or Shifted

If the side window does not move correctly into the cowl panel seal, it is creased upwards by the side window on closing.

NOTE: Typical here are water droplets that run downwards on the inside of the side window at the height of the mirror triangle.

Open and close the front side window, checking whether the side window runs correctly in the seal.

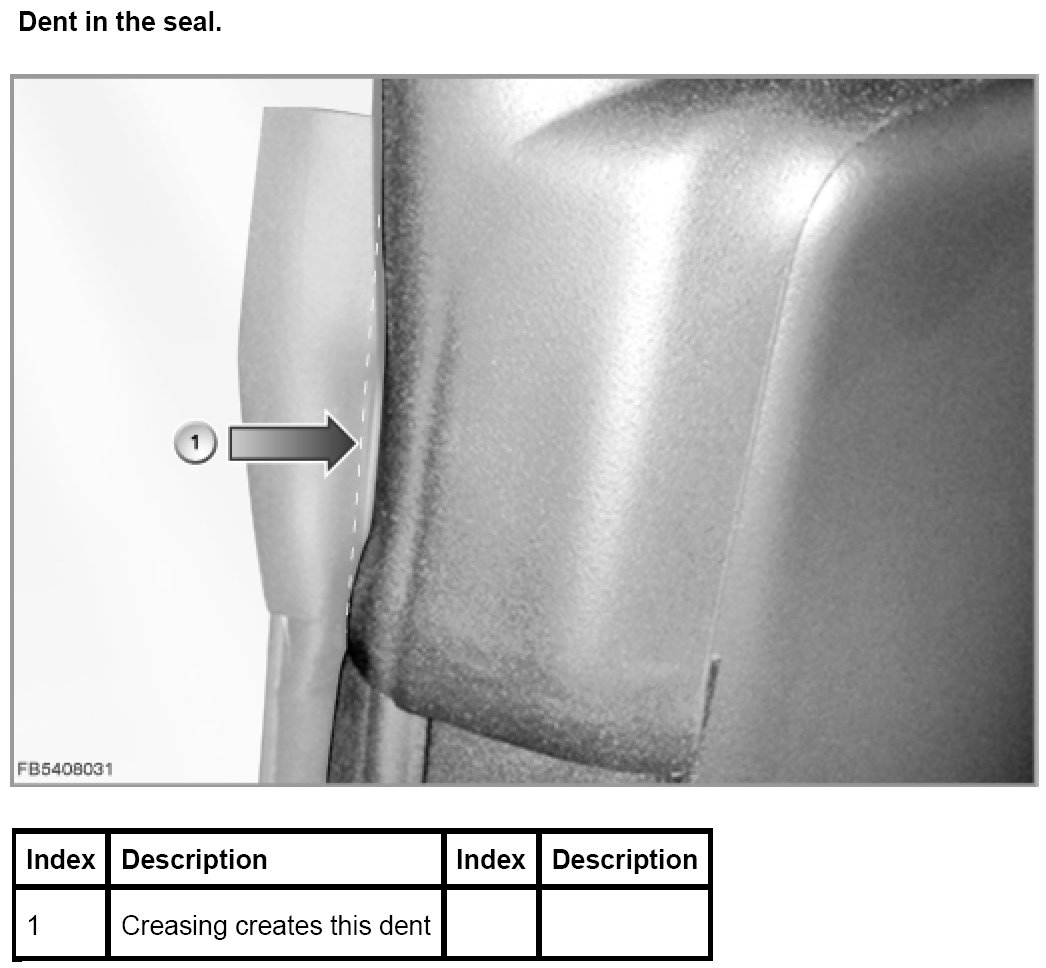

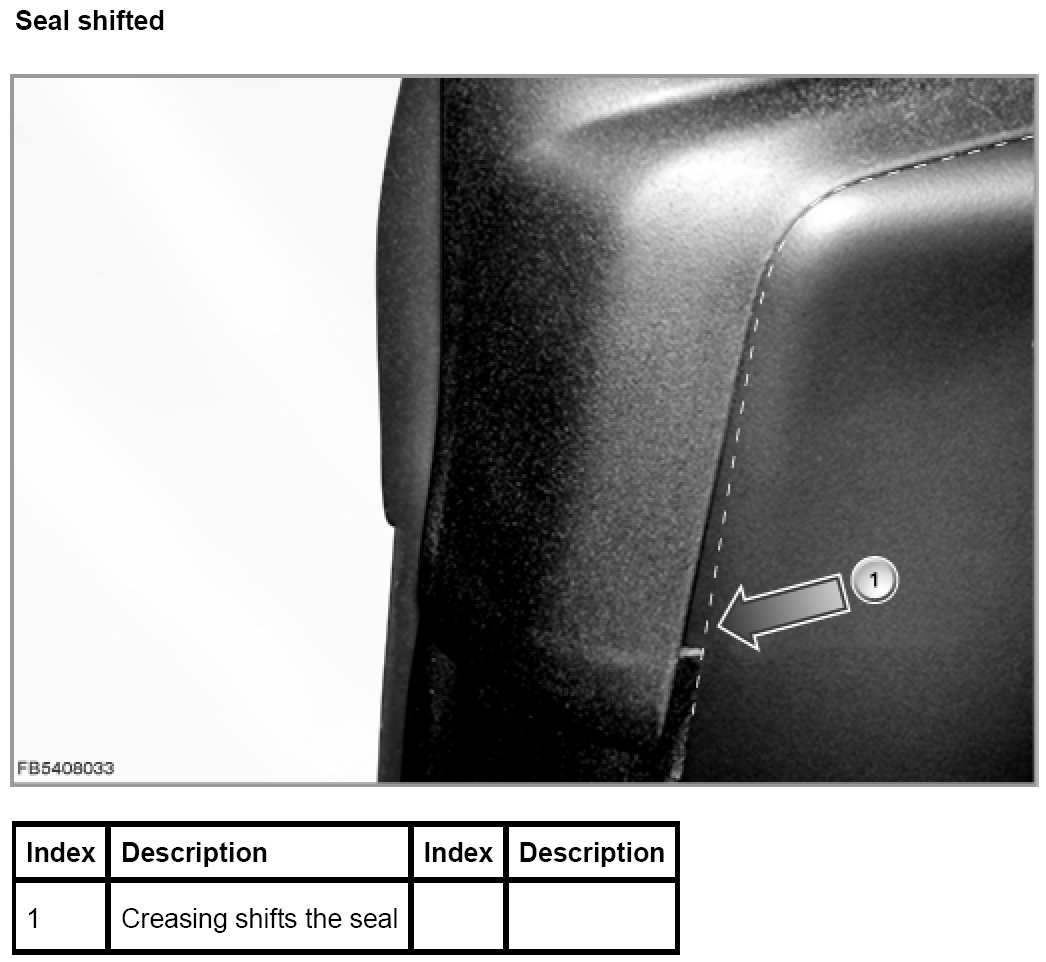

If the side window creases the cowl panel seal, this can be seen as shown in the following illustrations.
