Gap Dimension, Convertible Top

Convertible Top Gap Dimension

Repair instruction for convertible top gap dimension

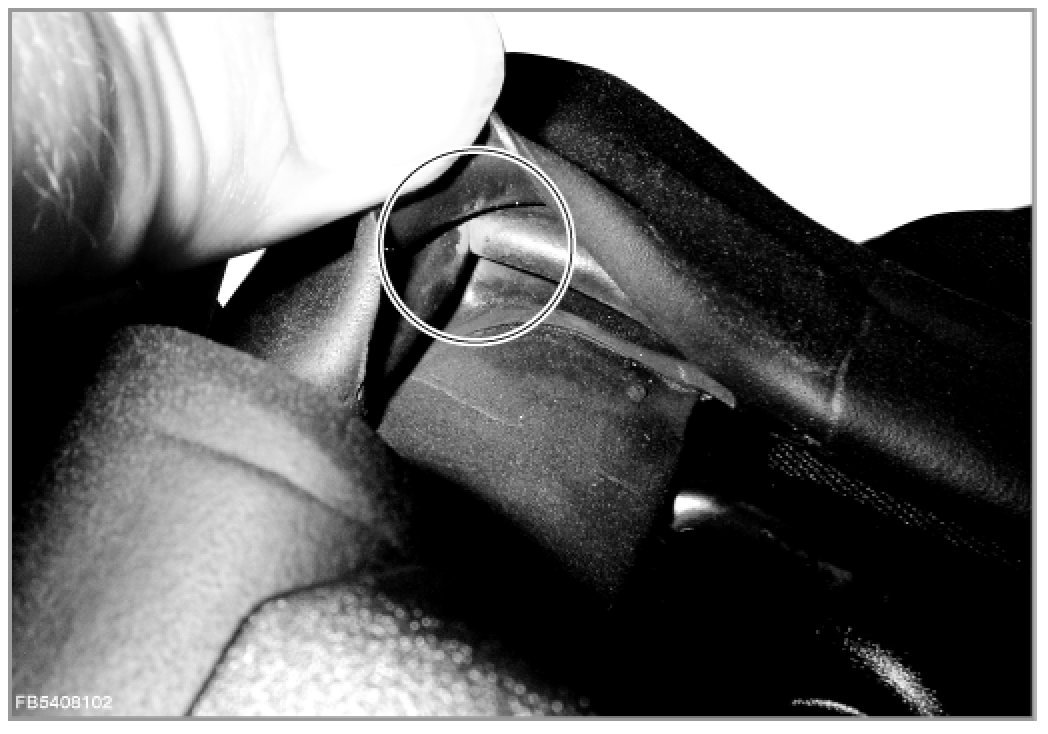

Cause: The gap dimension between the cowl panel and convertible top is not correct (too large). The filler piece at the front in the convertible top seal is damp, see illustration.







Repair instruction

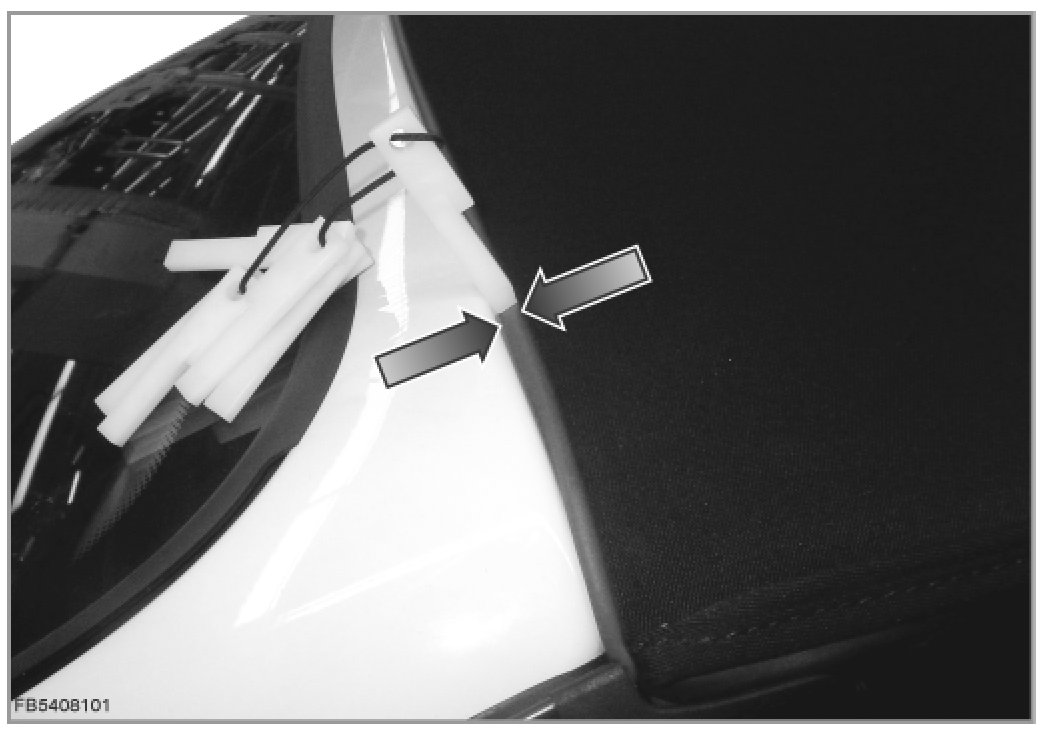

The gap dimension is set at the cowl panel fastener on the front roof bow. The gap dimension must be 5 mm. Use a feeler gauge to check the gap on the closed convertible top, see illustration.

Convertible top gap dimension
