Noises, Rear, Area, seals

Noises In Rear From The Area Of The Seals And Centre Roof Area

The following list shows all the currently known fault patterns that can lead to noises in the rear from the area of the seals and the centre roof area.

Noises in rear from the area of the seals and centre roof area
Determine fault pattern at the vehicle and select the fault code in the test module. After selecting the fault code, the repair instructions are displayed.

Known faults

No. Fault pattern

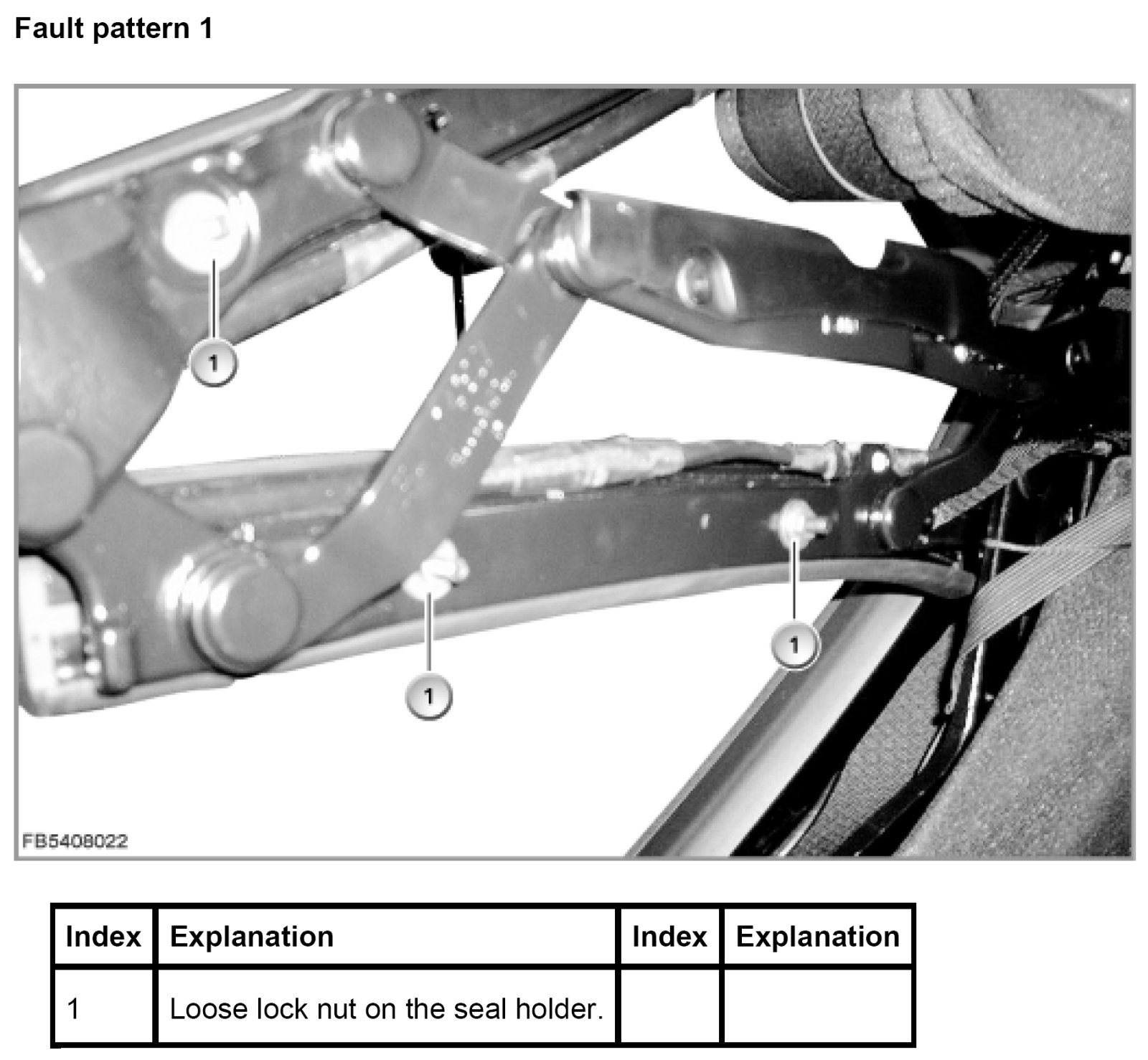

1 Rattling noise due to loose seal holder (convertible top seal)? See illustration.

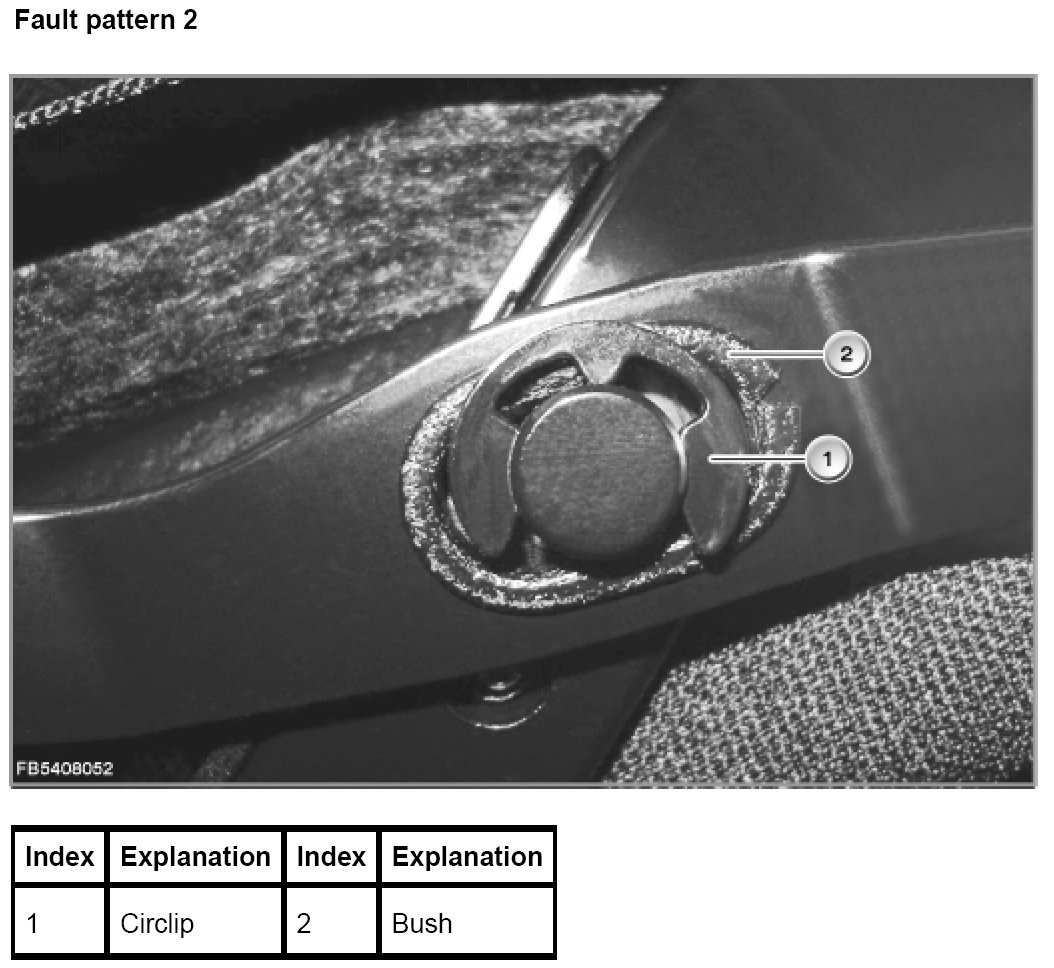

2 Rattling noise from the convertible top linkage due to missing retaining ring and bush? See illustration.
