Locking Bar, Convertible-Top Compartment Lid

Convertible top cover closing bracket

Repair instruction for clicking noise from the convertible top compartment on closing
When the convertible top compartment is closed, the closing bracket can cause a cracking noise.

Repair instruction
1. Open the convertible top cover

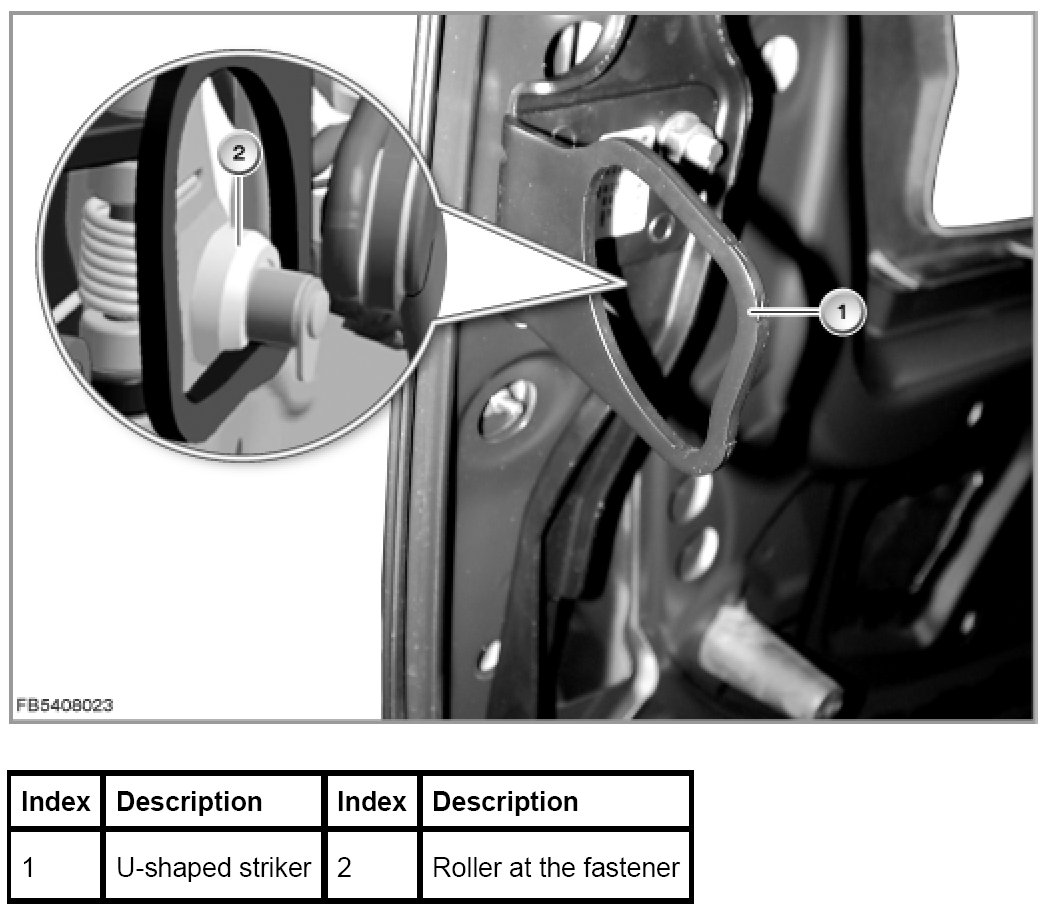

2. Slightly loosen the mounting bolts of the closing bracket. Adjust the closing bracket slightly inwards and tighten the mounting bolts again. The closing bracket should not touch the roller at the fastener.

NOTE: Do not adjust the closing bracket too far inwards, as otherwise there is a danger that it collides with the linkage when stored.
