51 46 025 Removing and Installing/Replacing Trim on Air Outlet Grille

51 46 025 - Removing and installing/replacing trim on air outlet grille





Special tools required:





Necessary preliminary tasks:
- If necessary, fold in convertible top

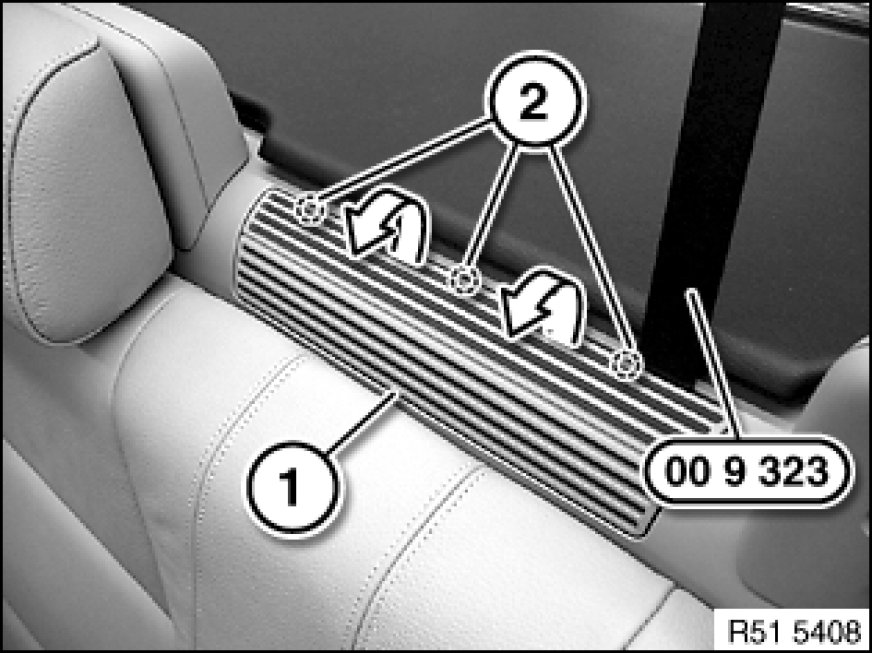

Lift trim cover (1) out of retainers (2) with special tool 00 9 323 and feed out towards rear.





Installation:

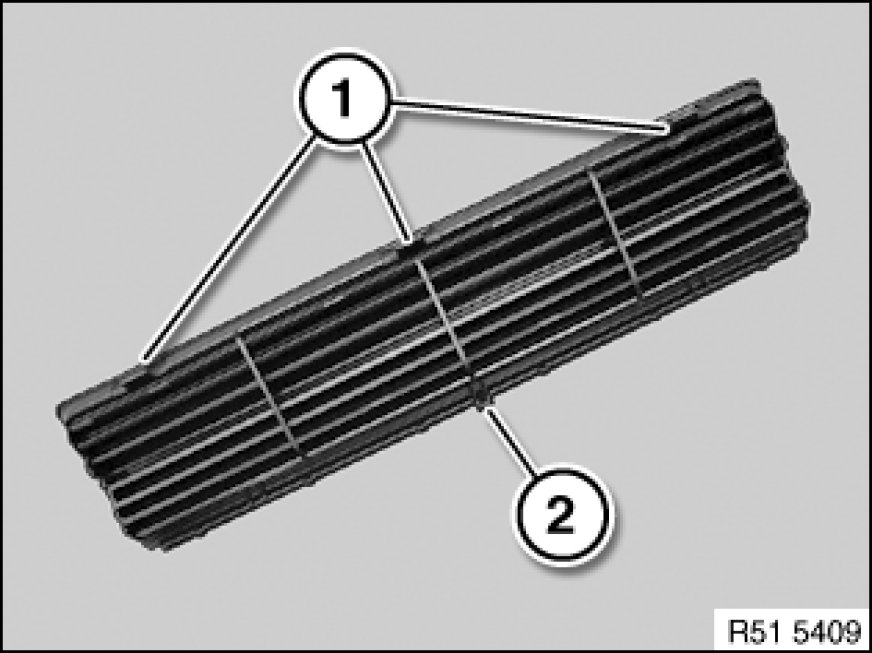

Catches (1) and guide (2) on trim must not be damaged.
