51 16 341 Removing and Installing/Replacing Lock Cylinder for Glovebox

51 16 341 - Removing and installing/replacing lock cylinder for glovebox





Special tools required:





Important!
Risk of damage!

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.





Necessary preliminary tasks:
- Open glovebox cover

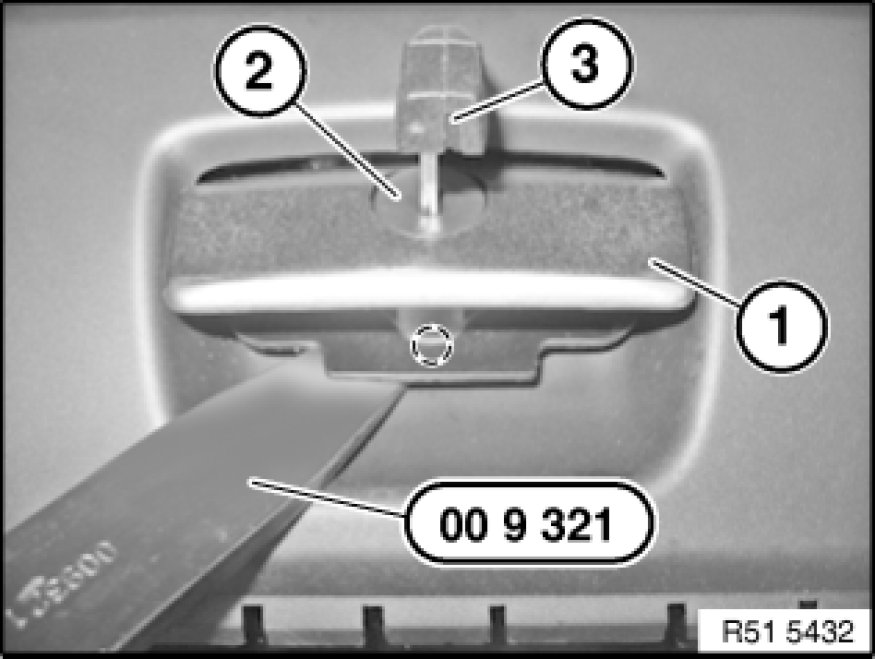

Lift handle (1) on glovebox cover.

Engage special tool 00 9 321 under handle (1) in middle on lock cylinder (2).

Press lock cylinder (2) outwards and release from catches.

Pull lock cylinder (2) with ignition key (3) out of guide.





Installation Note:

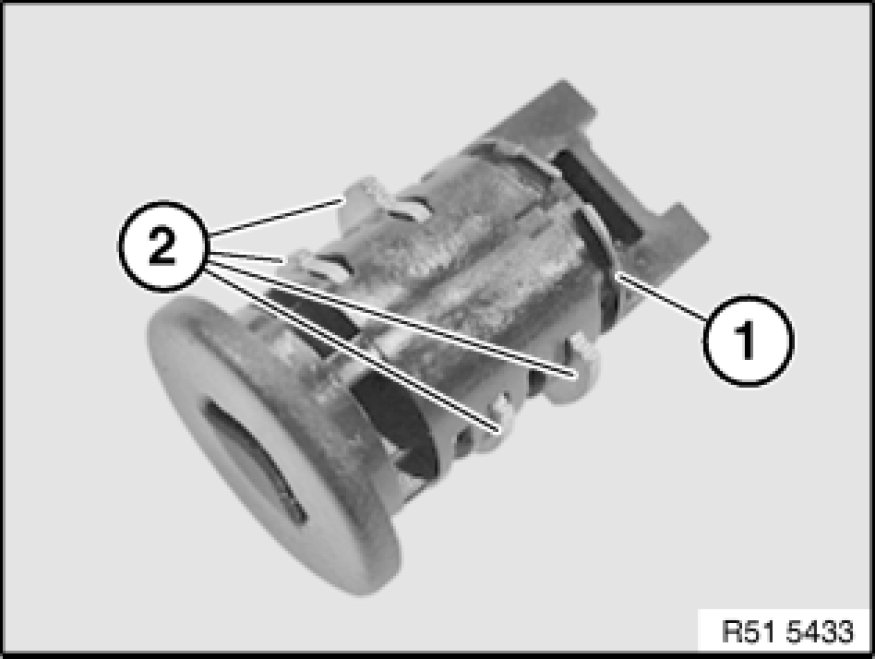

Locking rib (1) and lugs (2) must not be damaged.
