Drink Holders: Service and Repair




51 16 ... - Removing and installing/replacing mounting for cup holder at front





Necessary preliminary tasks:
- Remove storage compartment 51 16 200 Removing and Installing Storage Compartment

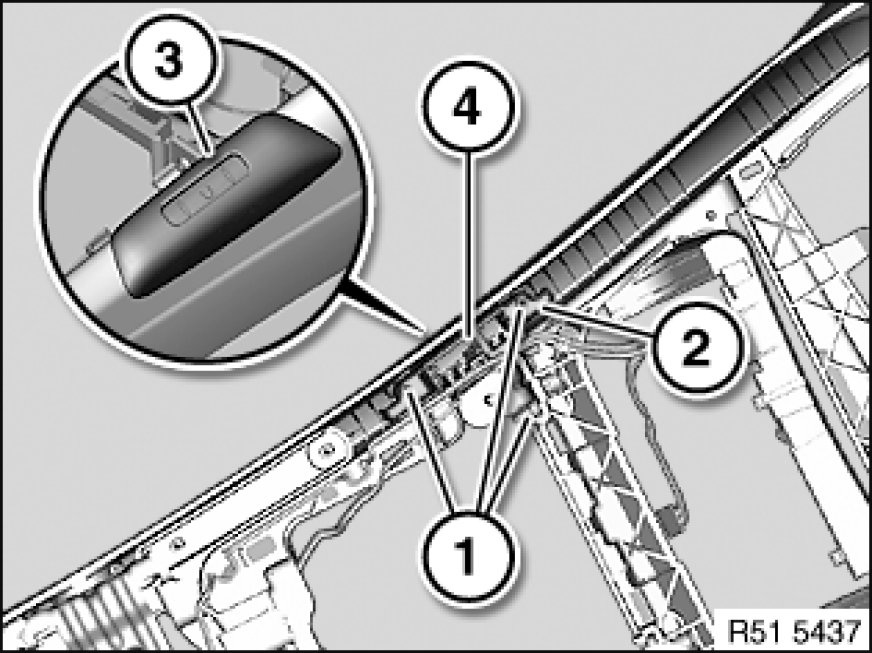

Release screws (1).
Remove holder (2) and trim (3).

Installation:
Spring (4) on holder (2) must not be damaged or missing.





Installation:

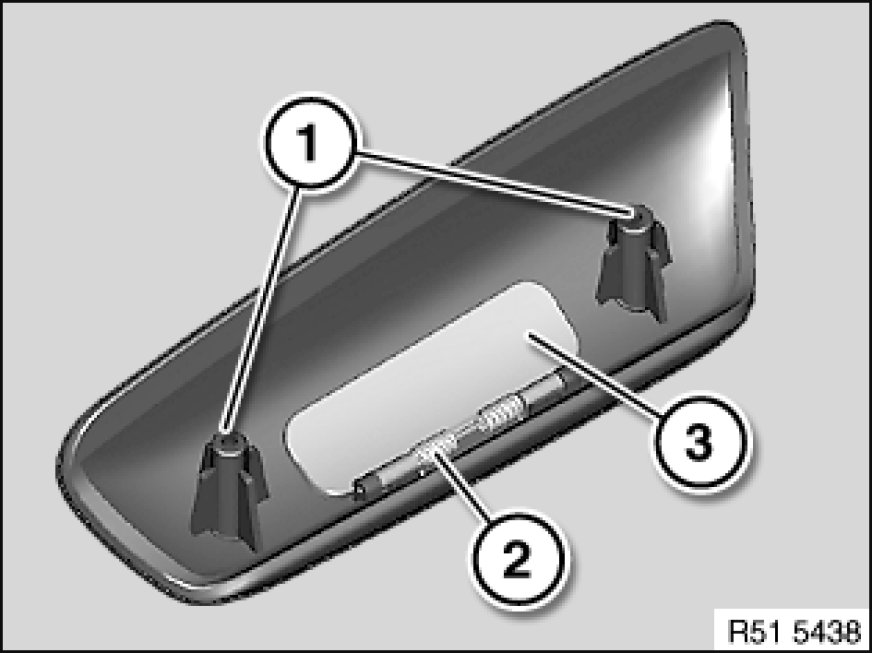

Following parts must not be damaged or missing:
1 - Screw mountings
2 - Spring
3 - Trim
