51 16 210 Removing and Installing/Replacing Trim For Selector Lever

51 16 210 Removing And Installing/Replacing Trim For Selector Lever







IMPORTANT:
- Risk of damage.
- When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.







Necessary preliminary work:
- Remove gaiter for gearshift lever
- Depending on equipment specification:
- Remove controller

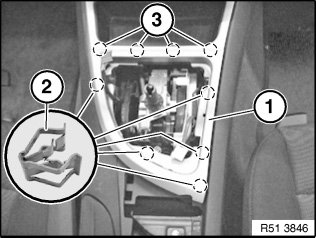

Pull trim (1) upwards and thereby release from clamps (2) and latch mechanisms (3).

Installation note:
Cables must not be jammed.

Clamps (2) and latch mechanisms (3) must not be damaged.







If replacing with controller version:

Provide trim (1) with recess (2) for controller (3).

NOTE: Recess (2) is marked on the underside of the trim (1).
