33 33 001 Replacing Left or Right Rear Axle Support Compression Strut

33 33 001 Replacing Left Or Right Rear Axle Support Compression Strut







IMPORTANT:
Observe safety instructions for raising the vehicle
Driving without compression struts is not permitted.

Risk of damage.
The rear axle support must be supported at the front if both compression struts need to be replaced.







Necessary preliminary tasks:
- Remove rear air guide. (E87, E88)
- Remove tank cover. (E84)

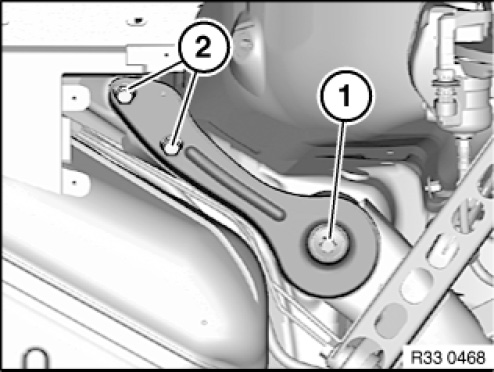

Unfasten screws (2).

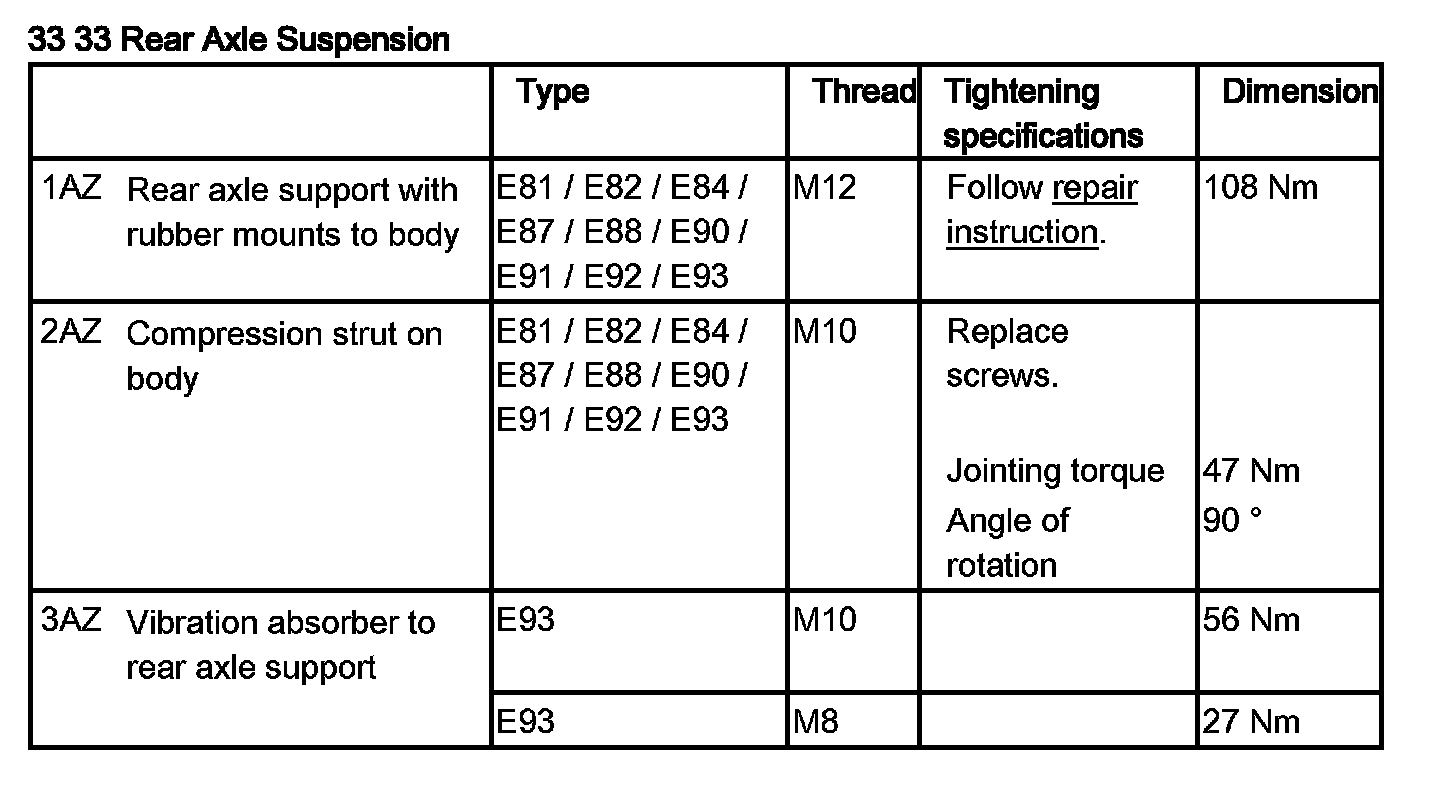

Tightening torque 33 33 2AZ

Installation note:
Replace screws.

Release screw (1) and remove compression strut.
Tightening torque 33 33 1AZ

Installation note:
Check threads for damage; if necessary, repair with Helicoil thread inserts.
