33 33 101 Replacing Two Rubber Mounts (Front) for Rear Axle Carrier

33 33 101 Replacing two rubber mounts (front) for rear axle carrier

Special tools required:





Necessary preliminary tasks:
^ Lower rear axle support

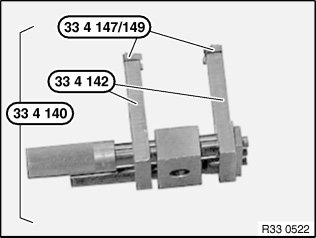

If necessary assemble special tools 33 4 140, 33 4 142 and 33 4 147 as illustrated.





If necessary screw new synchronizing keys 33 4 149 onto special tool 33 4 140 with countersunk screws





Coat top edge of rubber mount with Circo Light(R) (refer to BMW Parts Service).

Fit special tool 33 4 431 on rubber mount in such a way that edge of rubber mount disappears in special tool.

Oil special tool 33 4 436 lightly before use.

Align special tool 33 4 140 by way of openings in rubber mount.

Note:
Ensure it is correctly supported on bearing bushing of rear axle carrier.

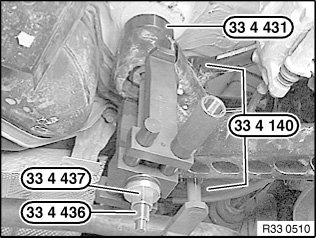

Using the special tools 33 4 436, 33 4 437, 33 4 140 and 33 4 431, pull rubber mount out of bearing bush.

Installation:
Coat new rubber mount with Circo Light(R) (refer to BMW Parts Service).

Oil special tool 33 4 434 lightly before use.

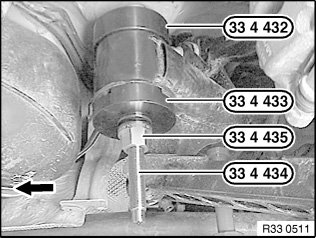

If necessary, assemble 33 4 432, 33 4 433, 33 4 435 and 33 4 434 as illustrated.





Align rubber mount by way of arrow to direction of travel.

Draw in rubber mount as far as it will go.





After installation:
^ Bleed braking system
