51 61 011 - Removing and installing/replacing V-strut, front axle carrier, left or right

51 61 011 - Removing and installing/replacing V-strut, front axle carrier, left or right





Important!
Observe safety instructions 00 .. ... Lifting Vehicle With A Lifting Platform for raising the vehicle
Driving without V-struts is not permitted!





Necessary preliminary tasks:
- Remove front underbody protection Removing and Installing/Replacing Front Underbody Protection

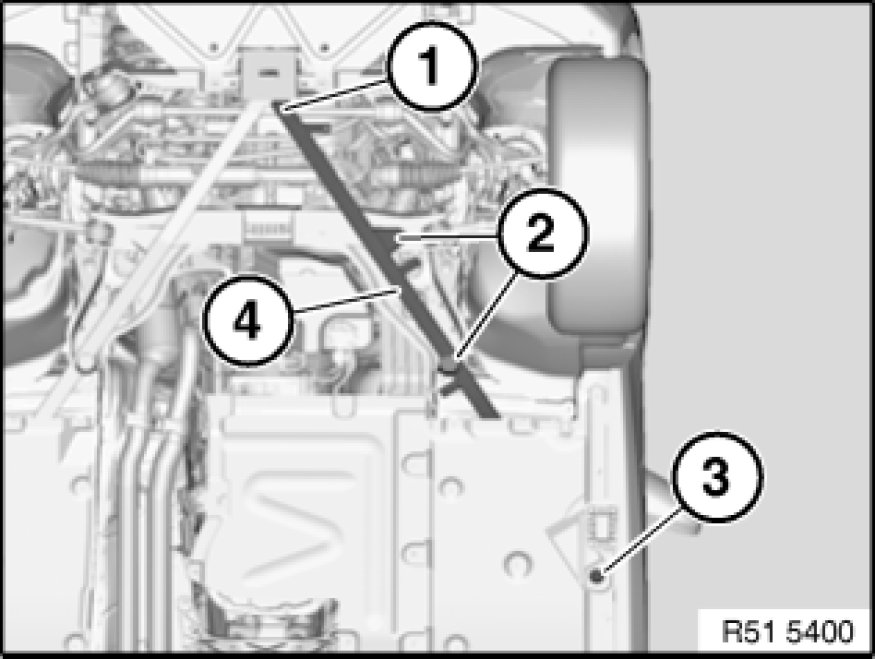

Release screws (1, 2, 3).
Remove V-strut (4) towards front.

Installation Note:
Replace screws.
Make sure screws are installed in correct positions.
- Screw (1) M12x30
- Screw (2) M10x33
- Screw (3) M12x35
Tightening torque 51 71 10AZ Specifications.
