51 61 ... - Removing and installing/replacing protecting skid/mounting bracket

51 61 ... - Removing and installing/replacing protective skid





Important!
Observe safety instructions 00 .. ... Lifting Vehicle With A Lifting Platform for raising the vehicle
Driving without the protective skid is not permitted!





Necessary preliminary tasks:
- Remove front underbody protection Removing and Installing/Replacing Front Underbody Protection

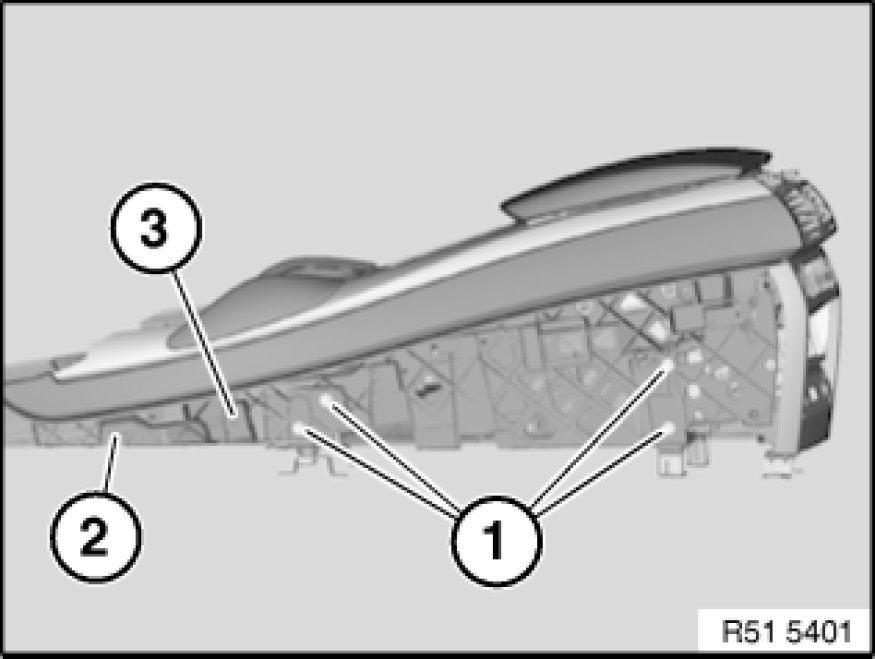

Release screws (1) and remove protective skid (2).

Installation Note:
Replace all screws.
Tightening torque 51 71 12AZ Specifications.
