51 14 110 Removing and Installing/Replacing Rear Model Designation

51 14 110 - Removing and installing/replacing rear model designation





Important!
The Instructions for number/letter combination cementing 51 14 ... Instructions For Attaching Number/Letter Designation Combination serve as the basis for these repair instructions and must be followed without fail.

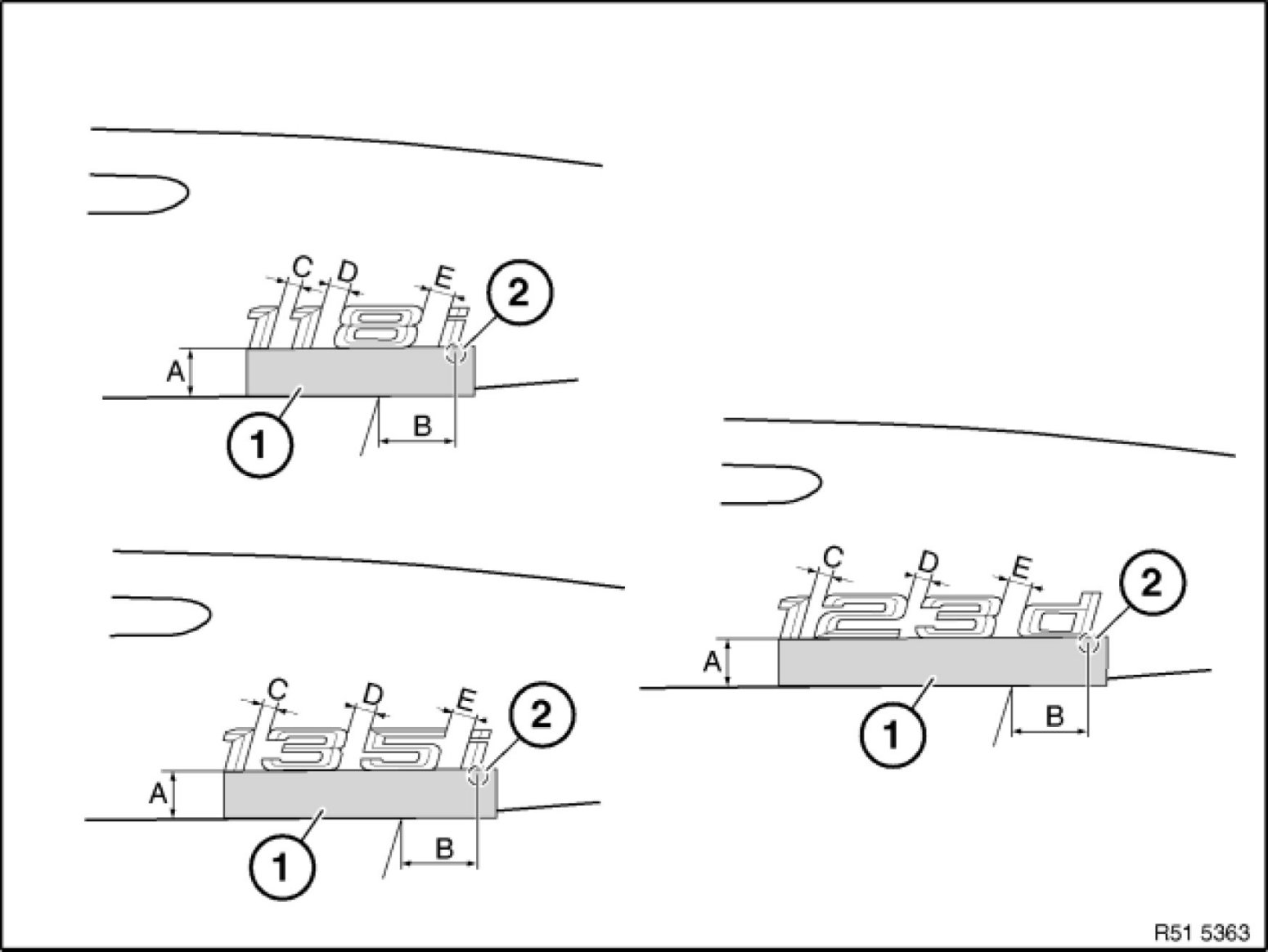

Fitting dimensions (E82/E88):





Stick on adhesive tape (1) horizontally according to dimension "A".
Mark reference point (2) according to dimension "B".

Position model designation at reference point (2) and stick on.

Dimensions:

A= - 23.5 mm
B= - 26.5 mm

Note:
Measurements C, D and E are for information purposes only, as determined by carrier film.

118 i:C = 5.5 mm, D = 8 mm, E = 16 mm

120 i...128i: C = 8 mm, D = 6.5 mm, E = 16 mm

135 i:C = 6.8 mm, D = 6.5 mm, E = 16 mm

118 d: C = 5.5 mm, D = 8 mm, E = 13.5 mm

120 d...123 d: C = 8 mm, D = 6.5 mm, E = 13.5 mm
