Trunk / Liftgate Hinge: Service and Repair

41 62 520 - Removing and installing/replacing left or right hinge for rear lid (rear lid removed)





Read contents of Body, General Service Precautions.
For stripping and rigging operations, refer to texts on KSD CD (FR number 41 62 520).

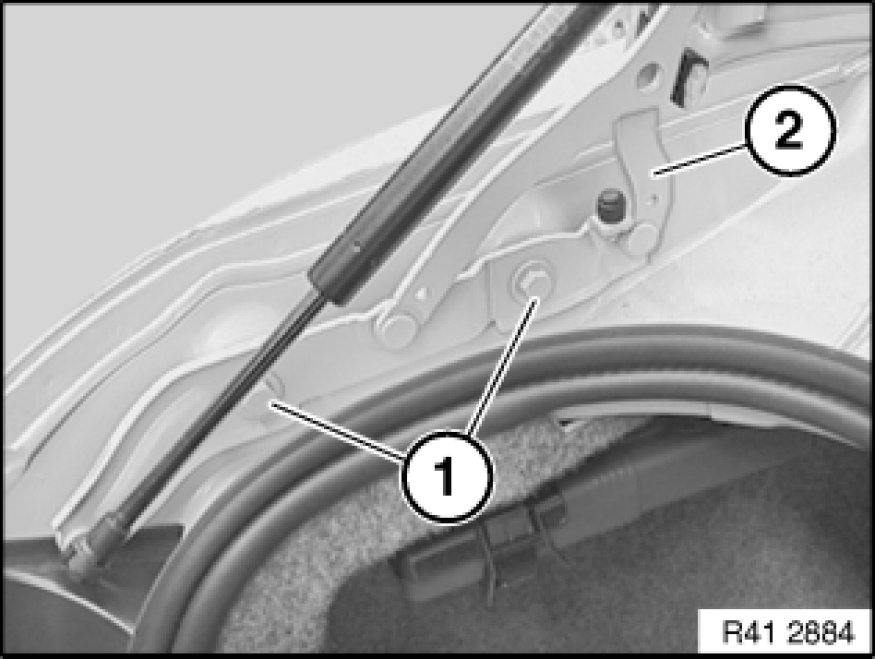

Release screws (1).
Tightening torque 41 62 3AZ [1][2][3]41 62 Rear Lid.
Remove hinge (2).
Adjust rear lid on the basis of the body gap dimensions .
Replacing hinge only:
Remove gas-filled strut Service and Repair for rear lid.
