Seal, Door Gap, Trim, B-Pillar

Grating Noise At The Door Gap Seal, B-pillar Trim Panel

Repair instruction for 'grating noise at the door gap seal, B-pillar trim panel'

To localize the noise
The adhesive tape from the previous check must not be removed.

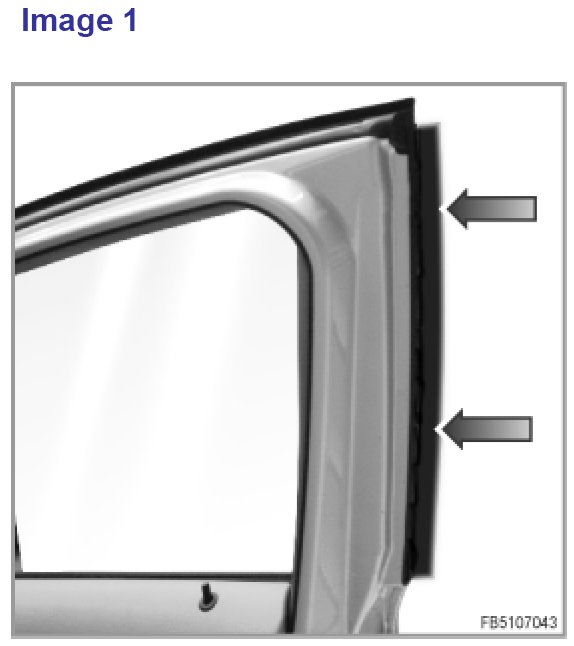

Use silicone remover to clean the trim panel of the front B-pillar and allow to air. Mask off the front B-pillar trim panel with adhesive tape. See Fig. 1.







Attach the adhesive tape around the edge of the front B-pillar trim panel.

The door gap seal should be separated from the B-pillar trim panel.
