51 11 156 Removing and Installing Front Bumper Trim

51 11 156 - Removing and installing/replacing front bumper trim (M Technic aerodynamic kit)





Special tools required:





Necessary preliminary tasks:
- Remove cover for headlight washer system Removing and Installing/Replacing Front Cover for Headlight Washer System on Left or Right (M Technic Aerodynamic Kit)





Note:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

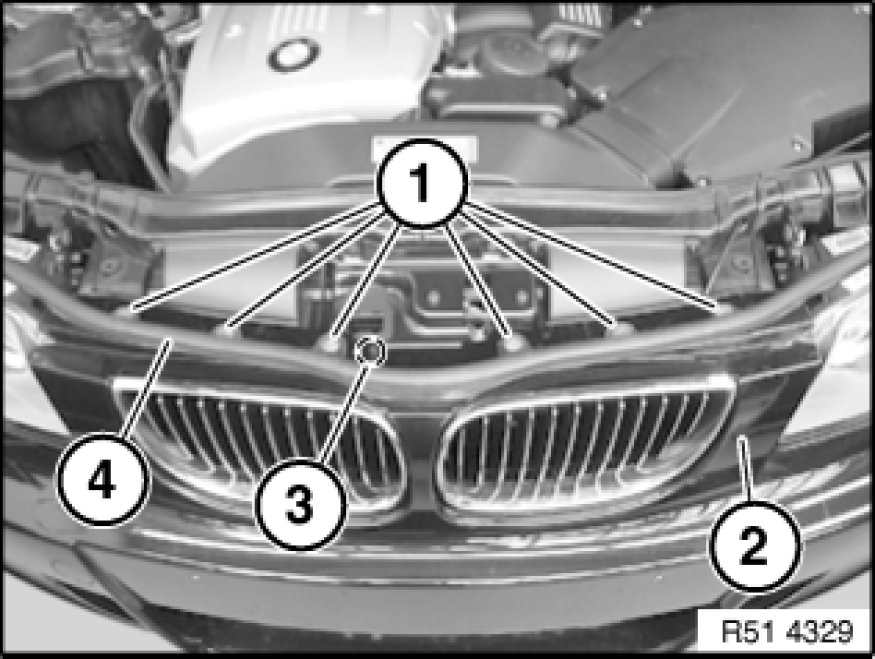

Detach seal (4) in covered area of bumper trim (2).
Release screws (1) on bumper trim (2).
Lift bumper trim (2) over guide (3).

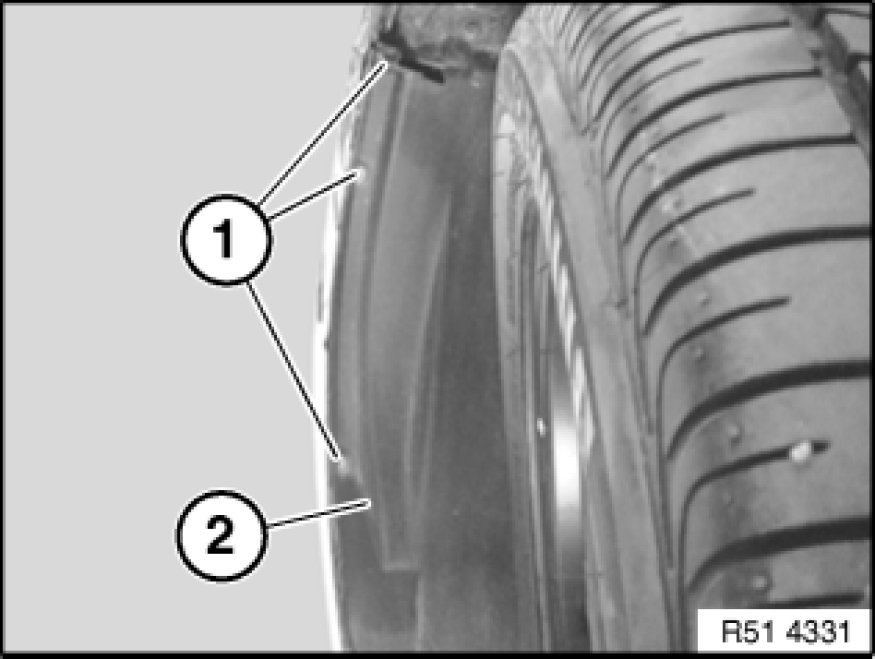

Release screws (1) on wheel arch trim (2) on both sides.
Lift out wheel arch trim (2) at side.

Installation:
Make sure wheel arch trim (2) is in correct position.

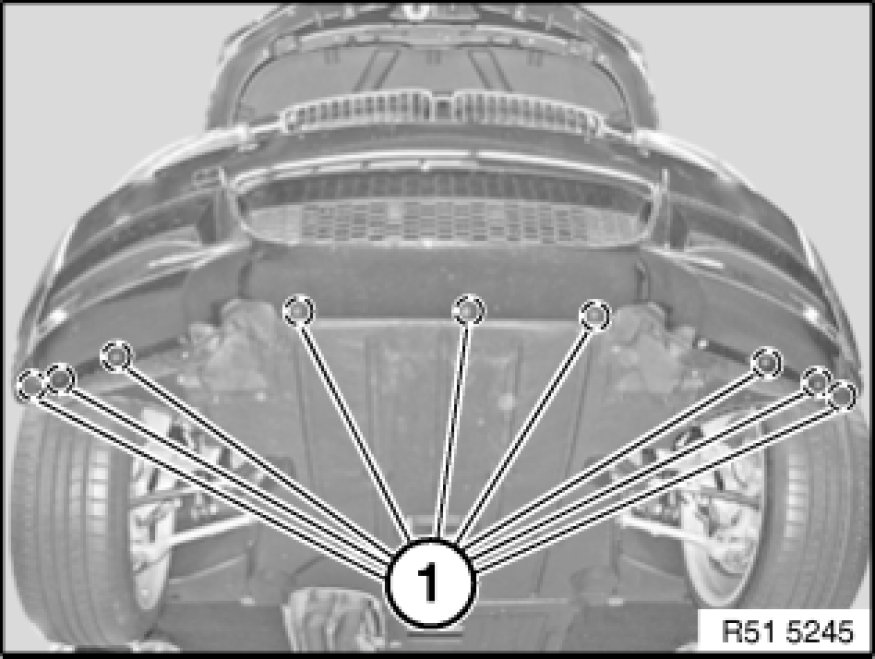

Release screws (1).





Important!
Do not damage bumper trim when pulling off.

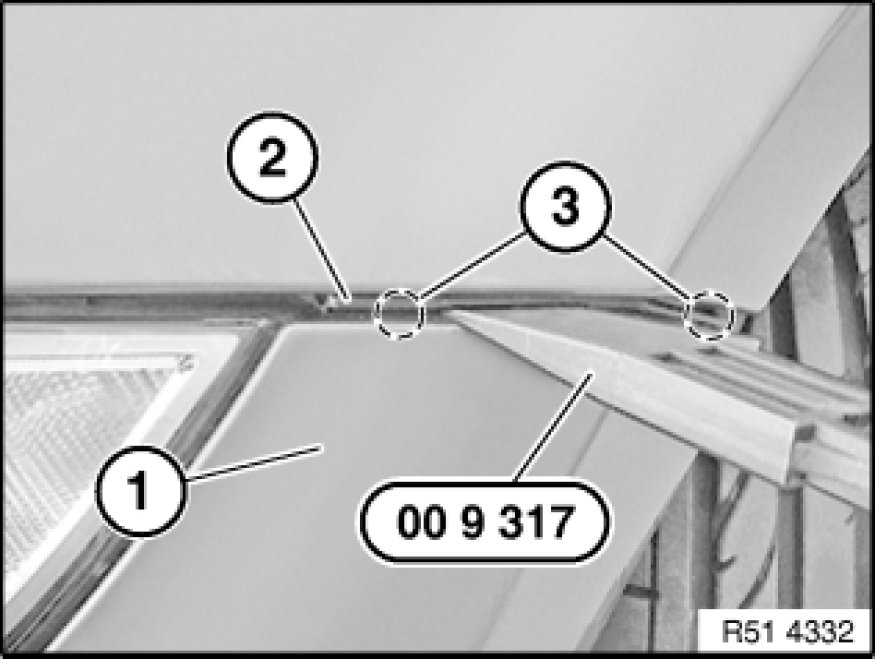

Slide special tool 00 9 317 between bumper trim (1) and bracket (2).
Release catches in area (3) and lever out bumper trim (1) in outward direction.
Pull bumper trim (1) forwards a little.
If necessary, disconnect plug connections on ultrasonic sensors/front fog lamps.
Remove bumper trim (1) towards front with aid of a 2nd person.





Installation:

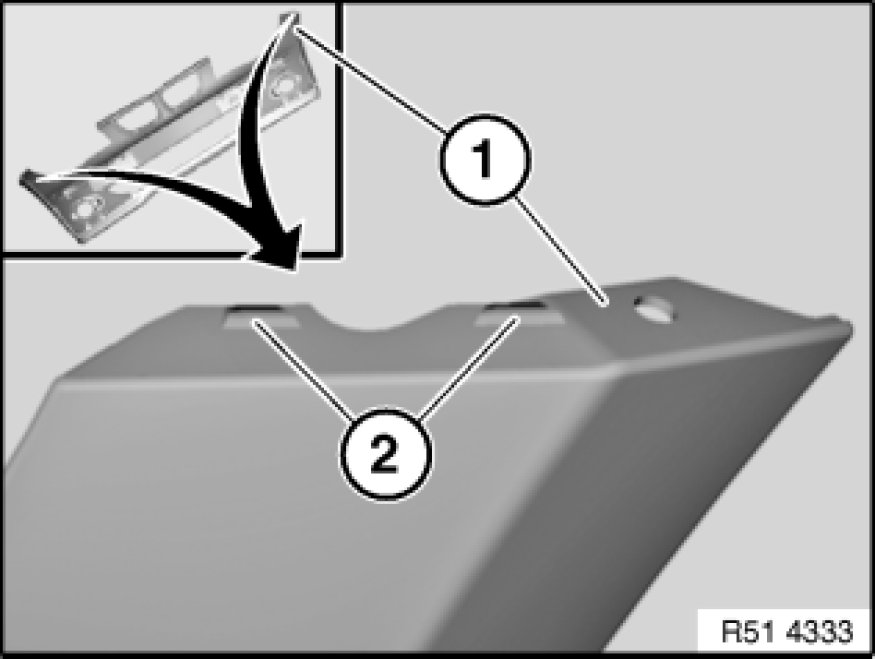

Catches (2) of bumper trim (1) must not be damaged.

If necessary, carry out height adjustment, refer to Gap dimensions, body .





Replacement:
- Modify middle front radiator grille 51 13 001 Removing and Installing/Replacing Front Radiator Grille, Middle Left or Right
- Modify trim grille in bumper trim
- Modify trim grille in bumper trim on left/right
- Modify ultrasonic converter 66 20 520 Removing and Installing/Replacing an Ultrasonic Transducer at Front (Inside) (Park Distance Control)
- Modify towing eye cover
Version with fog lamps:
- Modify fog lamps on left/right 63 17 050 Removing and Installing/Replacing Left or Right Front Fog Lamp (M-Package/Aerodynamics Package)
