61 31 133 Removing and Installing/Replacing AV Connection Socket

61 31 133 - Removing and installing/replacing AV connection socket





Special tools required:





Partially fit special tool 00 9 317 as illustrated.

Lever trim (1) in direction of arrow out of storage compartment (2).

Disconnect associated plug connections and remove trim (1).

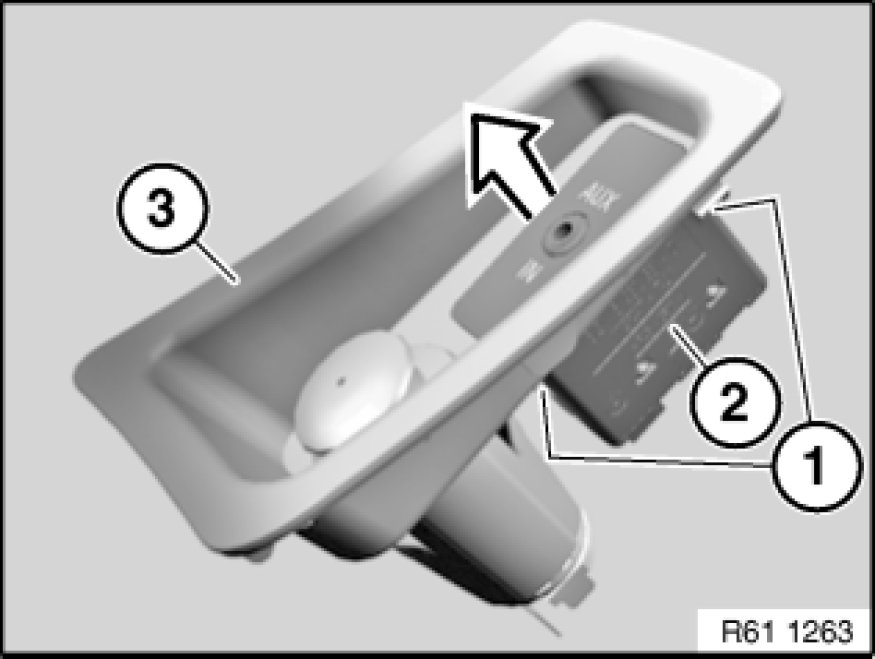

Press in catches (1) and remove AV connection socket (2) in direction of arrow from trim (3).
