N38A Audio System Controller/Car Communication Computer (CCC/M-Ask) (As of 09/07)



N38A CCC/M-ASK

N38A Audio System Controller/Car Communication Computer (CCC/M-Ask) (As of 2007_09)

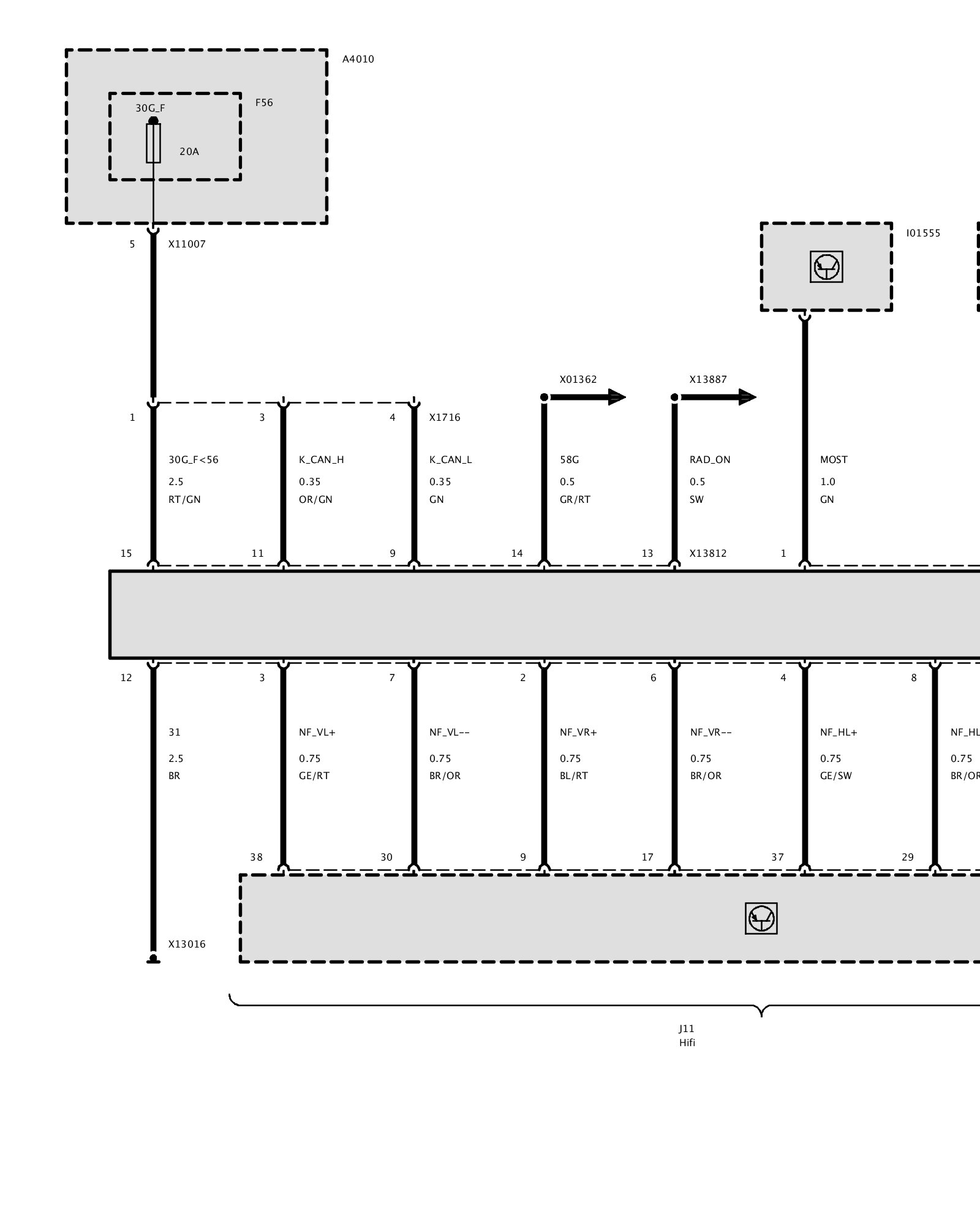

Part 1:

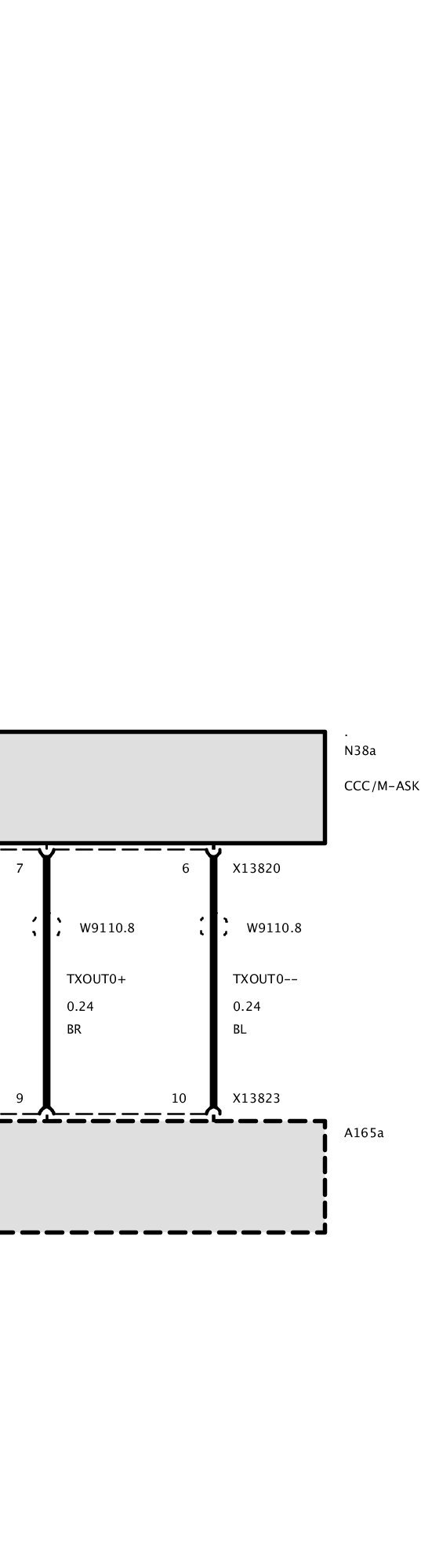

Part 2:

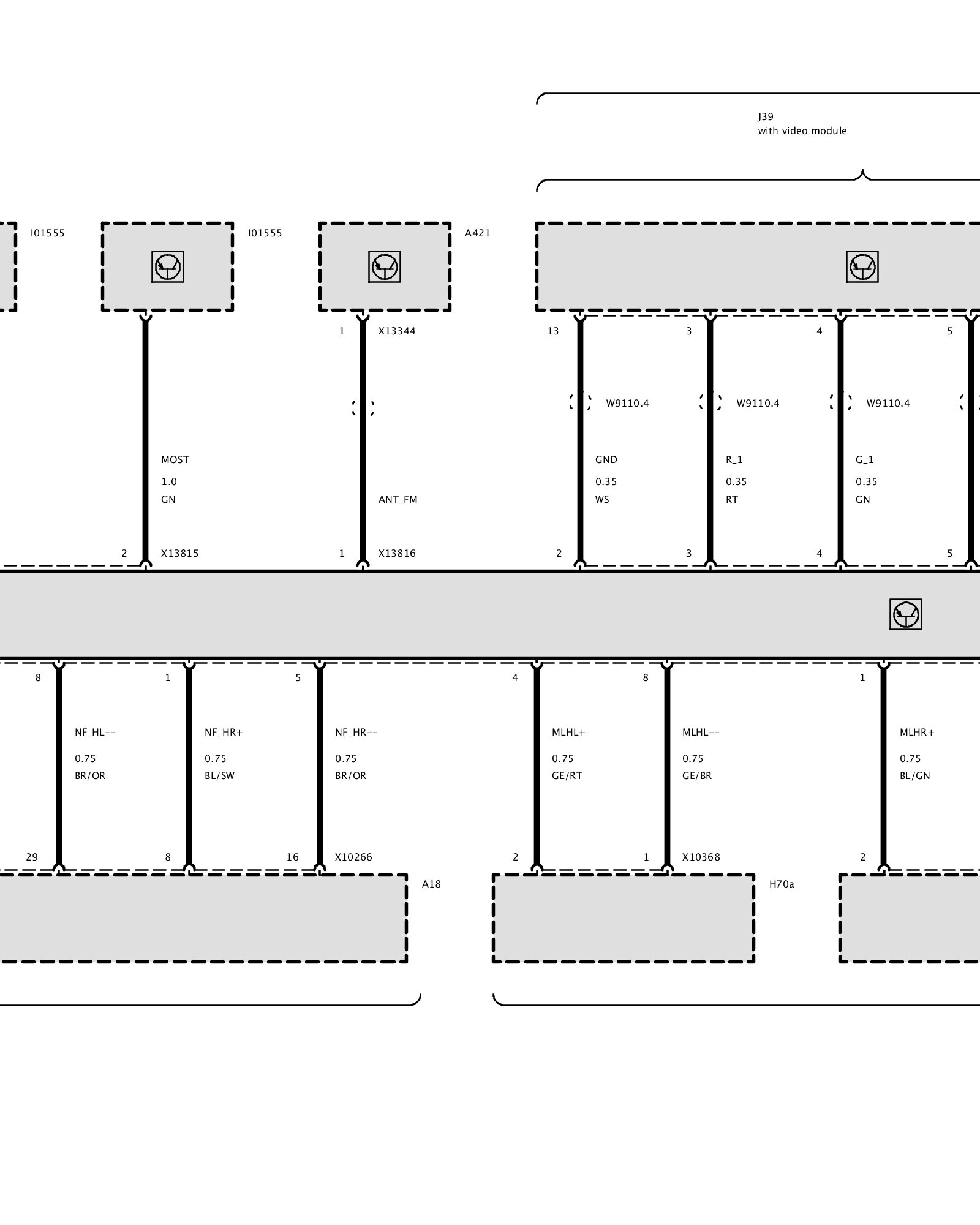

Part 3:

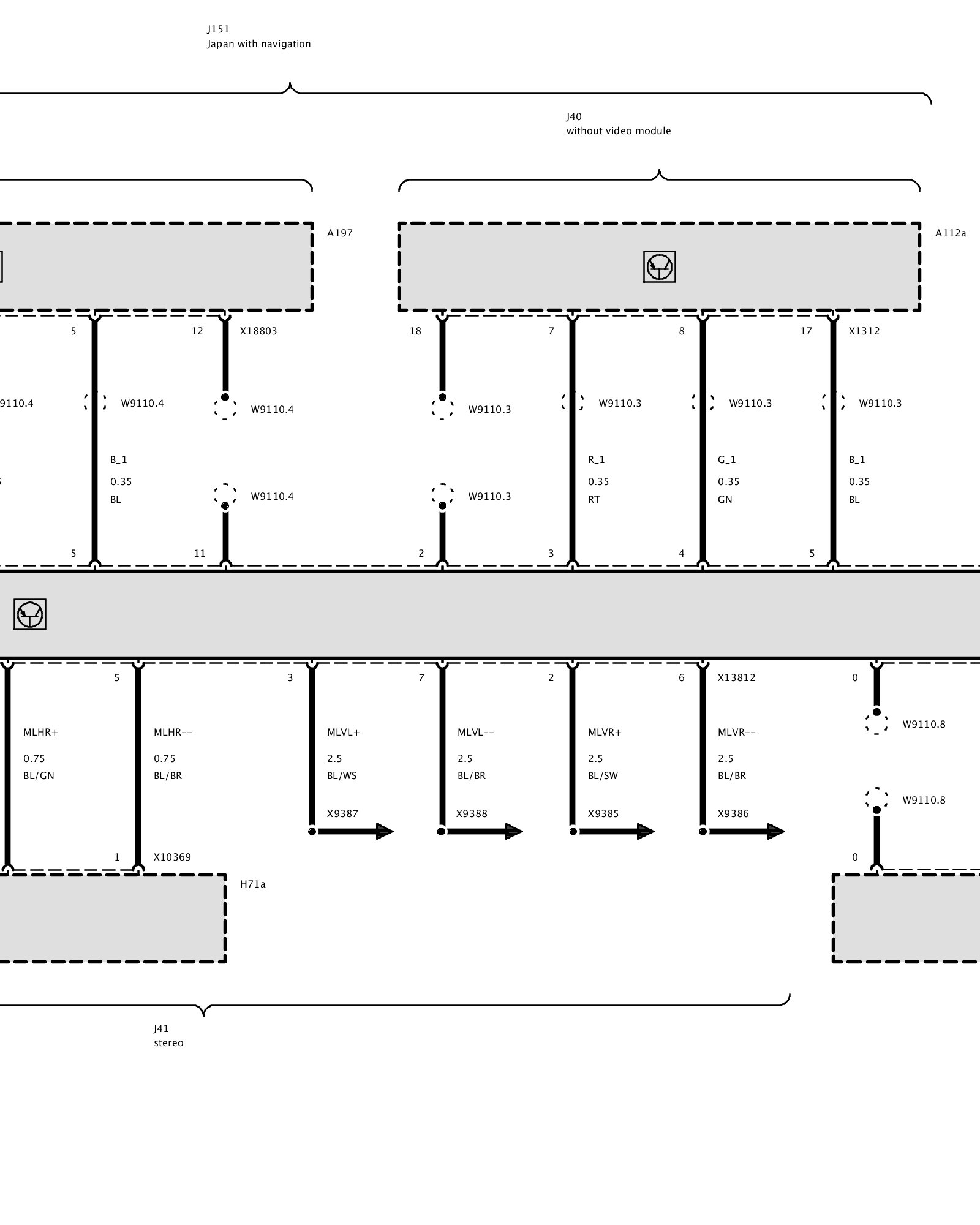

Part 4:




Part 5:
