84 11 519 Removing and Installing/Replacing Eject Box

84 11 519 Removing And Installing Or Replacing Eject Box

Special tools required:







Necessary preliminary tasks:
- Remove trim on storage compartment at rear

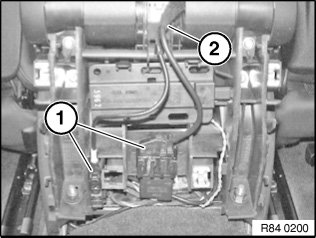

Disconnect plug connection (1).

Installation:
Ensure correct cable routing (2).

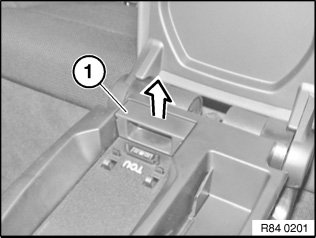

Remove cover (1) in direction of arrow.

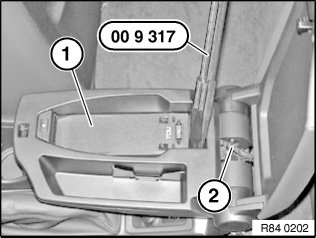

Lift eject box (1) with special tool 00 9 317 out of centre armrest.

Feed out line (2) and remove eject box (1).

Installation:
Ensure correct cable routing.
