Filler Pieces, Seal, Roof Cross-Member, Front

Filler Pieces For Front Roof Bow Seal

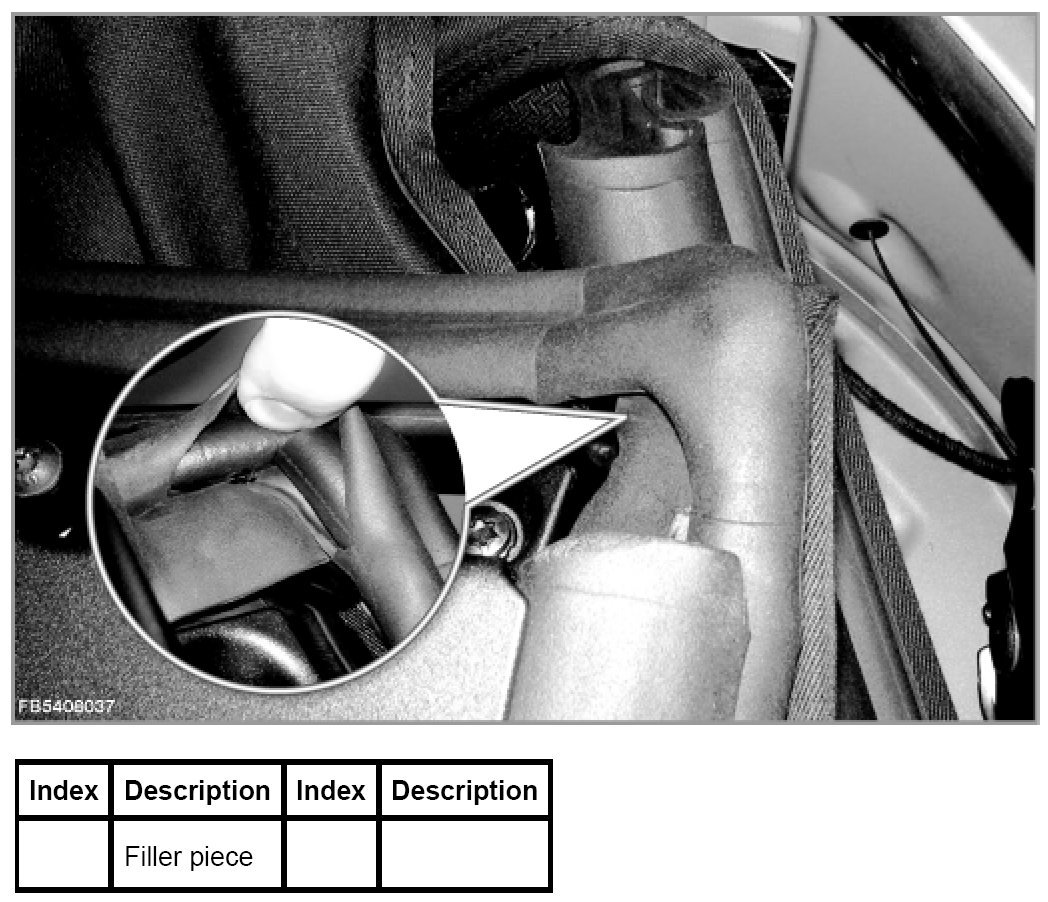

Filler pieces in front roof bow seal
Open the convertible top until the convertible top cover starts to close.

Check the correct location of the filler pieces in the corners of the seal of the front roof bow.

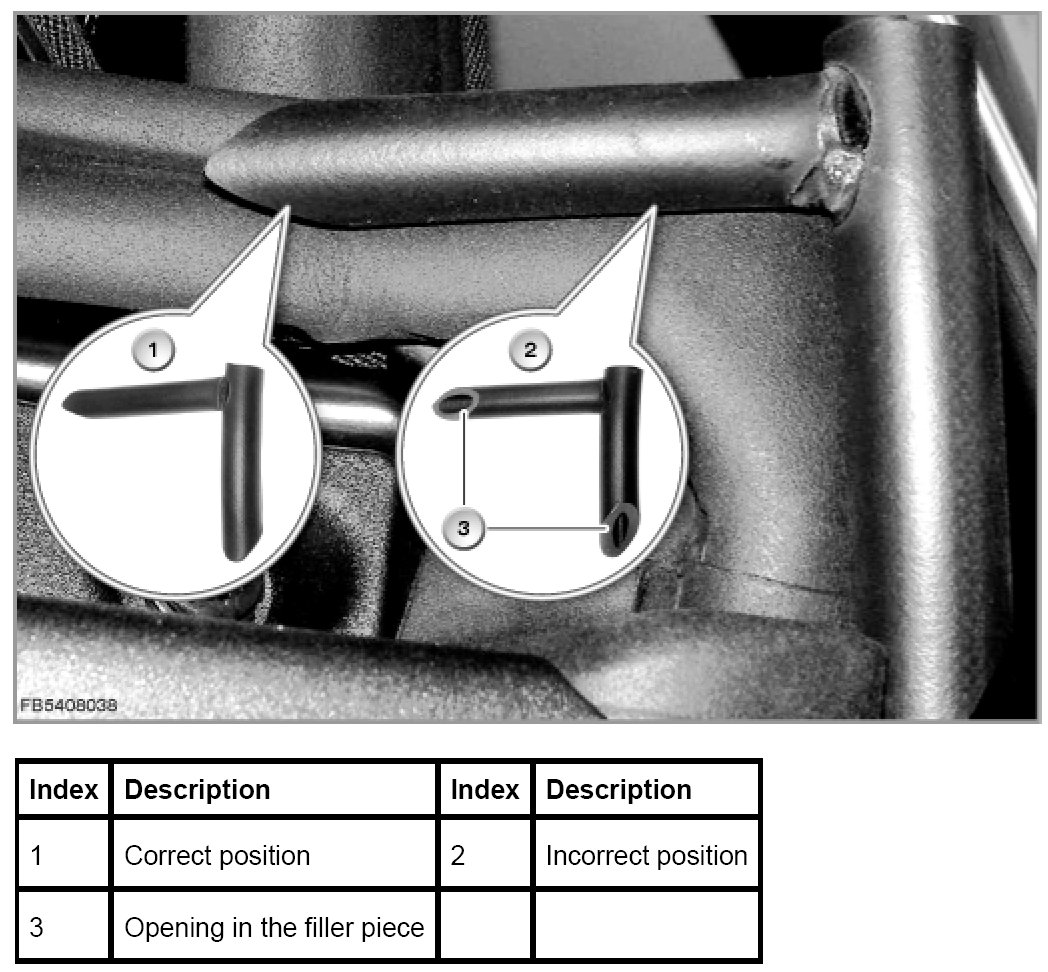

If a filler piece is in the incorrect position, opening 3 in the filler piece can be felt.
