Removing and Installing/Replacing Rear Luggage Compartment Antenna for Comfort Access System

61 35 970 Removing And Installing/replacing Rear Luggage Compartment Antenna For Comfort Access System







Necessary preliminary tasks:
- Remove luggage compartment floor trim panel.

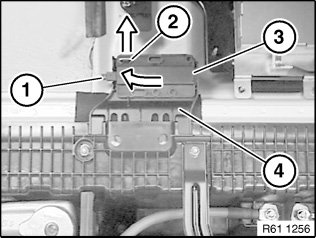

Disconnect plug connection (1).

Unlock catches (2) and remove luggage compartment antenna for comfort access system (3) in direction of arrow from holder (4).
